SPLASH

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.111 FRONT HOOD PANEL (TYPE 1)FIG.112 FRONT HOOD PANEL (TYPE 2)FIG.113 FRONT FENDER FIG.114 FRONT BODY PANEL (TYPE 1)FIG.115 FRONT BODY PANEL (TYPE 2)FIG.116 FLOOR PANEL FIG.117 SIDE BODY PANEL FIG.118 ROOF PANEL FIG.119 FRONT BUMPER (TYPE 1)FIG.120 FRONT BUMPER (TYPE 2)FIG.121 REAR BUMPER FIG.122 INSTRUMENT PANEL FIG.123 VENTILATOR FIG.124 HEATER UNIT FIG.125 HEATER UNIT (FROM 2012-11)FIG.126 HEATER CONTROL FIG.127 CONSOLE BOX FIG.128 FLOOR CARPET FIG.129 INTERIOR TRIM FIG.130 COVER/CAP FIG.131 FUEL LID OPENER FIG.132 ROOF LINING FIG.133 ROOF MOLDING/GARNISH FIG.134 EMBLEM FIG.135 WINDSHIELD GLASS FIG.136 FRONT DOOR PANEL FIG.137 FRONT DOOR REGULATOR FIG.138 FRONT DOOR LOCK FIG.139 REAR DOOR PANEL FIG.140 REAR DOOR REGULATOR FIG.141 REAR DOOR LOCK FIG.142 BACK DOOR PANEL FIG.143 BACK DOOR LOCK FIG.144 MIRROR/SUNVISOR (TYPE 1)FIG.145 MIRROR/SUNVISOR (TYPE 2)FIG.146 SEAT BELT FIG.147 FRONT SEAT FIG.148 REAR SEAT FIG.149 FUEL TANK (TYPE 1)FIG.150 FUEL TANK (TYPE 2)FIG.151 TOOL FIG.152 AIR CONDITIONER (TYPE 1)FIG.153 AIR CONDITIONER (TYPE 2)FIG.154 COMPRESSOR

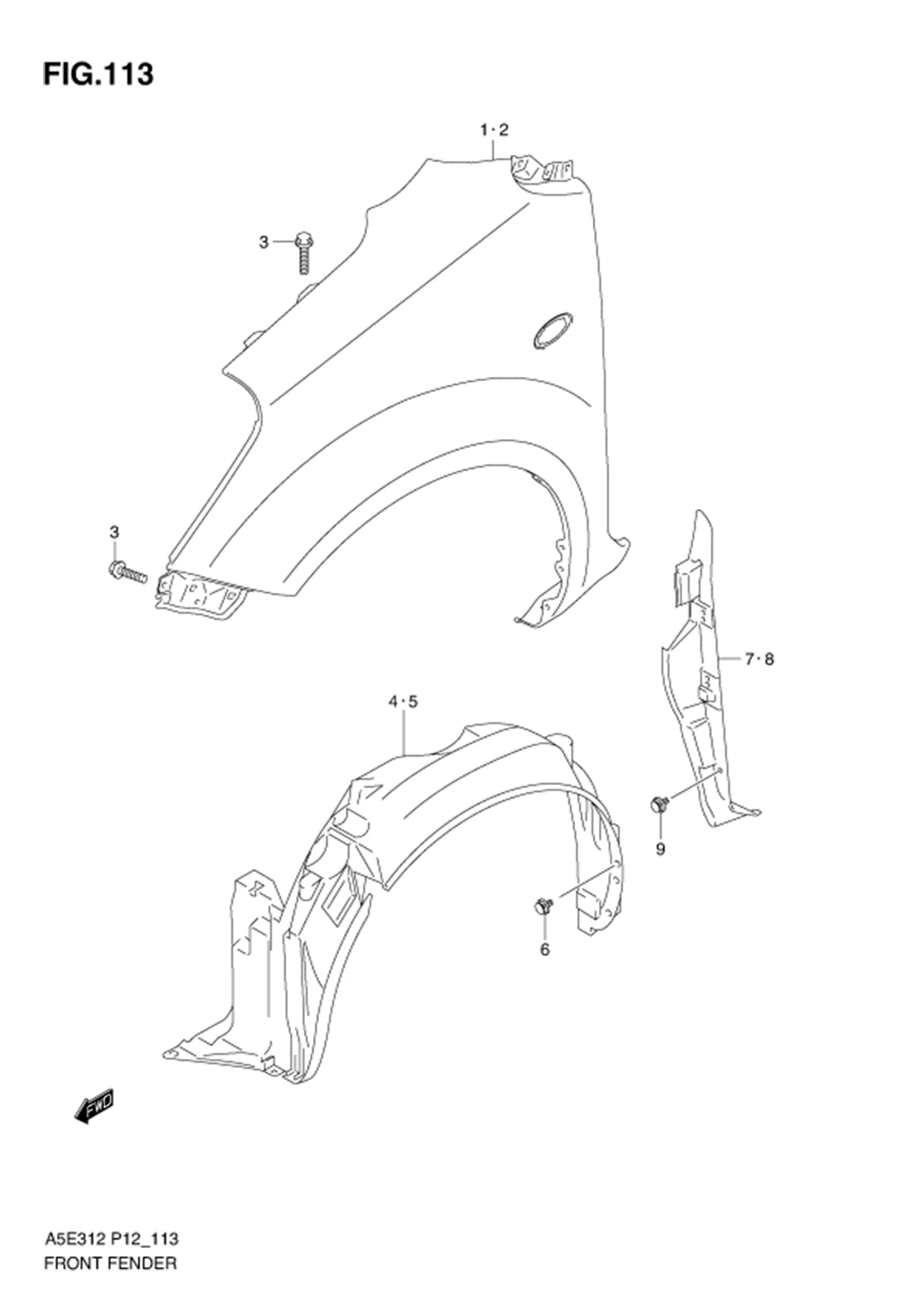

FIG.113 FRONT FENDER

FIG.113 FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57611M83K00-000	PANEL,FRONT FENDER RH	1	Rp694.500
2	57711M83K00-000	PANEL,FRONT FENDER LH	1	Rp694.500
3	DISCONTINUE SUB: 01550B0612AN000	BOLT	14	-
4	72321M83K00-000	LINING,FR FENDER RH	1	Rp207.000
5	72322M83K00-000	LINING,FR FENDER LH	1	Rp207.000
6	09409M07L01-000	CLIP	22	Rp5.000
7	72351M51K00-000	COVER,FR FENDER RH	1	Rp80.000
8	72352M83K00-000	COVER,FR FENDER LH	1	Rp80.000
9	09409M07L01-000	CLIP	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
