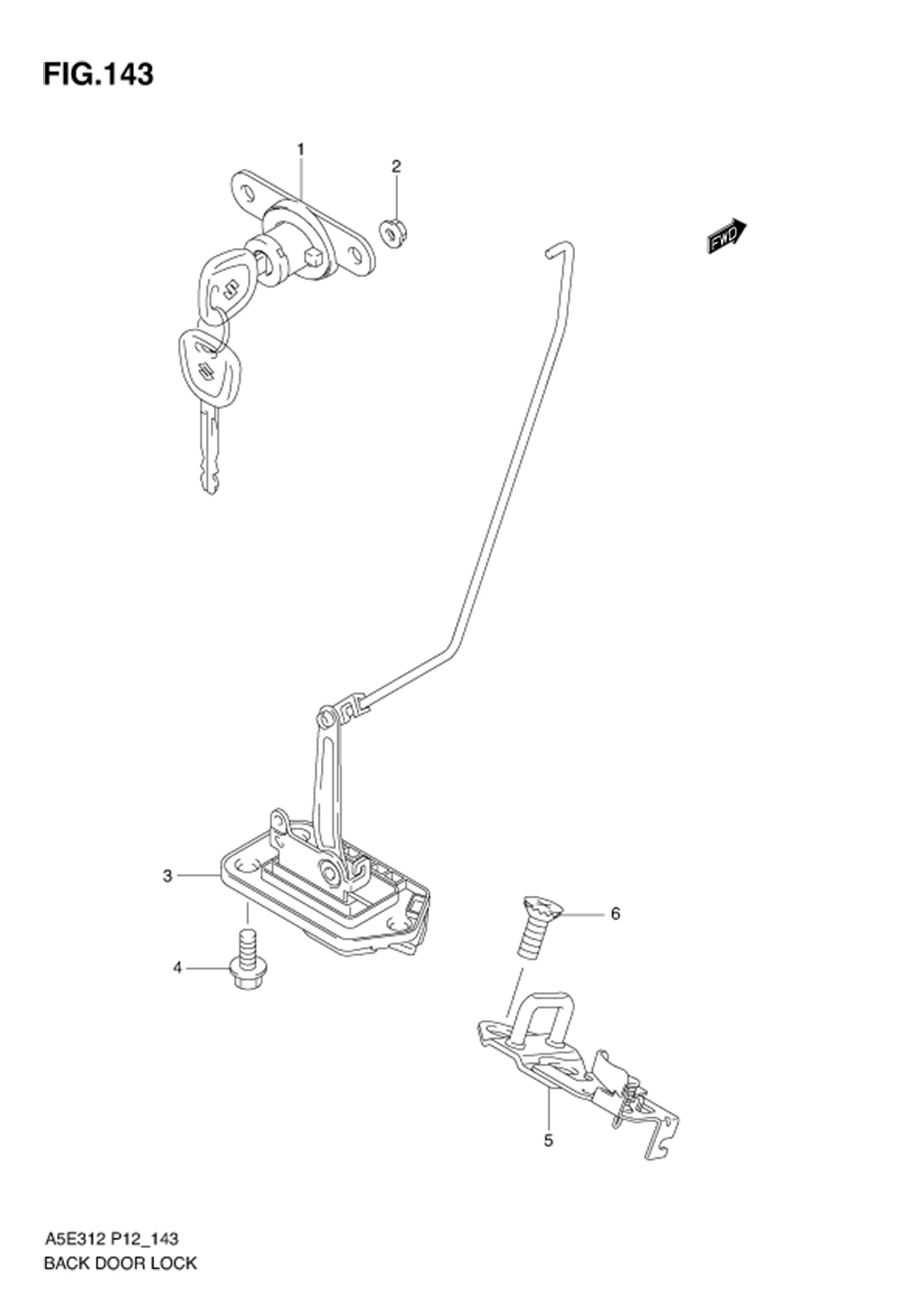

FIG.143 BACK DOOR LOCK

FIG.143 BACK DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82504M83K00-000 SUB: 82500M83850-000	CYLINDER,BACK DOOR	1	Rp282.500
2	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
3	82510M83K00-000	LATCH ASSY,BACK DOOR	1	Rp259.500
4	02162-0616A-000	SCREW	3	Rp3.000
5	82650M75J00-000	STRIKER,BACK DOOR LATCH	1	Rp61.500
6	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	2	Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
