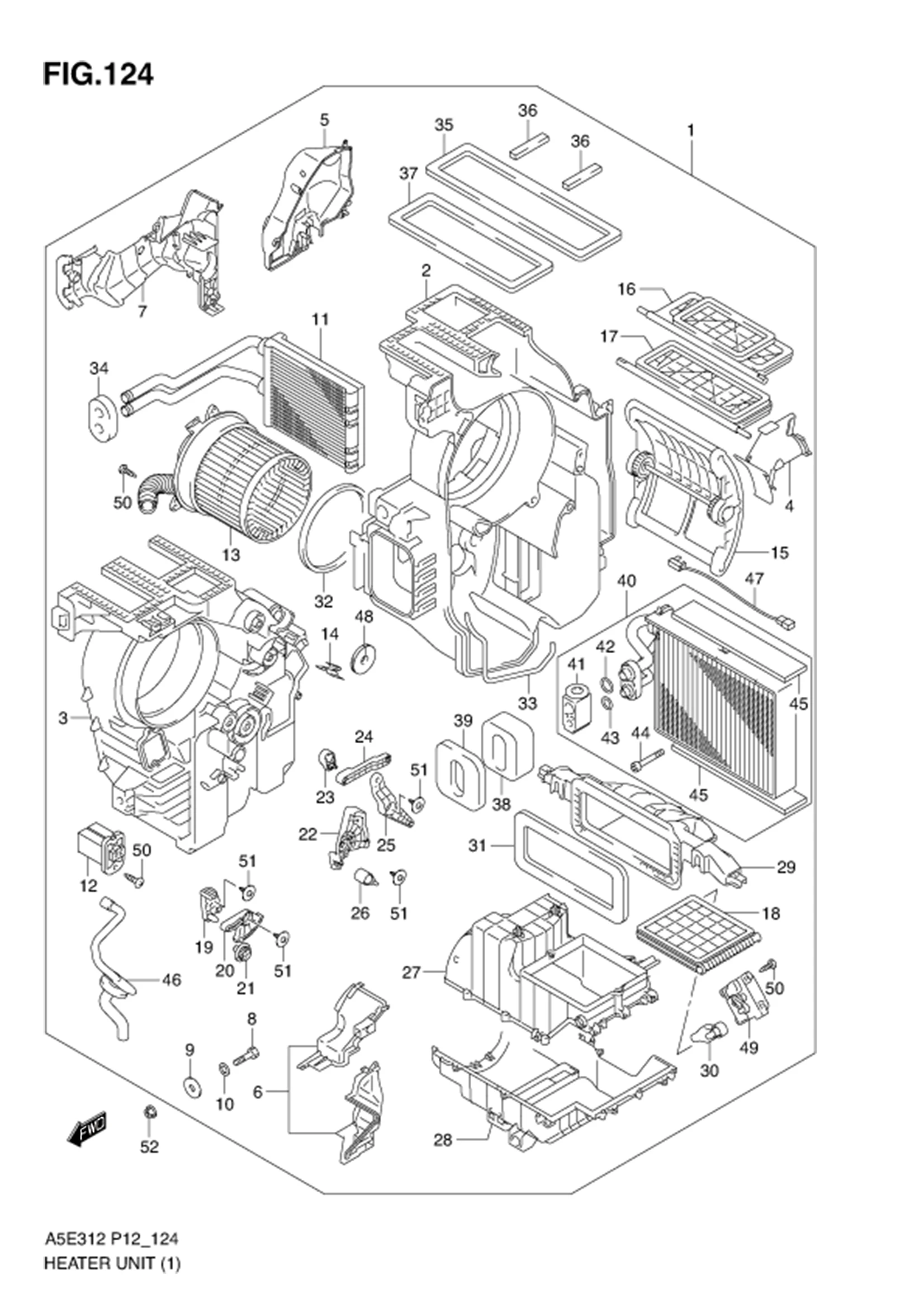

FIG.124 HEATER UNIT

No	No. Part	Description	Qty	Price Per Pcs
1	74100M83K42-000	HEATER UNIT	1	Rp8.591.500
2	74111M83K40-000	•CASE,HEATER RH	1	Rp245.000
3	74112M83K40-000	•CASE,HEATER LH	1	Rp232.500
4	74113M83K00-000	•GUIDE,AIR MIX	1	Rp15.000
5	74114M83K00-000	•DUCT,FOOT B	1	Rp30.500
6	74115M83K00-000	•DUCT,FOOT A	1	Rp43.500
7	74116M83K00-000	•COVER,HIGH PRESS PIPE	1	Rp48.000
8	74117M51K00-000	•BOLT,MOUNTING	4	Rp15.000
9	74118M51K00-000	•PACKING,STUD BOLT	4	Rp22.500
10	74119M51K00-000	•WASHER	4	Rp7.500
11	74120M83K00-000	•HEATER CORE ASSY	1	Rp1.061.500
12	74140M51K01-000	•RESISTER,HVAC	1	Rp242.500
13	74150M83K00-000	•BLOWER ASSY	1	Rp1.301.500
14	74151M51K00-000	•CLAMP	2	Rp15.000
15	74171M51K00-000	•DOOR ASSY,SLIDE	1	Rp396.500
16	74172M51K00-000	•DOOR ASSY,VENT/DEF	1	Rp90.000
17	74173M51K00-000	•DOOR ASSY,FOOT	1	Rp96.000
18	74174M51K00-000	•DOOR ASSY,INTAKE	1	Rp106.500
19	74192M51K00-000	•LINK MIX	1	Rp12.500
20	74193M51K00-000	•LEVER,MIX	1	Rp15.000
21	74191M51K00-000	•GEAR,MIX	1	Rp10.500
22	74181M83K00-000 SUB: 74181M51K00-000	•LEVER,MAIN	1	Rp12.500
23	74184M51K00-000	•LEVER,VENT	1	Rp7.500
24	74183M51K00-000	•LINK,VENT 1	1	Rp13.500
25	74182M51K00-000	•LINK,VENT 2	1	Rp16.000
26	74185M51K00-000	•LINK,FOOT	1	Rp7.500
27	74212M83K00-000	•CASE,SHUTTER BOX UPPER	1	Rp89.500
28	74211M83K00-000	•CASE,SHUTTER BOX LOWER	1	Rp70.500
29	74213M83K00-000	•CASE,DUCT INLET	1	Rp84.500
30	74221M51K00-000	•LEVER,INTAKE	1	Rp10.000
31	74241M83K00-000	•PACKING,SHUTTER BOX	1	Rp27.000
32	74242M83K00-000	•PACKING,INTAKE	1	Rp13.500
33	74243M51K00-000	•PACKING,CASE	1	Rp30.500
34	74244M83K00-000	•PACKING,DASH PANEL	1	Rp13.500
35	74246M83K00-000	•PACKING,VENT/DEF NO.1	1	Rp21.000
36	74247M83K00-000	•PACKING,VENT/DEF NO.2	2	Rp6.500
37	74248M83K00-000	•PACKING,VENT/DEF NO.3	1	Rp14.000
38	74252M83K00-000	•GROMMET,EXPANSION VALVE	1	Rp54.500
39	74253M51K00-000	•PACKING,DASH THERMO EXPANSION VALVE	1	Rp34.500
40	95410M83K01-000	•EVAPORATOR ASSY	1	-
41	95431M51K00-000	••VALVE ASSY,EXPANSION	1	Rp536.500
42	95419M51K00-000	••O RING,UPPER	2	Rp16.000
43	95418M51K00-000	••O RING,LOWER	2	Rp6.500
44	95417M51K00-000	••BOLT (5X35)	2	Rp15.000
45	95423M83K00-000	••PACKING,EVAPO INSULATOR TANK	2	Rp34.000
46	95481M83K00-000	•HOSE,DRAIN	1	Rp165.500
47	95541M51K00-000	•SENSOR ASSY,INTAKE	1	Rp135.500
48	95542M51K00-000	•GROMMET,THERMISTOR	1	Rp13.000
49	95652M51K00-000	•ACTUATOR,INTAKE	1	Rp570.000
50	95654M51K00-000	•SCREW,TAPPING	27	Rp61.000
51	95655M51K00-000	•SCREW,TAPPING	4	Rp12.500
52	08361M2506A-000	NUT	4	Rp7.000
