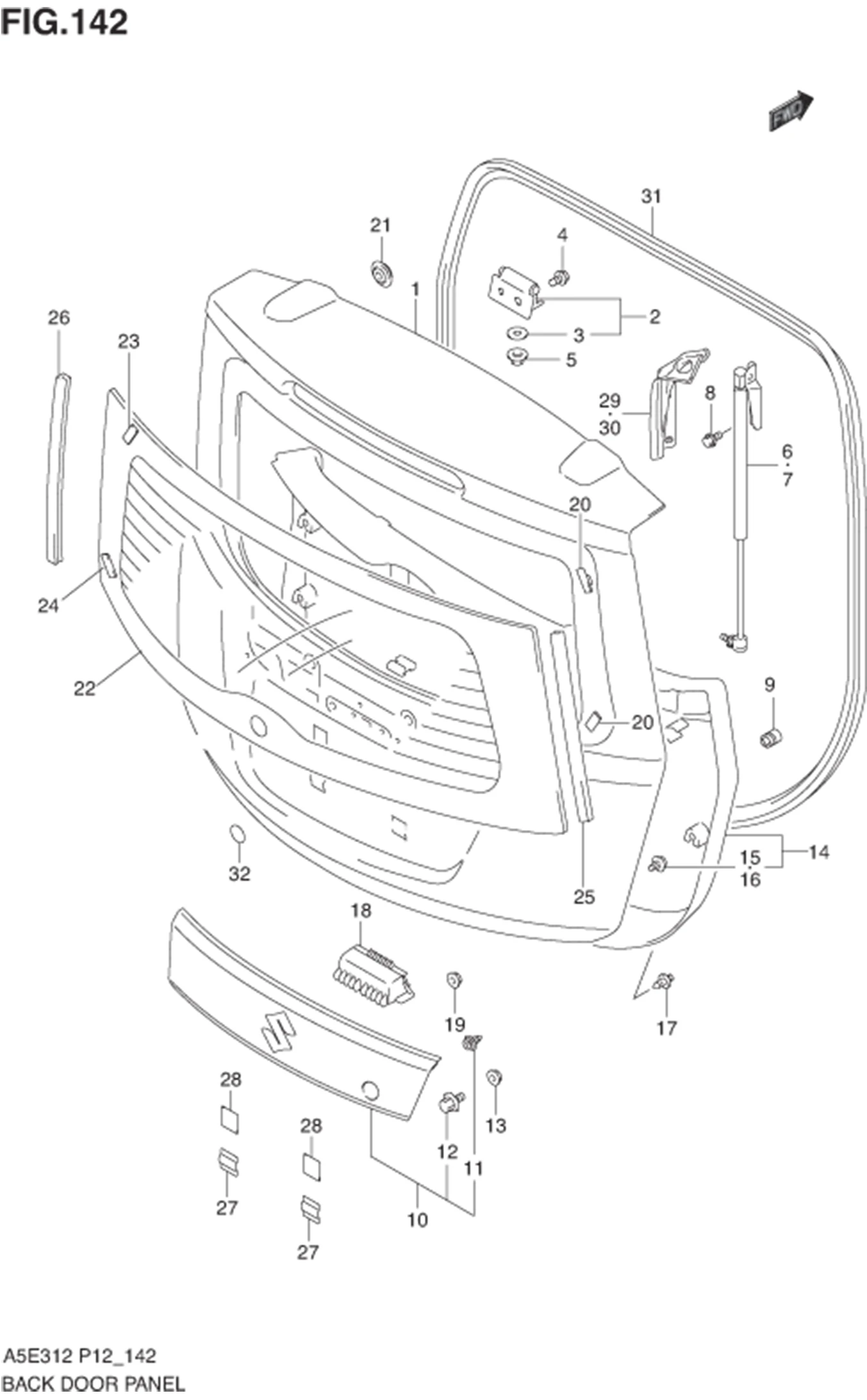

FIG.142 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100M83K00-000	PANEL ASSY,BACK DOOR	1	Rp2.675.500
2	69510-51K00-000 SUB: 69510M51K00-000	HINGE,BACK DOOR	2	Rp127.000
3	69571M76G00-000	•PACKING,BACK DOOR HINGE	2	Rp6.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M83K00-000 SUB: 81850M83811-000	BALANCER,BACK DOOR RH	1	Rp240.500
7	81860M83811-000	BALANCER,BACK DOOR LH	1	-
8	01551-0812C-000	BOLT	4	Rp19.000
9	82683M60B00-000	CUSHION,BACK DOOR SIDE	2	Rp8.500
10	83940M83K00-000	GARNISH,DOOR HANDLE	1	Rp182.500	TYPE 1,TYPE 2
11	71812-78F00-000 SUB: 71812B78F00N000	•CLIP	5	Rp9.000
12	09108-06100-000	•STUD BOLT	4	Rp39.000
13	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
14	83770M83K00-P4Z	TRIM,BACK DOOR (GRAY)	1	Rp470.000
15	09409-08331-000	•CLIP	2	Rp17.000
16	09409-10327-000 SUB: 09409M10312-000	•CLIP	9	Rp5.000
17	09409M07308-P4Z	CLIP (GRAY)	1	Rp7.500
18	82850M51K10-000	HANDLE ASSY,BACK DOOR LOCK	1	Rp77.500
19	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
20	84515M65D10-000	FEMALE,GLASS FASTENER	4	Rp22.000
21	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:25.8)	1	Rp4.500
22	84571M83K01-000 SUB: 84570M83K00-000	GLASS,BACK DOOR WINDOW	1	Rp737.500
23	84513M75J00-000	MALE,GLASS FASTENER NO.2	2	Rp8.500
24	84572M74G10-000	MALE,GLASS FASTENER NO.1	2	Rp26.500
25	84623M51K00-000	MOLDING,BACK DOOR WINDOW RH	1	Rp29.000
26	84624M51K00-000	MOLDING,BACK DOOR WINDOW LH	1	Rp29.000
27	44281-29C00-000 SUB: 63191-25C00-000	CUSHION	2	Rp6.000
28	77151-82000-000 SUB: 77151M82000-000	SEAL	2	Rp7.000
29	83910-83K00-000	DRIP,BACK DOOR SIDE RH	1	Rp292.000
30	83920-83K00-000	DRIP,BACK DOOR SIDE LH	1	Rp326.500
31	84681M83K00-000	WEATHERSTRIP,BACK DOOR OPENING	1	Rp319.000
32	83937-83K00-000	SEAL,BACK DOOR DRAIN	2	Rp33.000
