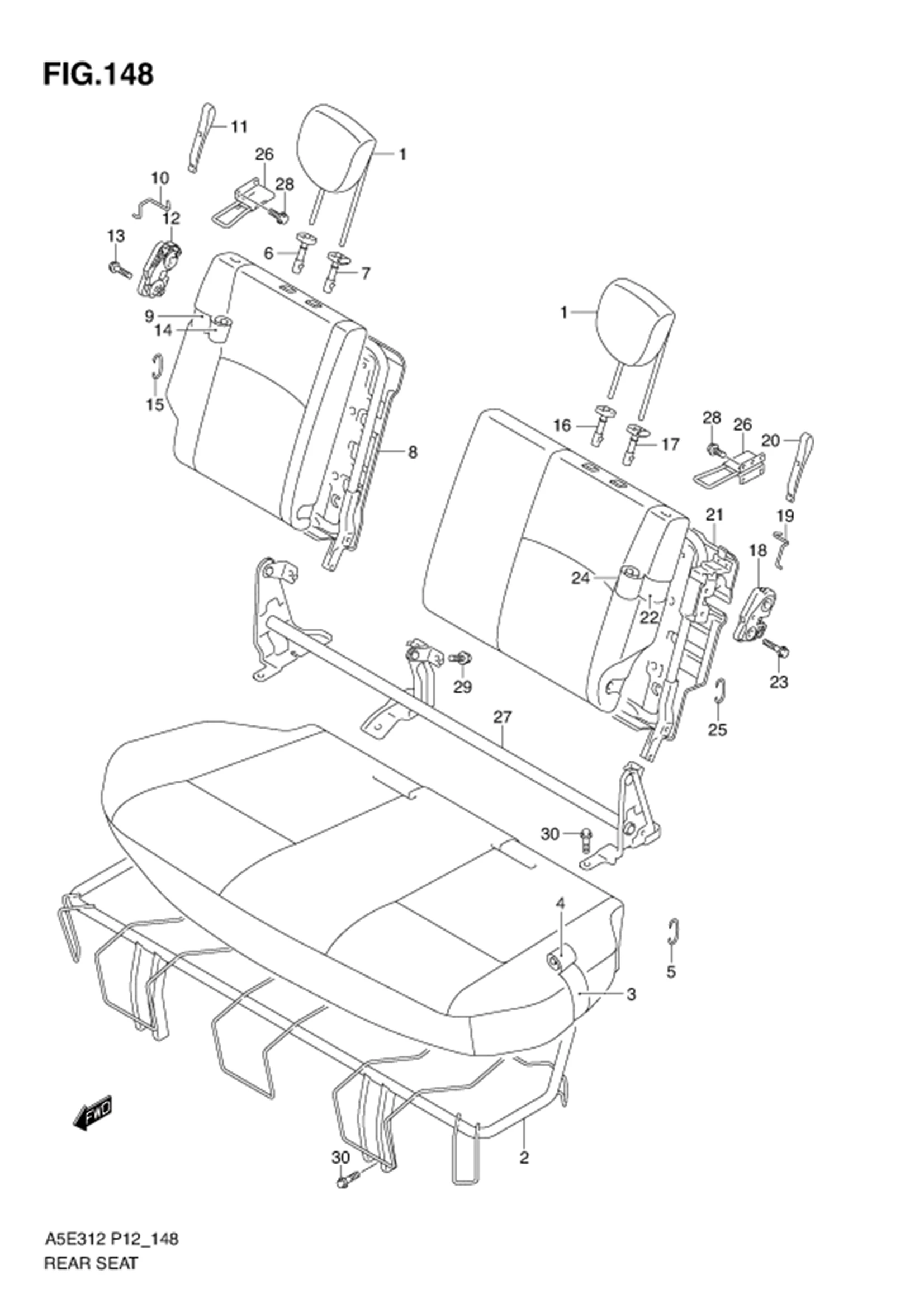

FIG.148 REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	86401M83K10-PFB	HEADRESTRAINT ASSY RH (GRAY)	2	Rp474.000	TYPE 2
1-1	86401M83K10-V9A	HEADRESTRAINT ASSY RH (GRAY)	2	Rp380.000	TYPE 1
2	87110M83K00-000	FRAME,RR CUSHION	1	Rp620.500
3-1	87160M83K00-000	PAD,RR CUSHION	1	Rp485.500	TYPE 1
3-2	87160M83K00-000 SUB: 87160M83K20-000	PAD,RR CUSHION	1	Rp485.500	TYPE 2
4-1	87180M83K00-FZK	TRIM,RR CUSHION	1	Rp595.000	TYPE 1
4-2	87180M83K00-ADC	TRIM,RR CUSHION	1	Rp1.496.500	TYPE 2
5	09387-19001-000 SUB: 09387B19001N000	RING	12	Rp9.000
6	85341M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp8.500
7	85840M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.500
8	87310M83K10-000	FRAME,RR BACK RH	1	Rp1.468.000
9-1	87360M83K00-000	PAD,RR BACK RH	1	Rp471.000	TYPE 1
9-2	87360M83K30-000	PAD,RR BACK RH	1	Rp648.000	TYPE 2
10	87485M83K00-000	WIRE,RR BACK LOCK RH	1	Rp8.500
11	87486M83K00-000	BAND,RR BACK LOCK RH	1	Rp17.000
12	87980M62J10-000	LOCK ASSY,RR BACK RH	1	Rp444.500
13	01550-0835A-000 SUB: 01550B0835AN000	BOLT	2	Rp3.500
14-2	87380M83K30-000	TRIM,RR BACK RH	1	-	TYPE 2
14-1	87380M83K10-FZK	TRIM,RR BACK RH	1	Rp590.000	TYPE 1
15	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
16	85341M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp8.500
17	85840M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.500
18	87480M62J02-000 SUB: 87480M62J10-000	LOCK ASSY,RR BACK LH	1	Rp396.000
19	87485M83K00-000	WIRE,RR BACK LOCK LH	1	Rp8.500
20	87486M83K00-000	BAND,RR BACK LOCK LH	1	Rp17.000
21	87810M83K10-000	FRAME,RR BACK LH	1	Rp1.468.000
22-2	87860M83K30-000	PAD,RR BACK LH	1	Rp482.000	TYPE 2
22-1	87860M83K00-000	PAD,RR BACK LH	1	Rp468.000	TYPE 1
23	01550-0835A-000 SUB: 01550B0835AN000	BOLT	2	Rp3.500
24-1	87880M83K10-FZK	TRIM,RR BACK LH	1	Rp590.000	TYPE 1
24-2	87880M83K30-000	TRIM,RR BACK LH	1	-	TYPE 2
25	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
26	87870M83K00-000	STRIKER,RR BACK	2	Rp98.500
27	87901M83K00-000	HINGE ASSY,RR BACK	1	Rp235.500
28	01551-0820A-000	BOLT	6	Rp17.500
29	09103-10394-000	BOLT	2	Rp30.500
30	01551-1020A-000	BOLT	9	Rp18.000
