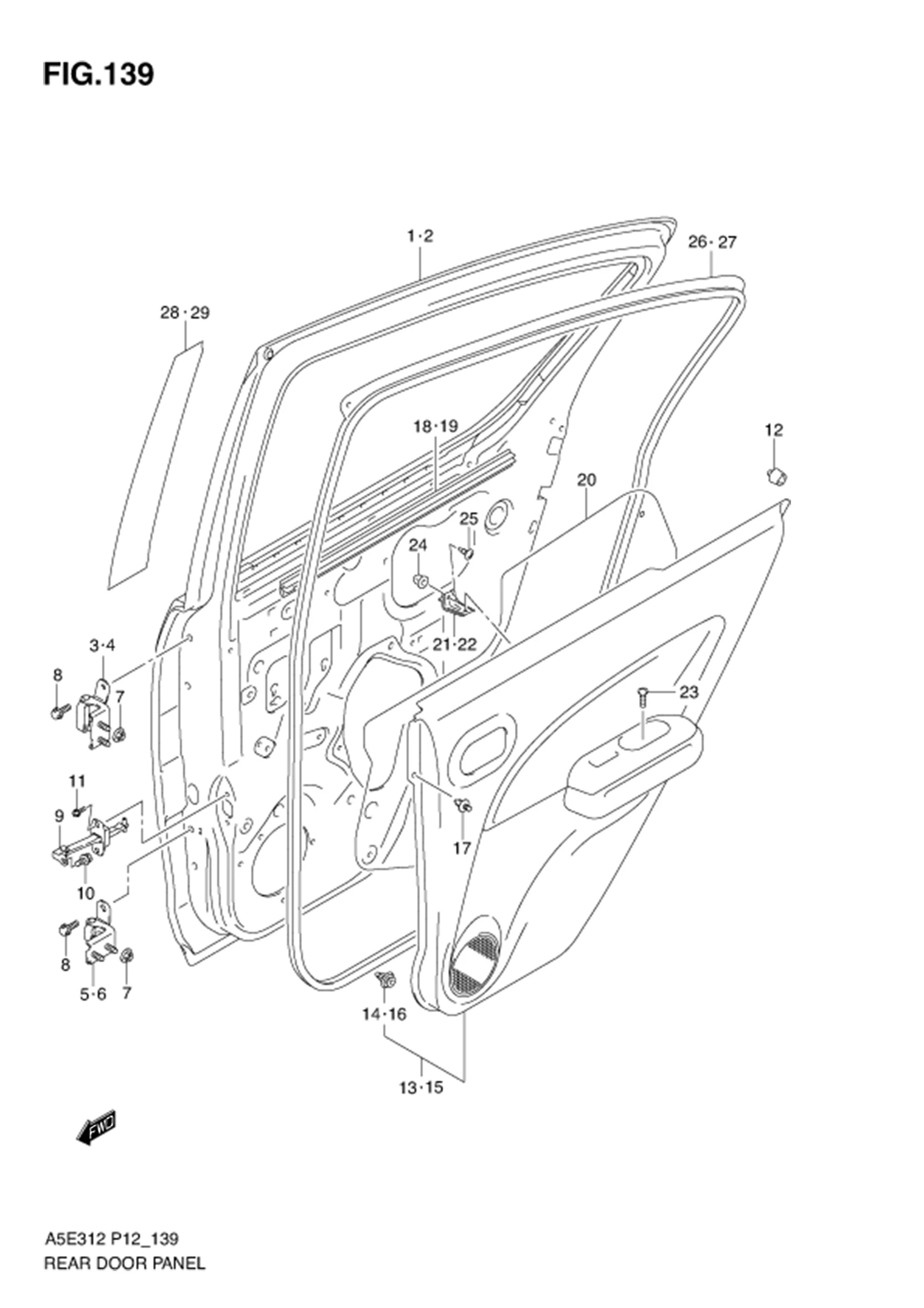

FIG.139 REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	68003M83K01-000	PANEL ASSY,REAR DOOR RH	1	Rp3.873.500	TYPE 2
1-1	68003M83K01-000 SUB: 68003M83K00-000	PANEL ASSY,REAR DOOR RH	1	Rp3.873.500	TYPE 1
2-1	68004M83K01-000 SUB: 68004M83K00-000	PANEL ASSY,REAR DOOR LH	1	Rp3.873.500	TYPE 1
2-2	68004M83K01-000	PANEL ASSY,REAR DOOR LH	1	Rp3.873.500	TYPE 2
3	69410-63J00-000	HINGE,REAR DOOR UPPER RH	1	Rp528.000
4	69420-63J00-000	HINGE,REAR DOOR UPPER LH	1	Rp528.000
5	69430-63J00-000	HINGE,REAR DOOR LOWER RH	1	Rp528.000
6	69440-63J00-000	HINGE,REAR DOOR LOWER LH	1	Rp528.000
7	08361-2508A-000	NUT	8	Rp16.500
8	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
9	81810M75J03-000 SUB: 81810M75J02-000	STOP,SIDE DOOR OPEN	2	Rp72.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	09122-86004-000	BOLT (6X20)	4	Rp15.000
12	82711-65J00-000	CUSHION	4	Rp34.000
13-1	83730M83K30-000	TRIM,REAR DOOR RH (GRAY)	1	-	TYPE 1
13-2	83730M83K30-ADH	TRIM,REAR DOOR RH (GRAY)	1	Rp939.000	TYPE 2
14	09409-10327-000 SUB: 09409M10312-000	•CLIP	9	Rp5.000
15-1	83740M83K30-000	TRIM,REAR DOOR LH (GRAY)	1	-	TYPE 1
15-2	83740M83K30-ADH	TRIM,REAR DOOR LH (GRAY)	1	Rp939.000	TYPE 2
16	09409-10327-000 SUB: 09409M10312-000	•CLIP	9	Rp5.000
17	09409-06314-P4Z	CLIP (GRAY)	4	Rp22.000
18	83871M83K00-000	WEATHERSTRIP,REAR DOOR INNNER RH	1	Rp111.000
19	83881M83K00-000	WEATHERSTRIP,REAR DOOR INNNER LH	1	Rp111.000
20	83913M51K00-000	COVER,REAR DOOR SEALING	2	Rp10.500
21	83751-75HA0-000 SUB: 83751M75HA0-000	BRACKET,DOOR TRIM RH	1	Rp8.000
22	83756-75HA0-000 SUB: 83756M75HA0-000	BRACKET,DOOR TRIM LH	1	Rp8.000
23	09132-05058-000	SCREW (5X12)	2	Rp14.000
24	71851M70F00-000	NUT	2	Rp4.000
25	03241M0612A-000	SCREW	2	Rp6.500
26	84661M83K00-000	WEATHERSTRIP,REAR DOOR OPENING RH	1	Rp330.000
27	84671M83K00-000	WEATHERSTRIP,REAR DOOR OPENING LH	1	Rp330.000
28	83931M83K10-0CB SUB: 83931M83K00-0CB	TAPE,REAR DOOR OUTER RH (BLACK)	1	Rp277.000
29	83932M83K10-0CB SUB: 83932M83K00-0CB	TAPE,REAR DOOR OUTER LH (BLACK)	1	Rp271.000
