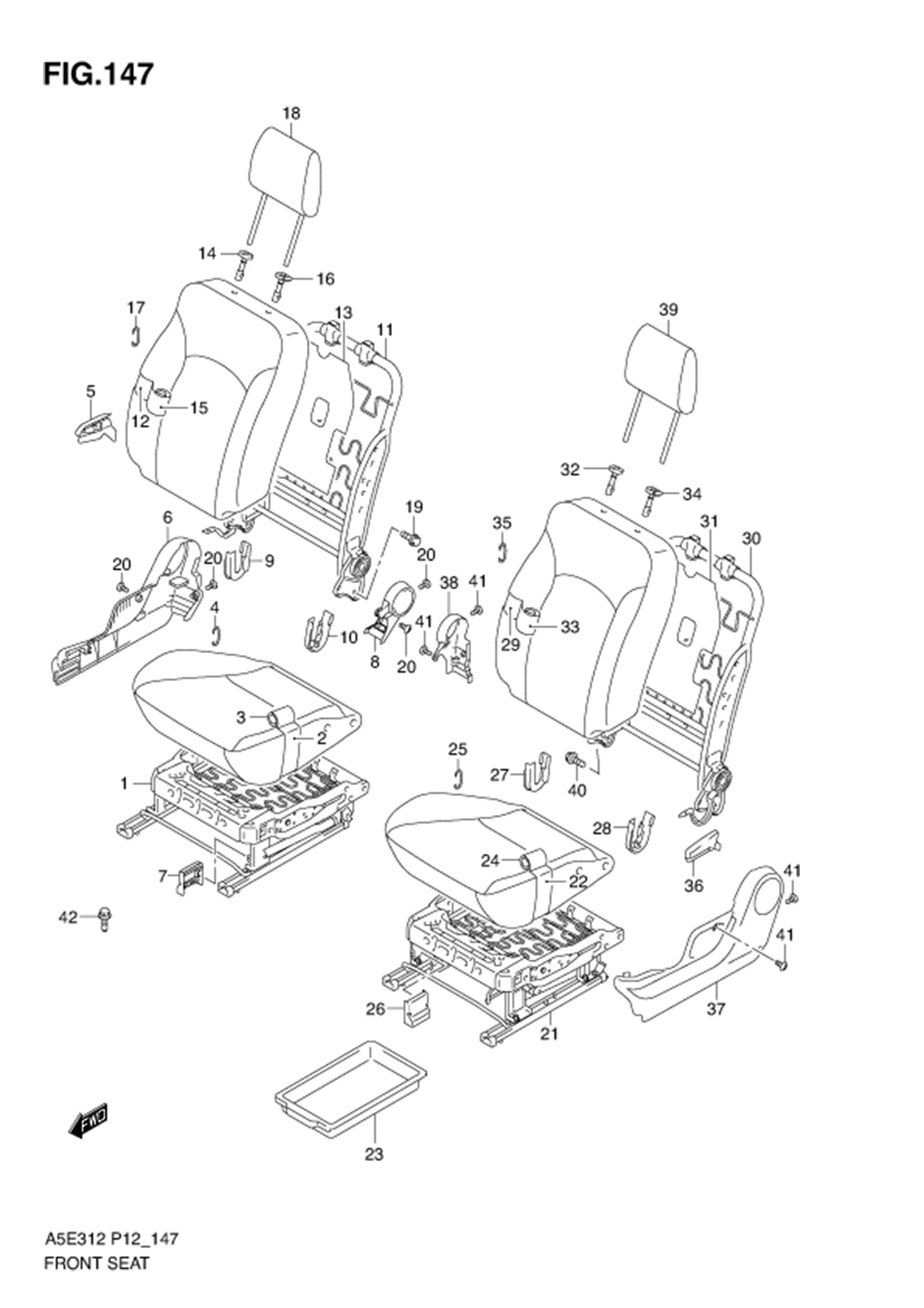

FIG.147 FRONT SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85103M83K00-000	FRAME ASSY,FR CUSHION RH	1	Rp1.341.000
2	85160M83K00-000	PAD,FR CUSHION RH	1	Rp327.500
3-2	85180M83K00-ADB	TRIM,FR CUSHION RH	1	Rp732.500	TYPE 2
3-1	85180M83K00-FZJ	TRIM,FR CUSHION RH	1	Rp328.500	TYPE 1
4	09387-19001-000 SUB: 09387B19001N000	RING	11	Rp9.000
5	85211-63J00-P4Z	KNOB,RCLNG RH (GRAY)	1	Rp80.500
6	85221M83K00-P4Z	COVER,FR RECLINING OUTSIDE RH (GRAY)	1	Rp124.000
7	85224M83K00-P4Z	COVER,FR RISER INSIDE RH (GRAY)	1	Rp19.000
8	85241M83K00-P4Z	COVER,FR RECLINING INSIDE RH (GRAY)	1	Rp51.500
9	DISCONTINUE SUB: 85222M63J00-P4Z	COVER,FR BACK FRAME RH (GRAY)	1	-
10	DISCONTINUE SUB: 85242-63J00-P4Z	COVER,FR BACK FRAME LH (GRAY)	1	-
11	85303M75J01-000	FRAME ASSY,FR BACK RH	1	Rp2.425.500
12	85360M83K00-000	PAD,FR BACK	1	Rp360.500
13	85369M63J00-000	SILENCER,FR BACK	1	Rp53.500
14	85341M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp8.500
15-1	85380M83K40-FZJ	TRIM,FR BACK RH	1	Rp333.500	TYPE 1
15-2	85380M83K40-ADB	TRIM,FR BACK RH	1	Rp737.500	TYPE 2
16	85840M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.500
17	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
18-1	86401M83K00-V9A	HEADRESTRAINT ASSY (GRAY)	1	Rp495.500	TYPE 1
18-2	86401M83K00-PFB	HEADRESTRAINT ASSY (GRAY)	1	Rp505.500	TYPE 2
19	01550-1016A-000 SUB: 01550B1016AN000	BOLT	4	Rp5.500
20	03241-0510A-000	SCREW	4	Rp8.000
21	85603M83K40-000	FRAME ASSY,FR CUSHION LH	1	Rp1.048.500
22	85660M83K00-000	PAD,FR CUSHION LH	1	Rp327.500
23	85150M63J00-000	TRAY,FR SEAT UNDER	1	Rp111.000
24-1	85680M83K00-FZJ	TRIM,FR CUSHION LH	1	Rp328.500	TYPE 1
24-2	85680M83K00-ADB	TRIM,FR CUSHION LH	1	Rp732.500	TYPE 2
25	09387-19001-000 SUB: 09387B19001N000	RING,TRIM	11	Rp9.000
26	85224M83K00-P4Z	COVER,FR RISER INSIDE LH (GRAY)	1	Rp19.000
27	DISCONTINUE SUB: 85222M63J00-P4Z	COVER,FR BACK FRAME RH (GRAY)	1	-
28	DISCONTINUE SUB: 85242-63J00-P4Z	COVER,FR BACK FRAME LH (GRAY)	1	-
29	85360M83K00-000	PAD,FR BACK LH	1	Rp360.500
30	85803M75J01-000	FRAME ASSY,FR BACK LH	1	Rp1.765.500
31	85369M63J00-000	SILENCER,FR BACK	1	Rp53.500
32	85341M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp8.500
33-1	85380M83K40-FZJ	TRIM,FR BACK LH	1	Rp333.500	TYPE 1
33-2	85380M83K40-ADB	TRIM,FR BACK LH	1	Rp737.500	TYPE 2
34	85840M75J00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.500
35	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
36	85711-63J00-P4Z	KNOB,RCLNG LH (GRAY)	1	Rp72.000
37	85721M83K00-P4Z	COVER,RECLINING OUTSIDE LH (GRAY)	1	Rp124.500
38	85741M83K00-P4Z	COVER,RECLINING INSIDE LH (GRAY)	1	Rp49.500
39-1	86401M83K00-V9A	HEADRESTRAINT ASSY (GRAY)	1	Rp495.500	TYPE 1
39-2	86401M83K00-PFB	HEADRESTRAINT ASSY (GRAY)	1	Rp505.500	TYPE 2
40	01550-1016A-000 SUB: 01550B1016AN000	BOLT	4	Rp5.500
41	03241-0510A-000	SCREW	4	Rp8.000
42	09119-08102-000	BOLT (8X25)	8	Rp33.000
