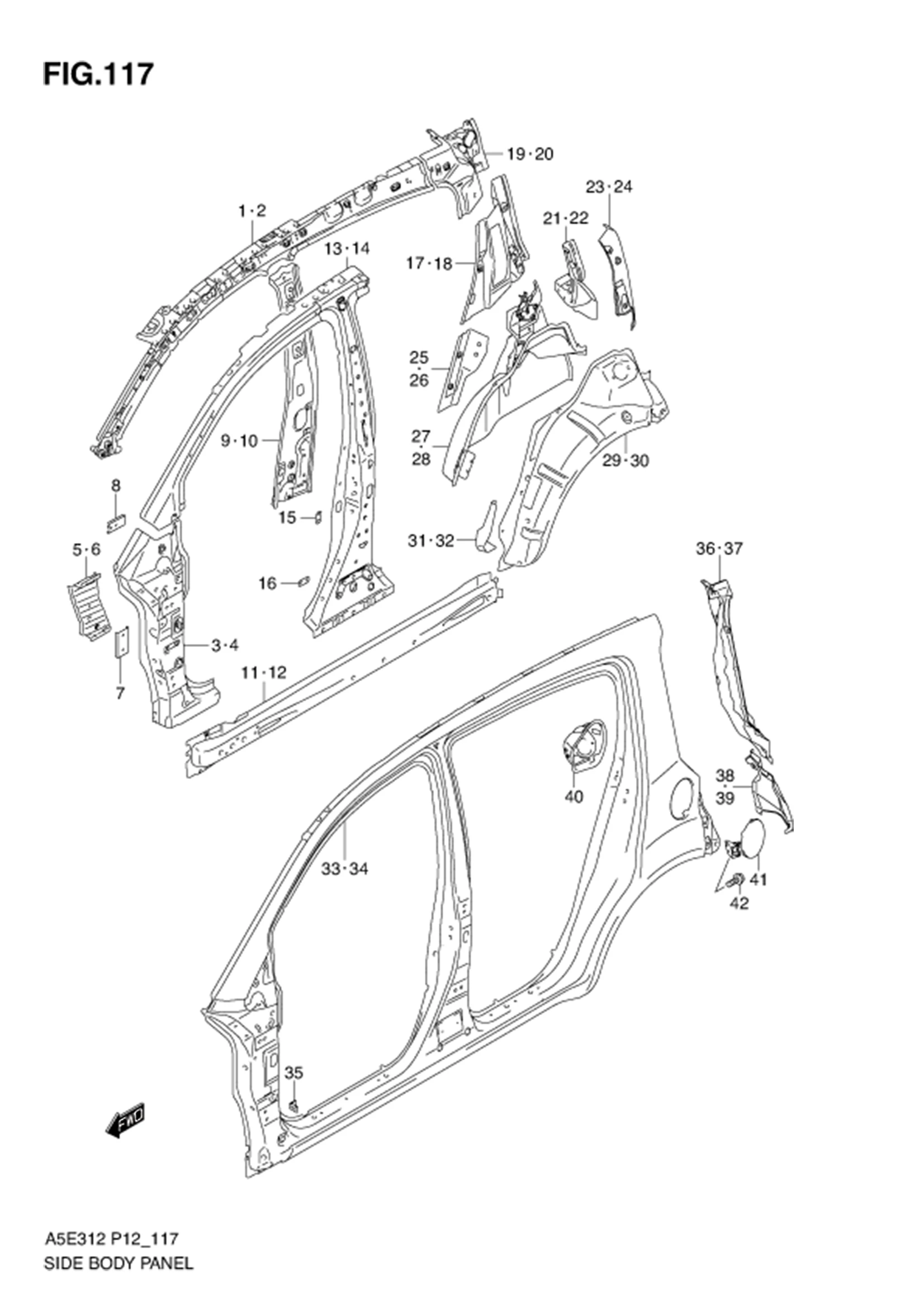

FIG.117 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	63110M83K10-000 SUB: 63110M83K00-000	PANEL,FR PILLAR INNER RH	1	Rp574.500
2	63510M83K00-000	PANEL,FR PILLAR INNER LH	1	Rp574.500
3	63140M83K00-000	REINF,FR DOOR HINGE RH	1	Rp750.000
4	63540M83K00-000	REINF,FR DOOR HINGE LH	1	Rp720.500
5	63142M83K00-000	BRACE,FRONT PILLAR LOWER RH	1	Rp93.000
6	63542M83K00-000	BRACE,FRONT PILLAR LOWER LH	1	Rp93.000
7	63145-75J00-000 SUB: 63145M75J00-000	RETAINER,FR DOOR HINGE LWR	2	Rp8.500
8	63146M83K00-000	RETAINER,FR DOOR HINGE UPR	2	Rp23.000
9	63210M83K01-000	PANEL,CTR PILLAR INNER RH	1	Rp286.000
10	63610M83K01-000	PANEL,CTR PILLAR INNER LH	1	Rp286.000
11	63220M83K00-000	STRENGTH,SIDE SILL RH	1	Rp841.500
12	63620M83K00-000	STRENGTH,SIDE SILL LH	1	Rp841.500
13	63230M83K00-000	REINF,CTR PILLAR RH	1	Rp1.785.500
14	63630M83K00-000	REINF,CTR PILLAR LH	1	Rp1.785.500
15	63243M75J00-000	RETAINER,RR DOOR HINGE UPR	2	Rp8.500
16	63244M75J00-000	RETAINER,RR DOOR HINGE LWR	2	Rp8.500
17	63311M51K00-000	PANEL,QTR INNER RH	1	Rp188.000
18	63711M51K00-000	PANEL,QTR INNER LH	1	Rp188.000
19	63312M83K00-000	EXTENSION,QTR INNER UPR RH	1	Rp193.000
20	63712M83K00-000	EXTENSION,QTR INNER UPR LH	1	Rp193.000
21	63313M51K00-000	PANEL,RR LAMP HOUSE INR RH	1	Rp103.500
22	63713M51K00-000	PANEL,RR LAMP HOUSE INR LH	1	Rp103.500
23	63314M83K00-000	REINF,RR SEAT BELT RH	1	Rp105.500
24	63714M83K00-000	REINF,RR SEAT BELT LH	1	Rp106.500
25	63320M83K00-000	REINF,RR DOOR STRIKER RH	1	Rp112.000
26	63720M83K00-000	REINF,RR DOOR STRIKER LH	1	Rp112.000
27	63410M83K00-000	PANEL,WHEEL HOUSE INR RH	1	Rp745.000
28	63810M83K00-000	PANEL,WHEEL HOUSE INR LH	1	Rp745.000
29	63481M83K00-000	PANEL,WHEEL HOUSE OTR RH	1	Rp161.000
30	63881M83K00-000	PANEL,WHEEL HOUSE OTR LH	1	Rp161.000
31	63482M83K00-000	EXTENSION,WHL HOUSE LWR RH	1	Rp32.500
32	63882M83K00-000	EXTENSION,WHL HOUSE LWR LH	1	Rp32.500
33	64111M83K00-000	PANEL,A-PILLAR RH	1	Rp3.224.000
34	64511M83K00-000	PANEL,A-PILLAR LH	1	Rp3.224.000
35	64113M63J00-000	BRACKET,FR FENDER	2	Rp7.500
36	64120M83K00-000	EXTENSION,SIDE BODY OTR RH	1	Rp371.500
37	64520M83K00-000	EXTENSION,SIDE BODY OTR LH	1	Rp371.500
38	64124M83K00-000	EXTENSION,SIDE BODY LWR RH	1	Rp86.000
39	64524M83K00-000	EXTENSION,SIDE BODY LWR LH	1	Rp88.000
40	64571M83K00-000	BOX,FUEL FILLER	1	Rp83.500
41-1	64850M83K10-000	DOOR,FUEL FILLER	1	Rp89.500	TYPE 1
41-2	64850M85L00-000	DOOR,FUEL FILLER	1	Rp105.500	TYPE 2
42	01550M0612A-000	BOLT	2	Rp5.000
