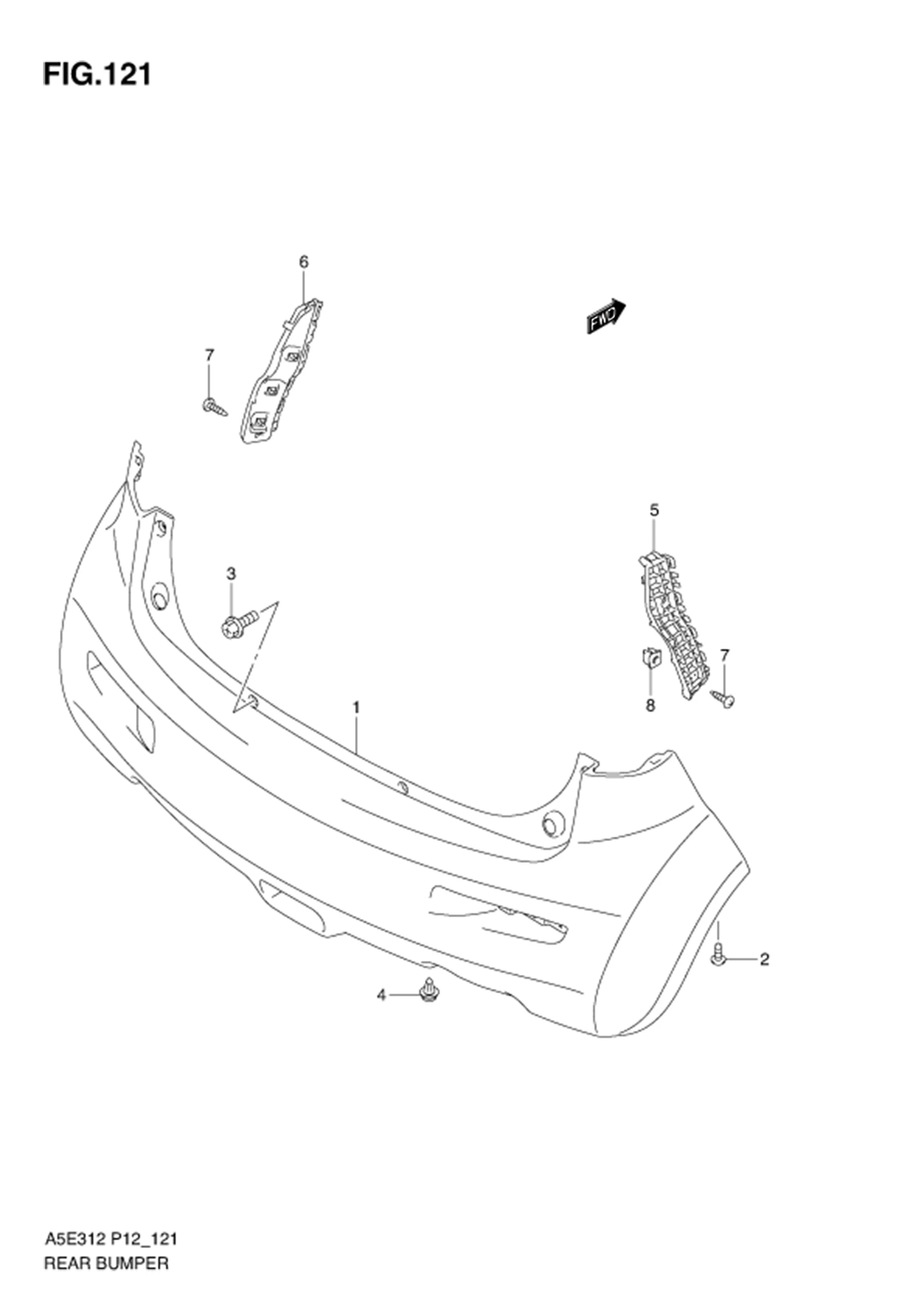

FIG.121 REAR BUMPER

FIG.121 REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71811M83K00-5PK	BUMPER,REAR (BLACK)	1	Rp863.500	PAINT TO MATCH
2	03241-0616E-000	SCREW	2	Rp19.500
3	02162-0616A-000 SUB: 02162-0616C-000	BOLT	4	Rp3.000
4	09409M08006-000 SUB: 09409M08L01-000	CLIP	4	Rp5.000
5	71821M83K00-000	HOLDER,RR BUMPER SIDE RH	1	Rp53.000
6	71822M83K00-000	HOLDER,RR BUMPER SIDE LH	1	Rp53.000
7	03541-0512A-000	SCREW	6	Rp3.500
8	09148-05044-000	NUT	2	Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
