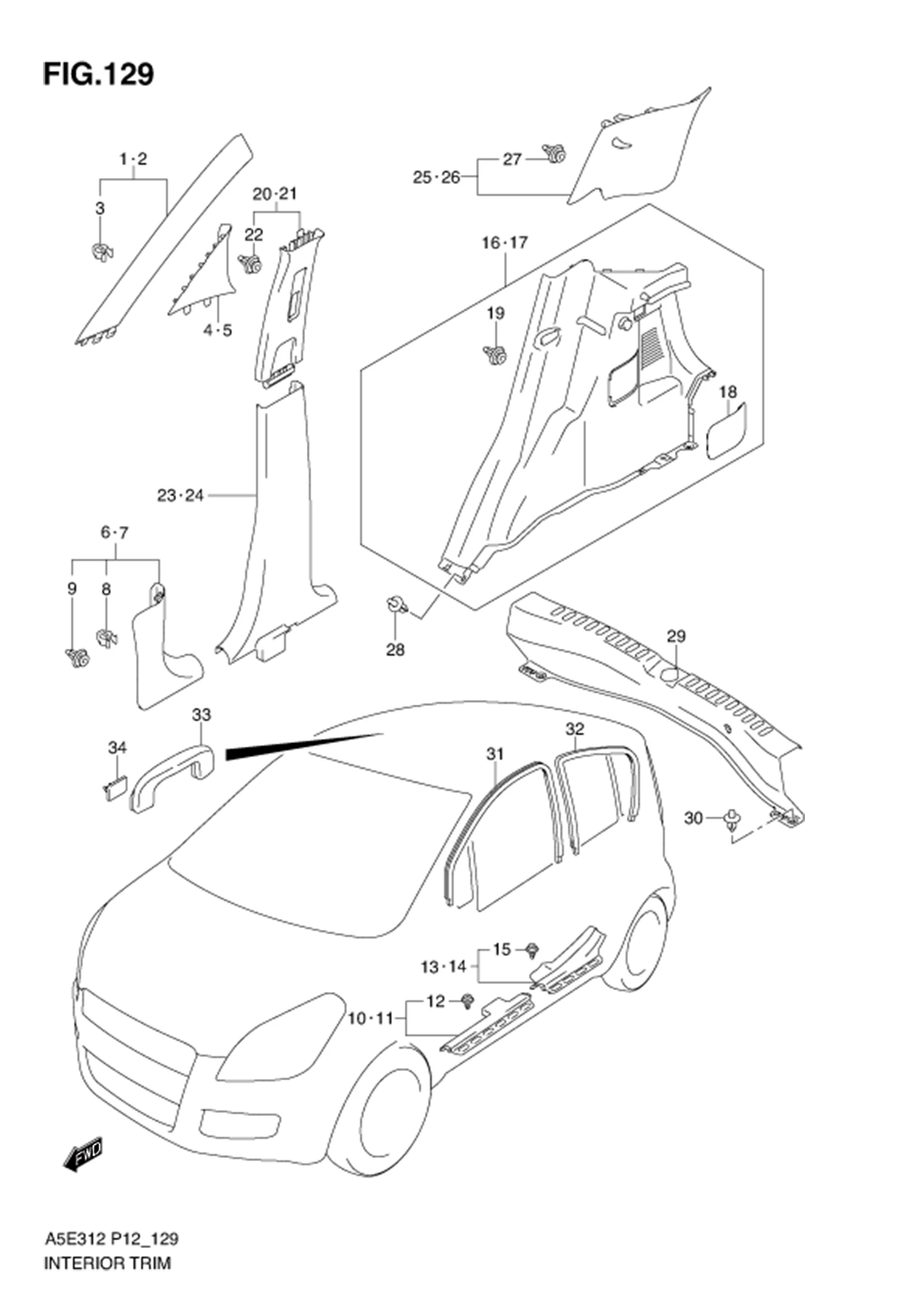

FIG.129 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76111M83K00-6GS	TRIM,FR PILLAR,RH (GRAY)	1	Rp116.000
2	76121M83K00-6GS	TRIM,FR PILLAR,LH (GRAY)	1	Rp116.000
3	09409-07335-000	•CLIP	6	Rp17.500
4	76113M51K00-P4Z	COVER,FR PILLAR INR LOWER RH (GRAY)	1	Rp50.000
5	76123M51K00-P4Z	COVER,FR PILLAR INR LOWER LH (GRAY)	1	Rp50.000
6	76130M83K00-P4Z	TRIM,DASH SIDE,RH (GRAY)	1	Rp90.000
7	76140M83K00-P4Z	TRIM,DASH SIDE,LH (GRAY)	1	Rp90.000
8	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
9	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
10	76151M51K00-P4Z	SCUFF,SIDE SILL FR RH (GRAY)	1	Rp78.000
11	76161M51K00-P4Z	SCUFF,SIDE SILL FR LH (GRAY)	1	Rp78.000
12	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
13	76152M51K00-P4Z	SCUFF,SIDE SILL RR RH (GRAY)	1	Rp66.000
14	76162M51K00-P4Z	SCUFF,SIDE SILL RR LH (GRAY)	1	Rp66.000
15	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
16	76170M83K00-P4Z	TRIM,QTR INNER LOWER RH (GRAY)	1	Rp484.000
17	76180M83K00-P4Z	TRIM,QTR INNER LOWER LH (GRAY)	1	Rp484.000
18	76172M51K00-P4Z	•CAP,QTR INNER LOWER (GRAY)	2	Rp19.000
19	09409-10327-000 SUB: 09409M10312-000	•CLIP	4	Rp5.000
20	76211M83K00-6GS	TRIM,CTR PILLAR UPPER RH (GRAY)	1	Rp114.000
21	76221M83K00-6GS	TRIM,CTR PILLAR UPPER LH (GRAY)	1	Rp114.000
22	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
23	76231M83K00-P4Z	TRIM,CTR PILLAR INNER LOWER RH (GRAY)	1	Rp280.000
24	76241M83K00-P4Z	TRIM,CTR PILLAR INNER LOWER LH (GRAY)	1	Rp280.000
25	76251M83K00-6GS	TRIM,QTR INNER UPPER RH (GRAY)	1	Rp167.000
26	76261M83K00-6GS	TRIM,QTR INNER UPPER LH (GRAY)	1	Rp167.000
27	09409-10327-000 SUB: 09409M10312-000	•CLIP	8	Rp5.000
28	09409M07308-P4Z	CLIP (GRAY)	4	Rp7.500
29	76271M83K00-P4Z	TRIM,TAIL END (GRAY)	1	Rp295.000
30	09409M07308-P4Z	CLIP (GRAY)	3	Rp7.500
31	76291M83K00-000	TRIM,FRONT DOOR OPENING	2	Rp175.000
32	76295M83K00-000	TRIM,REAR DOOR OPENING	2	Rp172.000
33	76410-55G02-6GS	GRIP,ASSISTANT (GRAY)	3	Rp255.500
34	76412-55G00-6GS	CAP,ROOF LINING (GRAY)	2	Rp31.000
