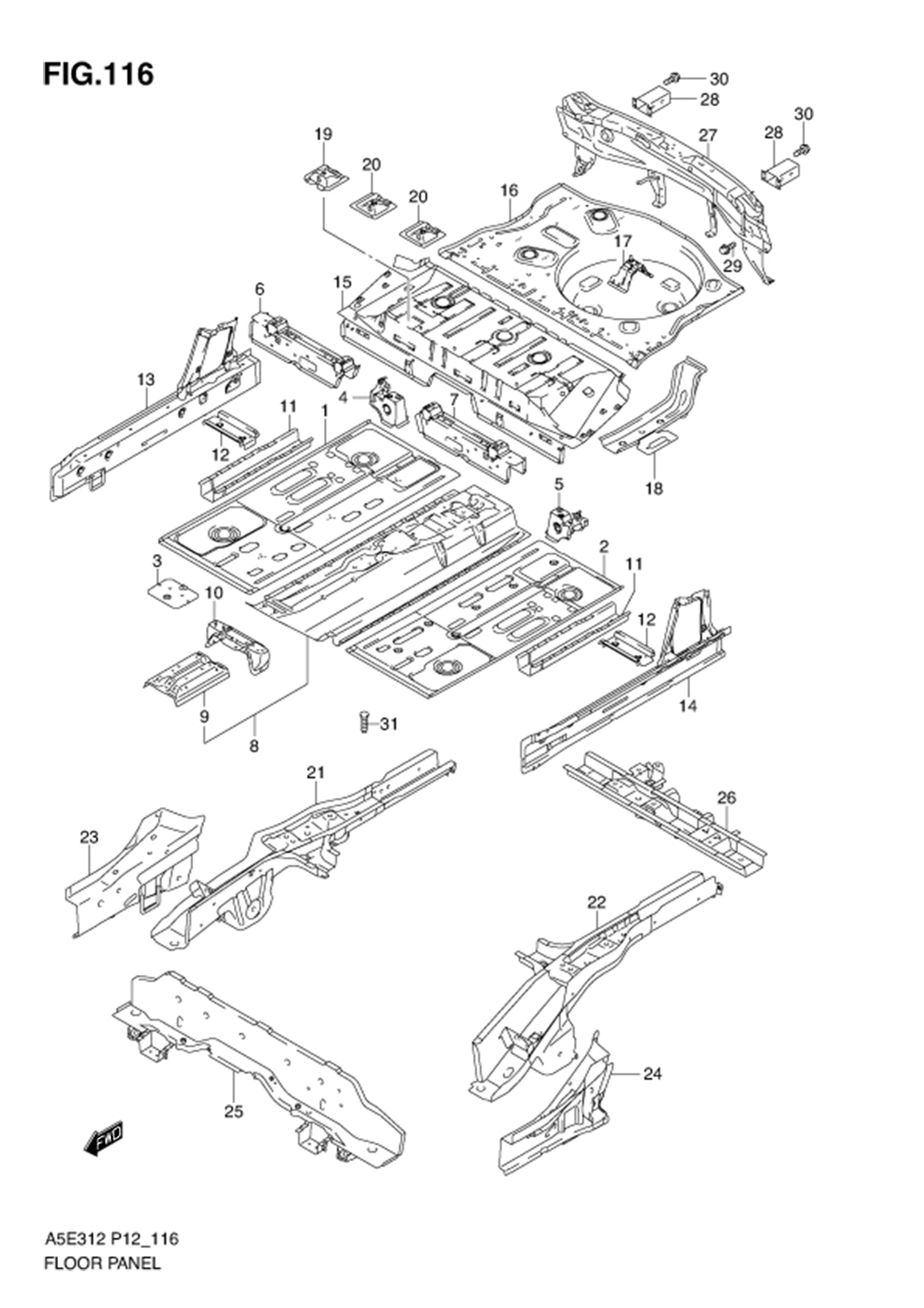

FIG.116 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61111M83K00-000	PAN,MAIN FLOOR RH	1	Rp357.000
2	61161M83K00-000	PAN,MAIN FLOOR LH	1	Rp357.000
3	61112M75J00-000	REINF,MAIN FLOOR	2	Rp19.000
4	61120M83K00-000	BRACKET,FR SEAT RR OUT RH	1	Rp143.500
5	61170M83K00-000	BRACKET,FR SEAT RR OUT LH	1	Rp143.500
6	61130M83K00-000	CROSSMEMBER,FLR PAN UPR RH	1	Rp272.000
7	61180M83K00-000	CROSSMEMBER,FLR PAN UPR LH	1	Rp272.000
8	61210M83K00-000	TUNNEL,MAIN FLOOR	1	Rp1.375.500
9	61216M51K00-000	•BRACKET,SHIFT LEVER	1	Rp131.000
10	61230M51K00-000	BRACKET,FR SEAT RR INSIDE	1	Rp196.500
11	61241M83K00-000	MEMBER,FLOOR SIDE REAR	2	Rp171.500
12	61242M75J00-000	CROSSMEMBER,FLR PAN LWR	2	Rp55.500
13-1	61310M83K00-000	PANEL,SIDE SILL INNER RH	1	Rp713.500	TYPE 1
13-2	61310M85L00-000	PANEL,SIDE SILL INNER RH	1	Rp817.500	TYPE 2
14-1	61320M83K00-000	PANEL,SIDE SILL INNER LH	1	Rp713.500	TYPE 1
14-2	61320M85L00-000	PANEL,SIDE SILL INNER LH	1	Rp817.500	TYPE 2
15-1	61511M75J00-000	PANEL,RR FLOOR FR	1	Rp368.000	N/ABS
15-2	61511M75J10-000	PANEL,RR FLOOR FR	1	Rp866.500	W/ABS
16	61512M83K00-000	PANEL,RR FLOOR RR	1	Rp658.500
17	61520M75J00-000	BRACKET,SPARE TIRE	1	Rp32.500
18	61550M75J00-000	HOOK,TOWING REAR	1	Rp150.500
19	61514M83K00-000	BRACKET,RR SEAT RH	1	Rp61.000
20	61515M51K00-000	BRACKET,RR SEAT LH	1	Rp61.000
21-1	62100M83K00-000	MEMBER,RR FLOOR SIDE RH	1	Rp1.487.000	TYPE 1
21-2	62100M85L00-000	MEMBER,RR FLOOR SIDE RH	1	Rp1.597.500	TYPE 2
22-1	62300M83K00-000	MEMBER,RR FLOOR SIDE LH	1	Rp1.487.000	TYPE 1
22-2	62300M85L00-000	MEMBER,RR FLOOR SIDE LH	1	Rp1.597.500	TYPE 2
23-1	62210M83K00-000	COMPARTMENT,RR FLR SIDE RH	1	Rp420.000	TYPE 1
23-2	62210M85L00-000	COMPARTMENT,RR FLR SIDE RH	1	Rp455.500	TYPE 2
24-1	62410M83K00-000	COMPARTMENT,RR FLR SIDE LH	1	Rp420.000	TYPE 1
24-2	62410M85L00-000	COMPARTMENT,RR FLR SIDE LH	1	Rp455.500	TYPE 2
25	62600M75J01-000	CROSSMEMBER,RR FLOOR FR	1	Rp786.000
26-1	62700M83K00-000	CROSSMEMBER,RR FLOOR CTR	1	Rp601.000	TYPE 1
26-2	62700M85L00-000	CROSSMEMBER,RR FLOOR CTR	1	Rp619.500	TYPE 2
27	65500M83K00-000	PANEL,BACK	1	Rp648.000
28	65561M75J10-000	ABSORBER,REAR BUMPER	2	Rp38.000
29	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
30	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
31	09119-05018-000	BOLT	7	Rp13.000
