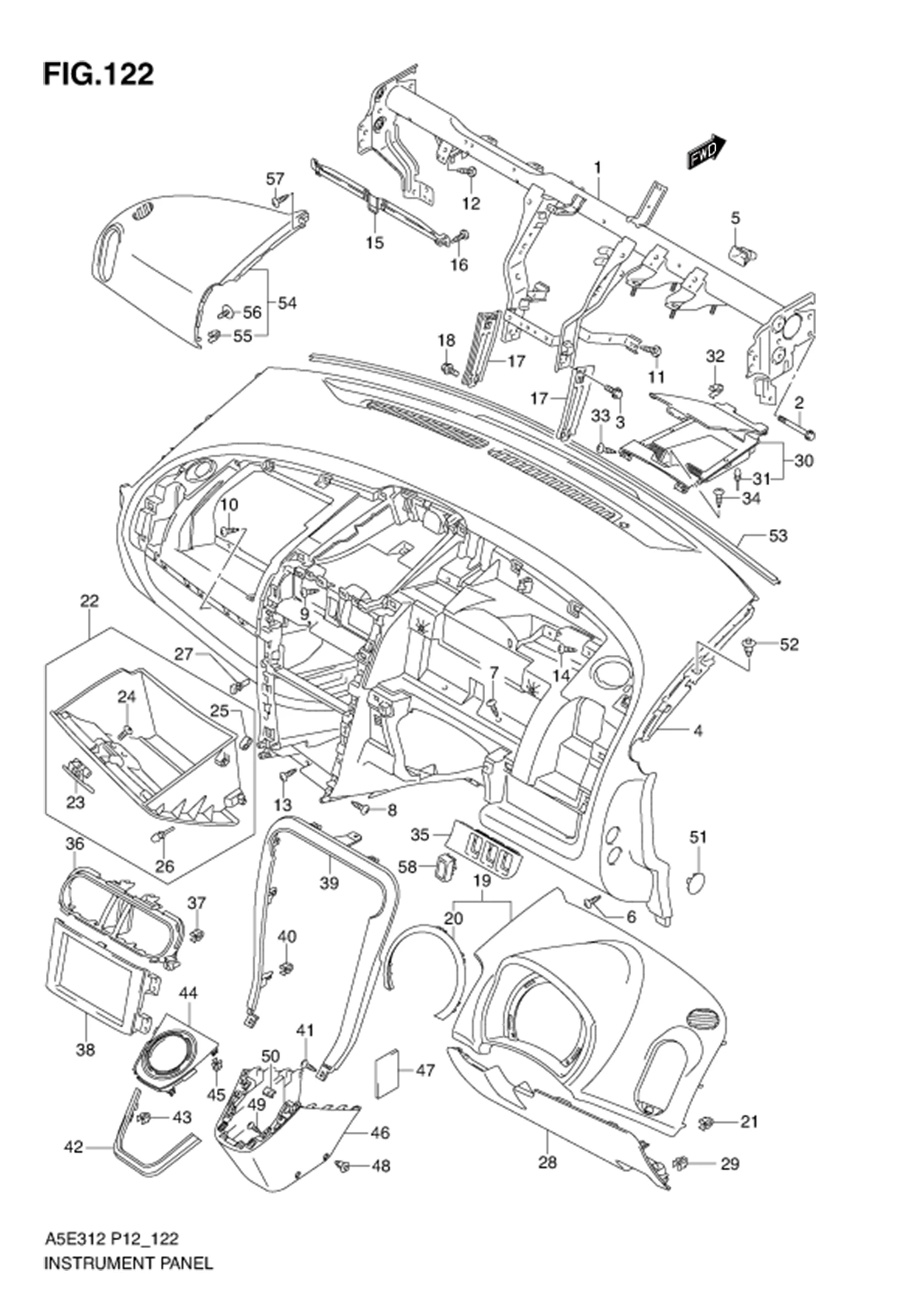

FIG.122 INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73200M83K10-000	MEMBER,STEERING SUPPORT	1	Rp1.267.000
2	73291-50G20-000 SUB: 73291-50G03-000	BOLT	4	Rp42.500
3	01551-0816C-000	BOLT	4	Rp17.500
4	73111M83K00-P4Z	PANEL,INSTRUMENT MAIN (GRAY)	1	Rp969.000
5	DISCONTINUE SUB: 73123M75J00-000	SOCKET,PIN	5	-
6	03141-0516B-000 SUB: 03141-0512A-000	SCREW	2	Rp3.500
7	03141-0516B-000 SUB: 03141-0512A-000	SCREW	2	Rp3.500
8	03141-0516B-000 SUB: 03141-0512A-000	SCREW	2	Rp3.500
9	03141-0516B-000 SUB: 03141-0512A-000	SCREW	1	Rp3.500
10	03141-0516B-000 SUB: 03141-0512A-000	SCREW	2	Rp3.500
11	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
12	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
13	03141-0516B-000 SUB: 03141-0512A-000	SCREW	1	Rp3.500
14	03141-0516B-000 SUB: 03141-0512A-000	SCREW	1	Rp3.500
15	73250M83K00-000	REINF,GLOVE BOX UPPER	1	Rp38.000
16	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
17	73261M51K00-000	BRACE,MEMBER LOWER	2	Rp33.000
18	01551-0816C-000	BOLT	4	Rp17.500
19	73010M51K00-FYW SUB: 73310M83K50-FYW	PANEL,DRIVER SIDE (GRAY)	1	Rp354.000
20	73312M51K00-U3L	•GARNISH,SPEEDOMETER (SILVER)	1	Rp37.000
21	09409-08349-000 SUB: 09409B08342N000	CLIP	9	Rp4.500
22	73410M83K00-P4Z	BOX,GLOVE (GRAY)	1	Rp385.000
23	73430M75J00-P4Z	•LOCK,GLOVE BOX (GRAY)	1	Rp41.000
24	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
25	73413M65D00-000	•CUSHION,GLOVE BOX	2	Rp6.500
26	73413M82C00-000	•CUSHION,GLOVE BOX	1	Rp11.500
27	73461M54G00-000	CUSHION,GLOVE BOX	2	Rp5.500
28	73811M83K00-P4Z	COVER,STRG COLUMN HOLE (GRAY)	1	Rp109.000
29	09409-08349-000 SUB: 09409B08342N000	CLIP	6	Rp4.500
30	73820M83K00-P4Z	BOX,CTR UPPER (GRAY)	1	Rp426.500
31	73826M51K00-000	•CUSHION	4	Rp6.500
32	09409-08349-000 SUB: 09409B08342N000	CLIP	2	Rp4.500
33	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
34	09409M06322-P4Z	CLIP (GRAY)	1	Rp4.500
35	73831M83K00-P4Z	BEZEL,I/P SWITCH (GRAY)	1	Rp21.000
36	73841M51K00-P4Z	GARNISH,CENTER (GRAY)	1	Rp68.000
37	09409-08349-000 SUB: 09409B08342N000	CLIP	4	Rp4.500
38	73861M51K10-5PK	GARNISH,I/P CTR LOWER (BLACK)	1	Rp99.000	TYPE 1:N/TUNER
39	73871M51K00-ZCP	ORNAMENT,I/P CENTER (GRAY)	1	Rp300.500
40	09409-08349-000 SUB: 09409B08342N000	CLIP (GRAY)	10	Rp4.500
41	03141-0516B-000 SUB: 03141-0512A-000	SCREW	2	Rp3.500
42	73872M51K00-ZCP	ORNAMENT,I/P SHIFT (GRAY)	1	Rp113.500
43	09409-08349-000 SUB: 09409B08342N000	CLIP	4	Rp4.500
44-2	73880M51K00-5PK	GARNISH,I/P SHIFT (GRAY)	1	Rp1.005.500	AT
44-1	73881M51K10-5PK	GARNISH,I/P SHIFT (GRAY)	1	Rp110.500	MT
45	09409-08349-000 SUB: 09409B08342N000	CLIP	4	Rp4.500
46	73891M83K00-P4Z	COVER,I/P SHIFT LOWER (GRAY)	1	Rp323.500
47	75853M83E00-000	SILENCER,I/P SHIFT LOWER COVER	2	Rp27.000
48	09409M07308-P4Z	CLIP (GRAY)	4	Rp7.500
49	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
50	09148M05L04-000	NUT	2	Rp5.000
51	73871-73H00-P4Z SUB: 73871M73H00-P4Z	CAP,INSTRUMENT SIDE (GRAY)	4	Rp9.000
52	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP	2	Rp7.500
53	73121M83K00-000	SILENCER,TOP	1	Rp93.500
54	73921M83K00-U3J	COVER,AIR BAG HOLE	1	Rp286.500
55	09409-08349-000 SUB: 09409B08342N000	•CLIP	9	Rp4.500
56	09136-05062-000	SCREW	2	Rp17.500
57	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
58	37285-75J00-000 SUB: 37285M75J00-000	CAP,OPTION SWITCH HOLE	0	Rp11.000
