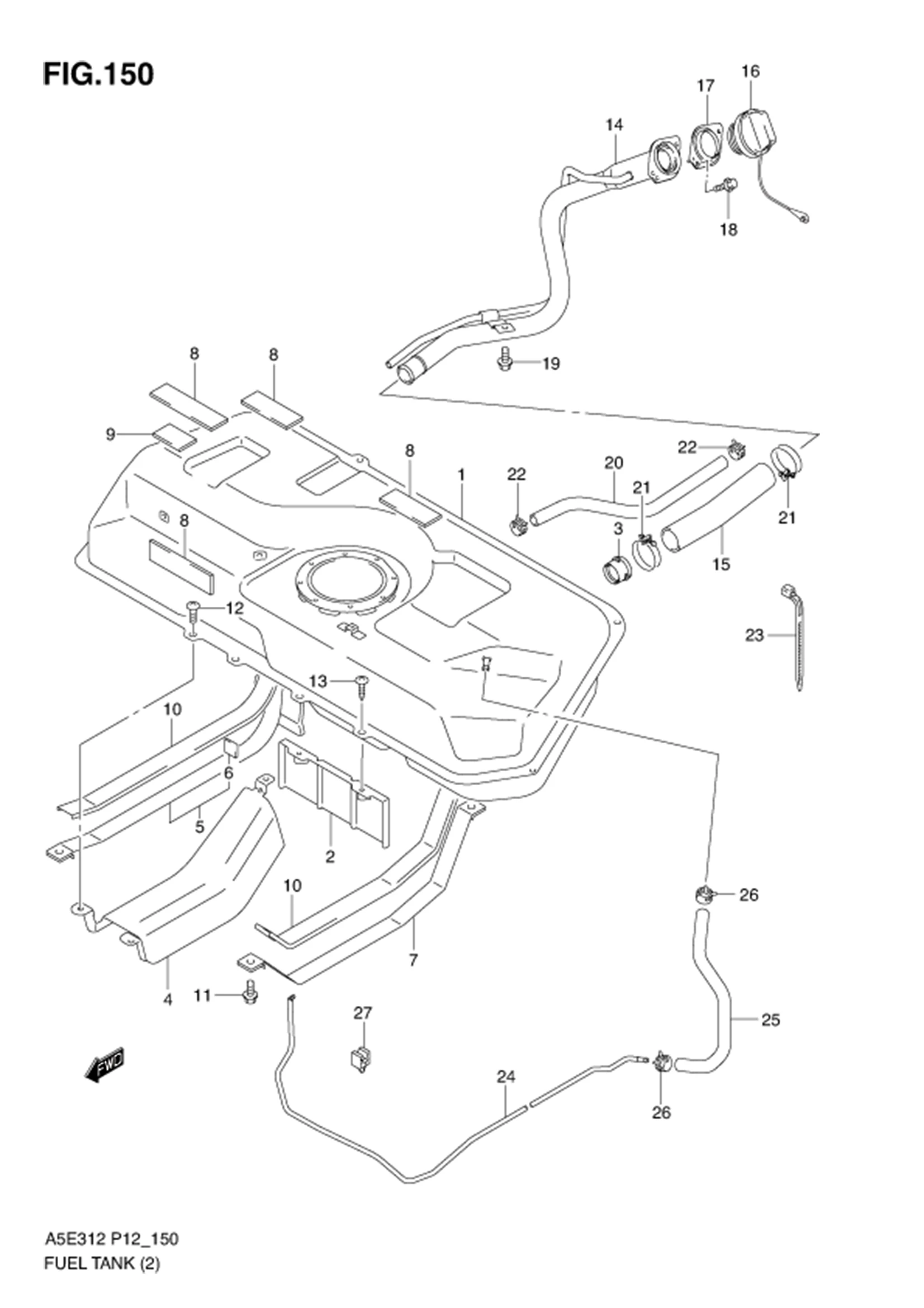

FIG.150 FUEL TANK (TYPE 2)

FIG.150 FUEL TANK (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 89101M83KA1-000
SUB: 89101M83KA0-000		 TANK ASSY,FUEL 1 Rp1.711.000
2 89191M63J00-000
SUB: 89191M75J00-000		 COVER,FUEL TANK 1 Rp36.500
3 89280-77A00-000 VALVE,FUEL TANK INLET 1 Rp107.000
4 DISCONTINUE
SUB: 89311-63J10-000		 PROTECTOR,FUEL TANK 1 -
5 89360-63J00-000 BELT,TANK FIXER RH 1 Rp762.500
6 DISCONTINUE
SUB: 84473-80F00-000		 •PAD,FUEL TANK BELT PLATE 1 -
7 89370-63J00-000 BELT,TANK FIXER LH 1 Rp634.500
8 DISCONTINUE
SUB: 89381-63J00-000		 PAD,FUEL TANK 10 -
9 89383M75J00-000 PAD,FUEL TANK 2 -
10 89385M63J00-000 PAD,FUEL TANK BELT 2 Rp27.500
11 09118-10078-000
SUB: 09118-10073-000		 BOLT 4 Rp19.000
12 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 3 Rp4.000
13 03541-0616A-000 SCREW 2 Rp13.500
14 89210M83K10-000
SUB: 89210M83K00-000		 NECK,FUEL FILLER 1 Rp780.500
15 89241M83K00-000 HOSE,FUEL TANK FILLER 1 Rp115.500
16 89260M60MA0-000
SUB: 89260M60M00-000		 CAP ASSY,FUEL FILLER 1 Rp599.500
17 89285M58J00-000 PACKING,FUEL FILLER 1 Rp13.500
18 09116M05014-000
SUB: 09116-05014-000		 BOLT 2 Rp5.500
19 DISCONTINUE
SUB: 09116-06205-000		 BOLT 1 -
20 09355-11188-600 HOSE 1 Rp92.000 L:600->320
21 09400M45L01-000
SUB: 09400M45311-000		 CLAMP 2 Rp32.500
22 09401M16L01-000
SUB: 09401M16407-000		 CLIP 2 Rp9.000
23 DISCONTINUE
SUB: 09407M19401-000		 CLAMP 1 -
24 89483M83KA0-000 PIPE,FUEL EVAP 1 Rp269.500
25 09355-56128-600 HOSE (5.6X12.4X600) 2 Rp94.000 L:600->110
26 09401-10409-000
SUB: 09401M11415-000		 CLIP 4 Rp7.500
27 09403M08335-000 CLAMP 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
