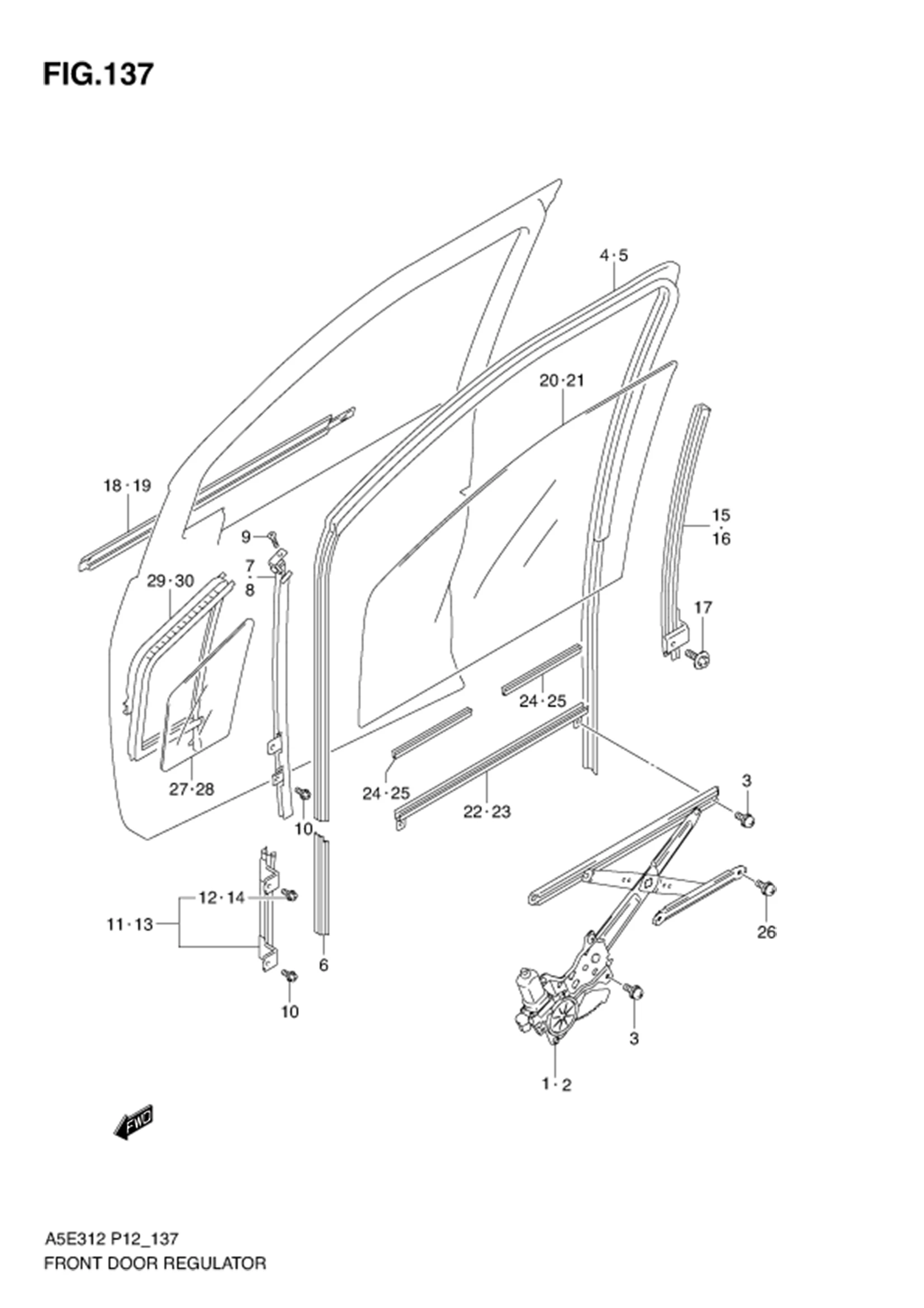

FIG.137 FRONT DOOR REGULATOR

FIG.137 FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83401M83K10-000 REGULATOR ASSY,FRONT WINDOW RH 1 Rp1.122.500
2 83402M83K10-000 REGULATOR ASSY,FRONT WINDOW LH 1 Rp1.122.500
3 02112M7610A-000 SCREW 8 Rp5.500
4 83661M83K00-000 RUN,FRONT DOOR GLASS RH 1 Rp323.500
5 83665M83K00-000 RUN,FRONT DOOR GLASS LH 1 Rp323.500
6 83662M83K00-000 RUN,FRONT DOOR LOWER GLASS 2 Rp42.000
7 81710M83K02-000 SASH,FRONT DOOR UPPER RH 1 Rp178.500
8 81720M83K02-000 SASH,FRONT DOOR UPPER LH 1 Rp178.500
9 02122M0512A-000 SCREW 2 Rp3.500
10 02162-0612A-000 SCREW 6 Rp11.000
11 81750M83K00-000 SASH,FRONT DOOR LOWER RH 1 Rp86.500
12 02162-0612A-000 •SCREW 1 Rp11.000
13 81760M83K00-000 SASH,FRONT DOOR LOWER LH 1 Rp86.500
14 02162-0612A-000 •SCREW 1 Rp11.000
15 81730M83K00-000 SASH,FRONT DOOR REAR RH 1 Rp73.500
16 81740M83K00-000 SASH,FRONT DOOR REAR LH 1 Rp73.500
17 09122-76003-000 SCREW (6X16) 2 Rp15.000
18 83811M83K00-000 WEATHERSTRIP,FRONT DOOR OUT RH 1 Rp142.500
19 83821M83K00-000 WEATHERSTRIP,FRONT DOOR OUT LH 1 Rp142.500
20 84531M83K01-000 GLASS,FRONT DOOR WINDOW RH 1 Rp420.000
21 84536M83K01-000 GLASS,FRONT DOOR WINDOW LH 1 Rp420.000
22 83610-62B00-000 CHANNEL,FRONT GLASS BOTTOM 1 Rp152.500
23 83610-62B00-000 CHANNEL,FRONT GLASS BOTTOM 1 Rp152.500
24 83691M76G00-000 RUBBER,GLASS BOTTOM 2 Rp8.000
25 83691M76G00-000 RUBBER,GLASS BOTTOM 2 Rp8.000
26 02112M7610A-000 SCREW 4 Rp5.500
27 84521M83K01-000 GLASS,DOOR WINDOW FRONT RH 1 Rp75.500
28 84526M83K01-000 GLASS,DOOR WINDOW FRONT LH 1 Rp75.500
29 84614M83K00-000 WEATHERSTRIP,DOOR WINDOW FRONT RH 1 Rp340.500
30 84615M83K00-000 WEATHERSTRIP,DOOR WINDOW FRONT LH 1 Rp340.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
