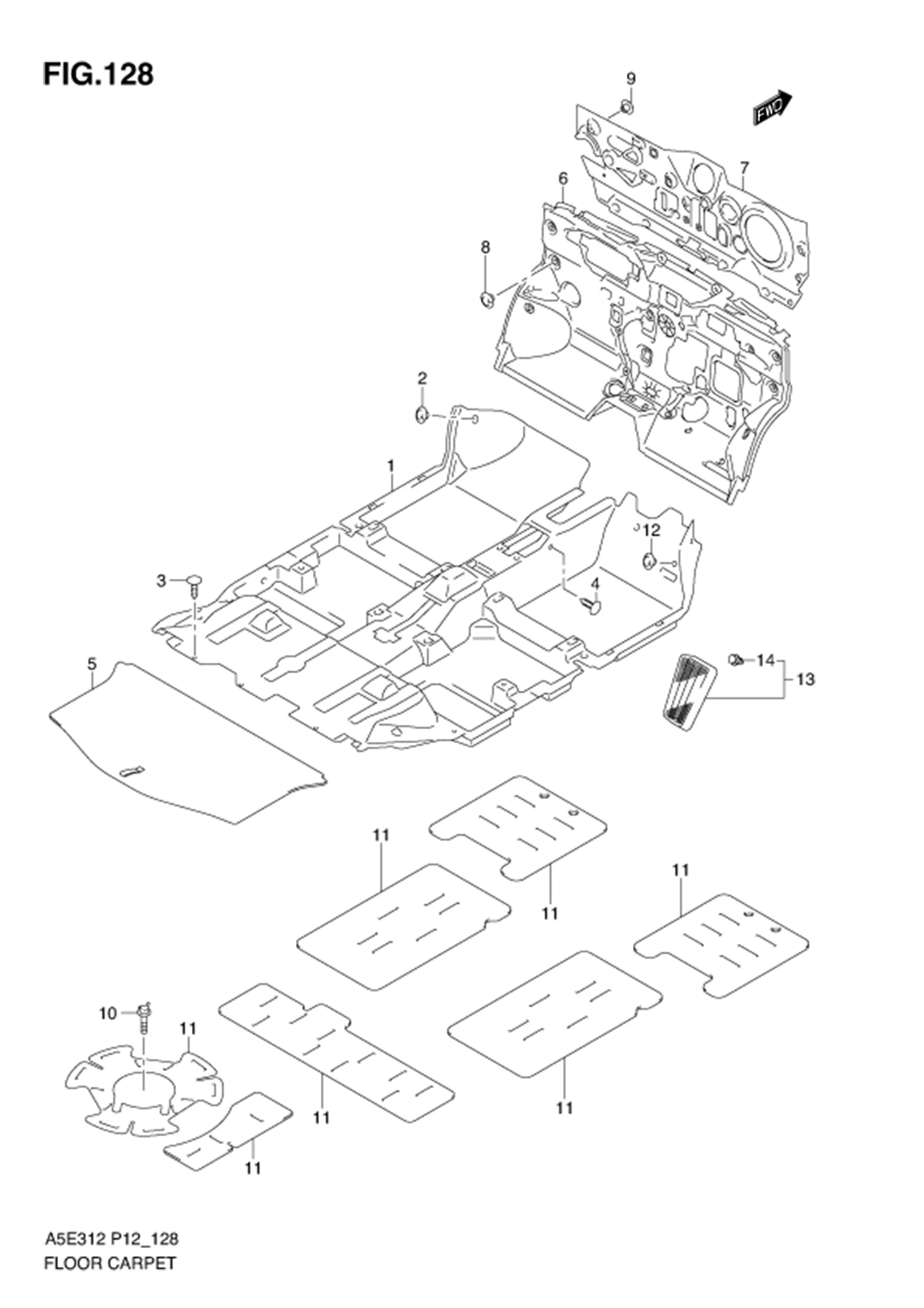

FIG.128 FLOOR CARPET

FIG.128 FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	75110M83K01-R3F	CARPET,FLOOR (BLACK)	1	Rp1.639.000	MT
1-2	75110M83K10-000	CARPET,FLOOR (BLACK)	1	-	AT
2	09148-05037-000	CLIP	2	Rp18.000
3	DISCONTINUE SUB: 75139M70F00-P4Z	CLIP (GRAY)	4	-
4	09409-10304-000	CLIP	2	Rp5.000
5	75130M83K00-R3F	CARPET,LUGGAGE FLOOR (BLACK)	1	Rp628.500
6	75220M83K02-000	SILENCER,DASH PANEL	1	Rp827.500	MT
7	75280M83K01-000	SILENCER,DASH OUTER	1	Rp247.000
8	09148-05037-000	NUT	6	Rp18.000
9	09148-05037-000	NUT	2	Rp18.000
10	75463M75J00-000	SCREW,SPARE TIRE	1	Rp10.500
11	99611-60A01-000	SHEET,FLOOR FR SILENCER	0	Rp1.210.000	CUT AS REQUIRED
12	75471M75J00-000	STOPPER,ACCEL PEDAL	1	Rp8.500
13	75441-62J10-000	PEDAL,FOOTREST	1	Rp247.000	AT
14	09409-11304-000	•CLIP	2	Rp17.000	AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
