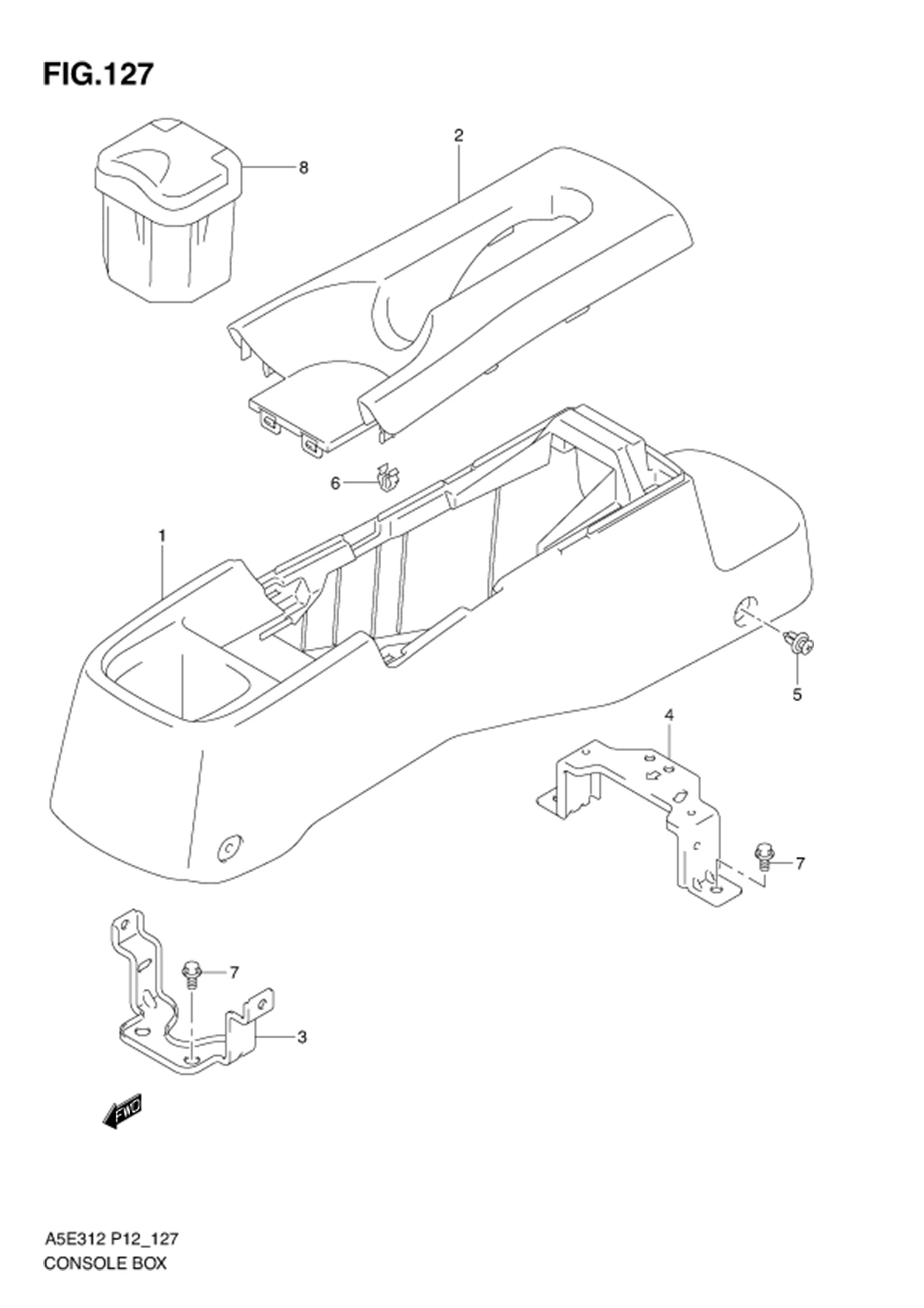

FIG.127 CONSOLE BOX

FIG.127 CONSOLE BOX

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75811M83K00-P4Z	BOX,FLOOR CONSOLE (GRAY)	1	Rp297.500
2	75821M83K00-P4Z	GARNISH,PARKING LEVER (GRAY)	1	Rp142.500
3	75831M51K00-000	BRACKET,FLOOR CONSOLE BOX FR	1	Rp16.000
4	75882M75J00-000	BRACKET,FLOOR CONSOLE BOX RR	1	Rp10.500
5	09409M06322-P4Z	CLIP (GRAY)	4	Rp4.500
6	09409-08349-000 SUB: 09409B08342N000	CLIP	4	Rp4.500
7	02162-0612A-000	BOLT	4	Rp11.000
8	89810-86G10-5PK SUB: 89810-86G00-5PK	ASHTRAY,FRONT (BLACK)	1	Rp637.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
