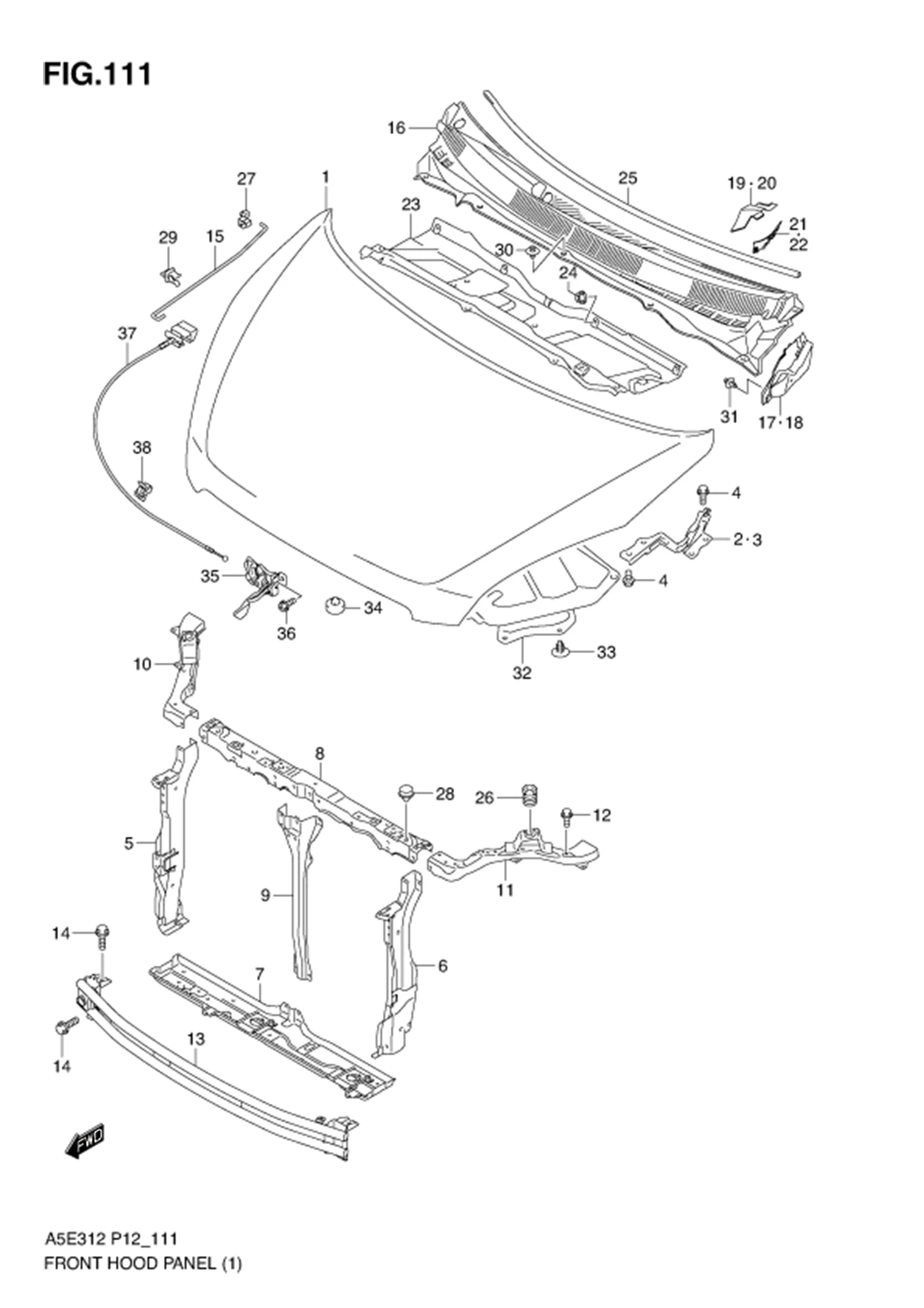

FIG.111 FRONT HOOD PANEL (TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs
1	57300M83K00-000	PANEL ASSY,FRONT HOOD	1	Rp1.812.500
2	57410-83K00-000 SUB: 57410M83K00-000	HINGE,FRONT HOOD RH	1	Rp71.500
3	57420-83K00-000 SUB: 57420M83K00-000	HINGE,FRONT HOOD LH	1	Rp71.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	8	-
5	58110M83K00-000	BRACE,LAMP SUPPORT RH	1	Rp274.500
6	58120M83K00-000	BRACE,LAMP SUPPORT LH	1	Rp247.500
7	58210M83K00-000	MEMBER,RDTR SUPPORT LOWER	1	Rp313.500
8	58230M83K00-000	MEMBER,HOOD LOCK	1	Rp215.500
9	58241M83K00-000	BRACE,HOOD LOCK	1	Rp92.000
10	58250M83K00-000	MEMBER,LAMP SUPPORT RH	1	Rp153.000
11	58260M83K00-000	MEMBER,LAMP SUPPORT LH	1	Rp153.000
12	DISCONTINUE SUB: 01550M06123-000	BOLT	8	-
13	58270M83K00-000	MEMBER,FR BUMPER UPPER	1	Rp385.000
14	01551-0820A-000 SUB: 01551-08203-000	BOLT	4	Rp17.500
15	72311M63J00-000	STAY,FR HOOD	1	Rp13.000
16	72330M83K00-5PK	GARNISH,COWL TOP (BLACK)	1	Rp459.500
17	72333M51K00-000	COVER,GARNISH RH	1	Rp56.500
18	72343M51K00-000	COVER,GARNISH LH	1	Rp54.000
19	72371M83K00-5PK	GARNISH,COWL TOP SIDE RH (BLACK)	1	Rp18.000
20	72372M83K00-5PK	GARNISH,COWL TOP SIDE LH (BLACK)	1	Rp18.000
21	72373M83K00-5PK	COVER,FR FENDER TOP RH (BLACK)	1	Rp18.000
22	72374M83K00-5PK	COVER,FR FENDER TOP LH (BLACK)	1	Rp13.000
23	72380M83K00-000	PANEL,FR COWL UPPER	1	Rp484.000
24	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
25	72362M83K00-000	SEAL,HOOD REAR	1	Rp72.500
26	72372-63J00-000 SUB: 72372M82000-000	CUSHION	2	Rp8.000
27	09209M09L02-000	LINKAGE	1	Rp4.500
28	09321-10023-000 SUB: 09321M10023-000	CUSHION	2	Rp6.000
29	09403M07311-000	HOLDER,STAY	1	Rp4.500
30	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (BLACK)	7	Rp7.500
31	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (BLACK)	6	Rp7.500
32	72440M83K00-000	SILENCER,FR HOOD	1	Rp231.000
33	09409-06325-000 SUB: 09409M06L04-000	CLIP	14	Rp17.000
34	09321-07003-000 SUB: 09321M07003-000	CUSHION	3	Rp5.500
35	82110M83K00-000	LATCH,HOOD	1	Rp135.500
36	09138-06049-000	BOLT (6X12)	3	Rp17.000
37	82160M83K00-000	CABLE,HOOD LATCH RELEASE	1	Rp81.000
38	76238M70F00-000	CLAMP	4	Rp5.000
