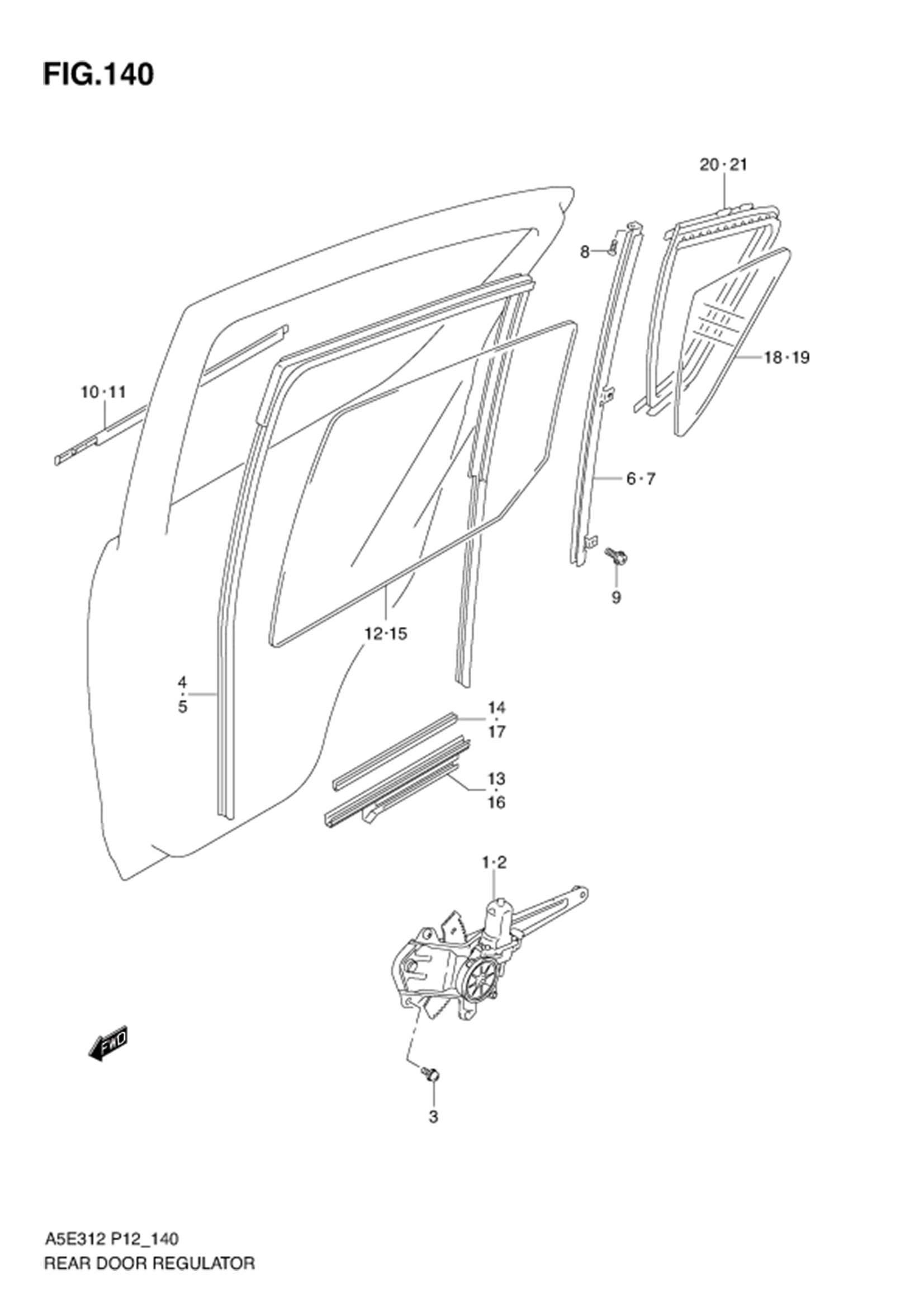

FIG.140 REAR DOOR REGULATOR

FIG.140 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83501M83K10-000 REGULATOR ASSY,REAR WINDOW RH 1 Rp1.005.500
2 83502M83K10-000 REGULATOR ASSY,REAR WINDOW LH 1 Rp1.005.500
3 02112M7610A-000 SCREW 4 Rp5.500
4 83671M83K00-000 RUN,REAR DOOR GLASS RH 1 Rp314.000
5 83675M83K00-000 RUN,REAR DOOR GLASS LH 1 Rp314.000
6 81770M51K00-000
SUB: 81770M83K00-000		 SASH,REAR CENTER RH 1 Rp230.500
7 81780M51K00-000
SUB: 81780M83K00-000		 SASH,REAR CENTER LH 1 Rp230.500
8 02122M0512A-000 SCREW 2 Rp3.500
9 02162-0612A-000 SCREW 4 Rp11.000
10 83831M83K00-000 WEATHERSTRIP,REAR DOOR OUT RH 1 Rp145.000
11 83841M83K00-000 WEATHERSTRIP,REAR DOOR OUT LH 1 Rp145.000
12 84541M83K01-000 GLASS,REAR DOOR WINDOW RH 1 Rp246.000
13 83630M72J00-000 CHANNEL,REAR GLASS BOTTOM 1 Rp23.500
14 83691-60A00-000
SUB: 83691M63J00-000		 RUBBER,REAR GLASS BOTTOM CHANNEL 1 Rp37.000
15 84546M83K01-000 GLASS,REAR DOOR WINDOW LH 1 Rp246.000
16 83640M72J00-000 CHANNEL,REAR GLASS BOTTOM 1 Rp23.500
17 83691-60A00-000
SUB: 83691M63J00-000		 RUBBER,REAR GLASS BOTTOM CHANNEL 1 Rp37.000
18 84551M83K01-000 GLASS,REAR DOOR PARTITION RH 1 Rp122.500
19 84556M83K01-000 GLASS,REAR DOOR PARTITION LH 1 Rp122.500
20 84665M83K00-000 WEATHERSTRIP,REAR DOOR PARTITION RH 1 Rp387.000
21 84675M83K00-000 WEATHERSTRIP,REAR DOOR PARTITION LH 1 Rp387.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
