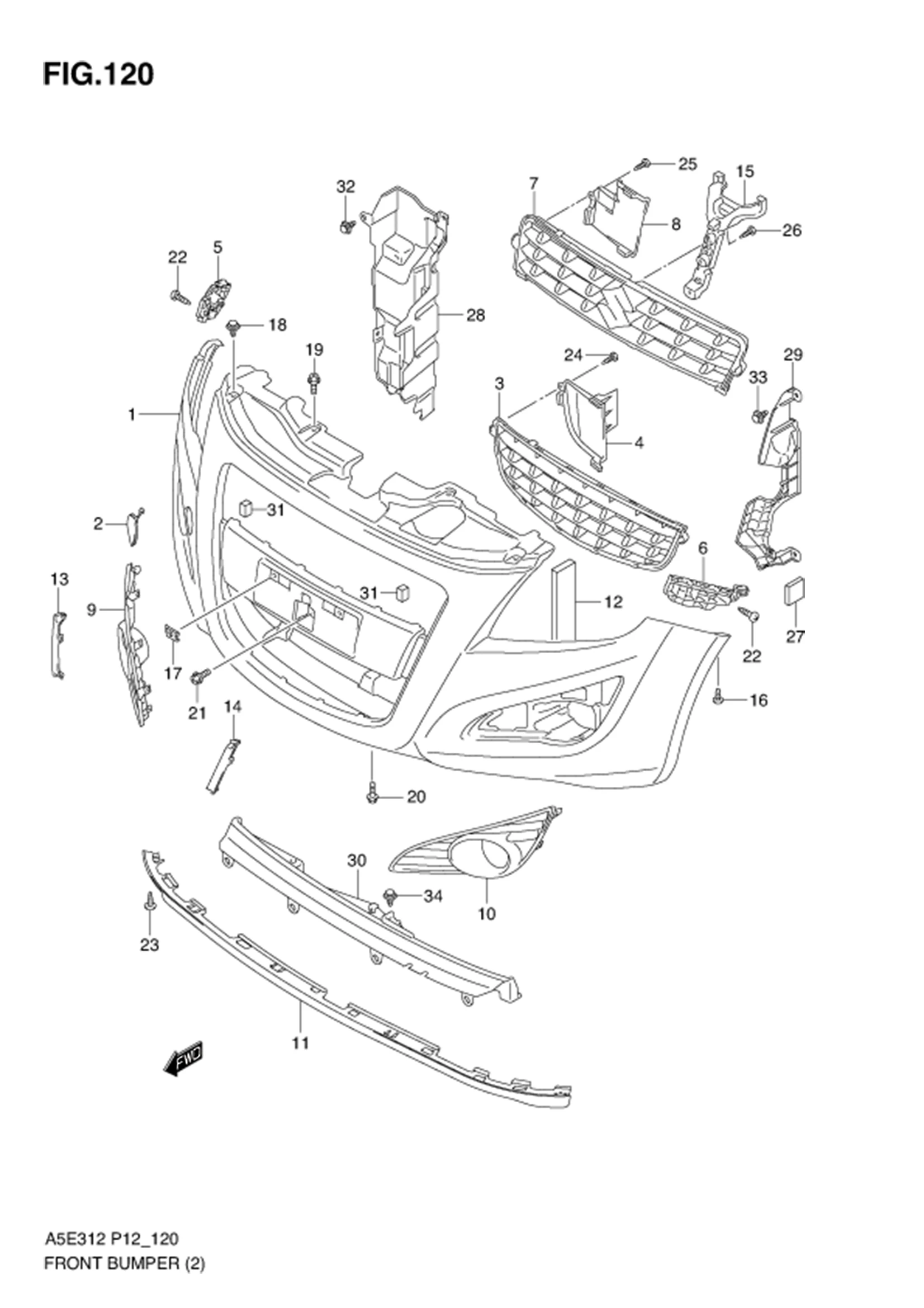

FIG.120 FRONT BUMPER (TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711M85L00-5PK	BUMPER,FRONT (BLACK)	1	Rp939.000	PAINT TO MATCH
2	71712M85L00-5PK SUB: 71712M85L00-000	CAP,FRONT BUMPER	1	Rp16.000
3	71721M85L00-5PK	GRILLE,RADIATOR LOWER (BLACK)	1	Rp115.500
4	71722M85L00-000	COVER,RADIATOR LOWER GRILLE (BLACK)	1	-
5	71731M83K00-000	HOLDER,FR BUMPER SIDE RH	1	Rp35.000
6	71732M83K00-000	HOLDER,FR BUMPER SIDE LH	1	Rp35.000
7	71741M85L00-000	GRILLE,RADIATOR UPPER (BLACK)	1	-
8	71742M85L00-000	COVER,RADIATOR UPPER GRILLE (BLACK)	1	-
9	71751M85L10-5PK	BEZEL,FRONT FOG LAMP RH (BLACK)	1	Rp47.500
10	71761M85L10-5PK	BEZEL,FRONT FOG LAMP LH (BLACK)	1	Rp47.500
11	71770M75J00-000	SKIRT,FR AIR DAM	1	Rp420.000
12	71771M85L00-000	PAD,FR BUMPER	1	Rp21.500
13	71781M85L00-5PK	GARNISH,FRONT BUMPER RH (BLACK)	1	Rp10.500
14	71782M85L00-5PK	GARNISH,FRONT BUMPER LH (BLACK)	1	Rp10.500
15	71791M85L00-000	BRACE,FRONT BUMPER UPPER	1	Rp42.500
16	09136-05068-000	SCREW (5X20)	2	Rp15.000
17	08315-11069-000 SUB: 09148M06022-000	NUT	2	Rp2.500
18	09409M08006-000 SUB: 09409M08L01-000	CLIP	2	Rp5.000
19	02162-0616A-000	SCREW	4	Rp3.000
20	02162-0616A-000	SCREW	3	Rp3.000
21	02162-0616A-000	SCREW	1	Rp3.000
22	03541-0512A-000	SCREW	4	Rp3.500
23	03541-0512A-000	SCREW	6	Rp3.500
24	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
25	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
26	03541-0516A-000 SUB: 03541B0516AN000	SCREW	5	Rp3.500
27	71773M85L00-000	PAD,LAMP SUPPORT BRACE OUTER	1	Rp6.500
28	72393M85L00-000	COVER,ENGINE FRONT	1	Rp138.500
29	72397M83K00-000	COVER,FRONT END SIDE LH	1	Rp33.500
30	72398M83K00-000	COVER,FRONT END LOWER	1	Rp124.000
31	76112M68K00-000	PAD,FRONT PILLAR TRIM	2	Rp6.000
32	09409M08006-000 SUB: 09409M08L01-000	CLIP	4	Rp5.000
33	09409M08006-000 SUB: 09409M08L01-000	CLIP	3	Rp5.000
34	09409M08006-000 SUB: 09409M08L01-000	CLIP	5	Rp5.000
