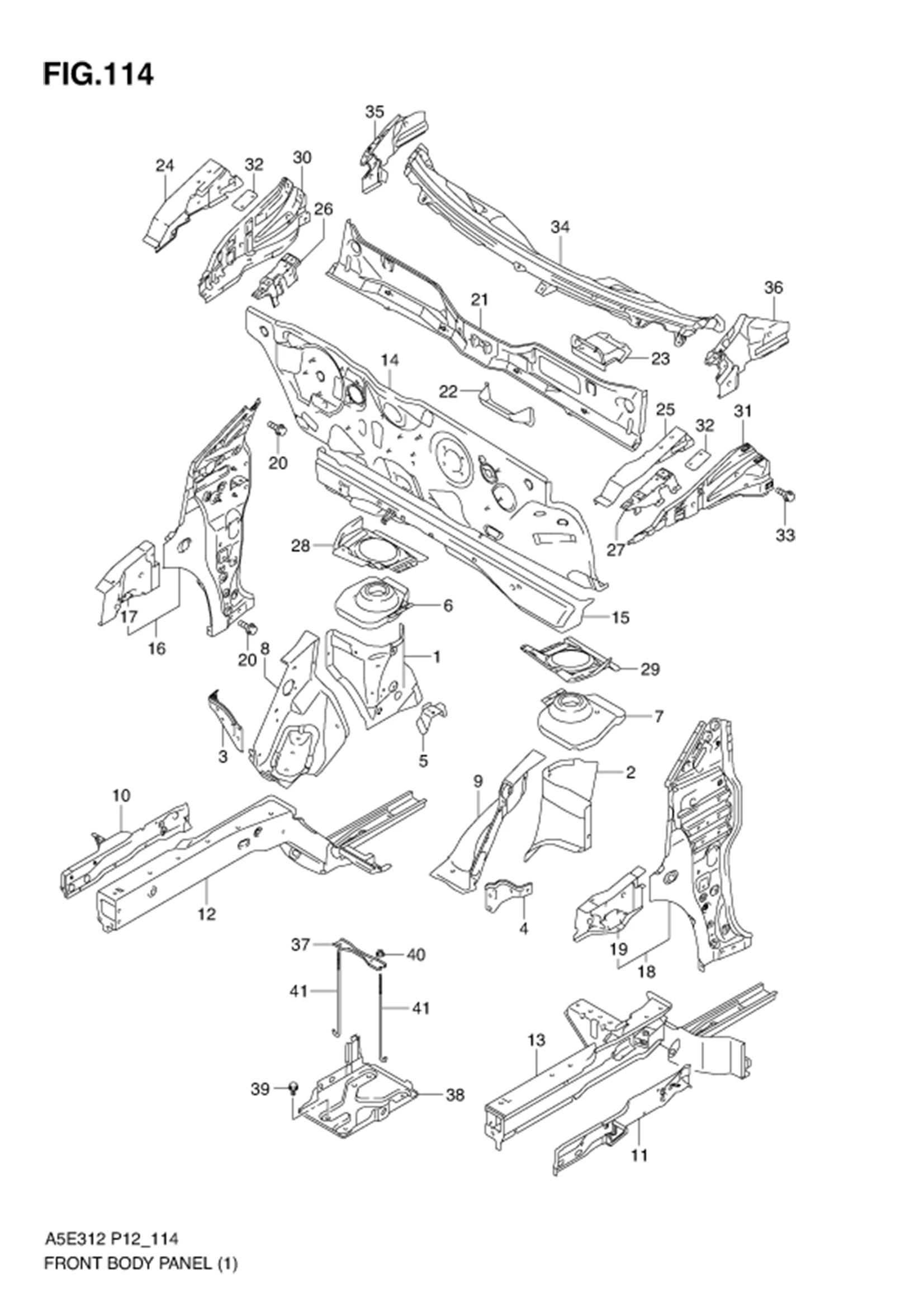

FIG.114 FRONT BODY PANEL (TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58311M75J00-000	PANEL,FENDER APRON RH	1	Rp198.000
2	58411M75J10-000	PANEL,FENDER APRON LH	1	Rp188.000
3	58312M83K00-000	BRACKET,FR FENDER LWR RH	1	Rp25.000
4	58412M83K00-000	BRACKET,FR FENDER LWR LH	1	Rp23.000
5	58313M75J00-000	BRACKET,ABS	1	Rp16.000
6	58320M75J00-000	BRACKET,SUSPENSION UPR RH	1	Rp151.000
7	58420M75J00-000	BRACKET,SUSPENSION UPR LH	1	Rp251.500
8	58330M75J00-000	EXTENSION,FENDER APRON RH	1	Rp255.500
9	58431M75J00-000	EXTENSION,FENDER APRON LH	1	Rp193.000
10	58340M83K00-000	PANEL,APRON SIDE MBR OTR RH	1	Rp341.500
11	58440M83K00-000	PANEL,APRON SIDE MBR OTR LH	1	Rp334.000
12	58600M85L00-000 SUB: 58600M83K00-000	MEMBER,APRON SIDE RH	1	Rp1.812.500
13	58700M83K00-000	MEMBER,APRON SIDE LH	1	Rp1.942.500
14	59100M83K00-000	PANEL,DASH	1	Rp723.500
15	59221M75J00-000 SUB: 59220M75J00-000	CROSSMEMBER,DASH UPPER	1	Rp228.500
16	59230M83K00-000	PANEL,DASH SIDE RH	1	Rp658.500
17	59230M75J00-000 SUB: 59232M75J00-000	•PANEL,DASH SIDE FR RH	1	Rp531.000
18	59280M83K00-000	PANEL,DASH SIDE LH	1	Rp653.500
19-1	59282M75J00-000	•PANEL,DASH SIDE FR LH	1	Rp55.500
19-2	59282M83K00-000	•PANEL,DASH SIDE FR LH	1	-	FROM 2010-4
20	DISCONTINUE SUB: 01550M06123-000	BOLT	4	-
21	59311M51K00-000 SUB: 59311M83K00-000	PANEL,COWL UPPER	1	Rp560.500
22	59312M83K00-000	SEALING,COWL VENTILATOR	1	Rp31.500
23	59320M51K00-000	HANGER,PEDAL BRACKET	1	Rp100.000
24	59331M83K00-000	PANEL,COWL SIDE RH	1	Rp86.500
25	59381M83K00-000	PANEL,COWL SIDE LH	1	Rp87.500
26	59332M83K00-000	BRACKET,FRONT FENDER RH	1	Rp32.500
27	59382M83K00-000	BRACKET,FRONT FENDER LH	1	Rp32.500
28	59333M83K00-000	EXTENSION,COWL UPPER RH	1	Rp99.000
29	59334M83K00-000	EXTENSION,COWL UPPER LH	1	Rp98.000
30	59410M83K00-000	MEMBER,COWL SIDE OUTER RH	1	Rp219.500
31	59460M83K00-000	MEMBER,COWL SIDE OUTER LH	1	Rp219.500
32	59744M55KA0-000	PATCH,FRONT HOOD HINGE	2	Rp10.000
33	01551-0820A-000 SUB: 01551-08203-000	BOLT	6	Rp17.500
34	59710M83K00-000	PANEL,COWL TOP	1	Rp358.500
35	59741M83K00-000	PANEL,COWL TOP SIDE RH	1	Rp130.000
36	59751M83K00-000	PANEL,COWL TOP SIDE LH	1	Rp130.000
37	72511-78000-000 SUB: 72511M78000-000	BAND,BATTERY	1	Rp9.000
38	72520M83K00-000	TRAY,BATTERY	1	Rp191.500
39	DISCONTINUE SUB: 01550B0612AN000	SCREW	3	-
40	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
41	72523-66H00-000	BOLT,BATTERY	2	Rp60.000
