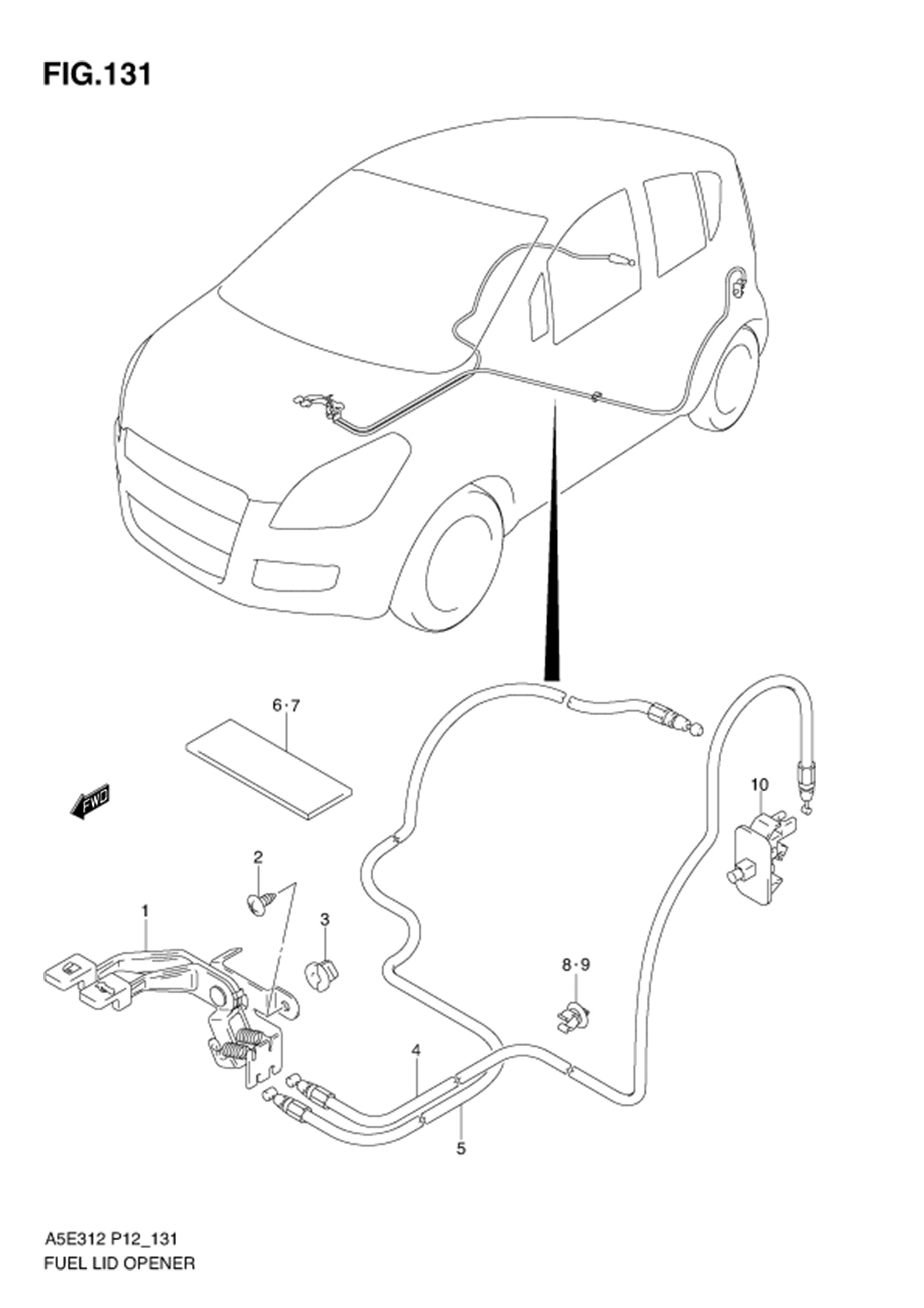

FIG.131 FUEL LID OPENER

FIG.131 FUEL LID OPENER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	83310M75J00-000	LEVER,FUEL LID OPENER	1	Rp65.000
2	03141M0612A-000 SUB: 03241-0612A-000	SCREW	1	Rp4.500
3	71851M70F00-000	NUT	1	Rp4.000
4	76430M83K00-000	CABLE,FUEL LID OPENER	1	Rp70.500
5	76440M83K00-000	CABLE,BACK DOOR OPENER	1	Rp97.000
6	36930M82000-000	TAPE,FUEL LID OPENER CABLE	2	Rp6.500
7	36930M82000-000	TAPE,BACK DOOR OPENER CABLE	3	Rp6.500
8	DISCONTINUE SUB: 75411M76G20-000	CLAMP,CABLE	5	-
9	DISCONTINUE SUB: 75411M76G20-000	CLAMP,BACK DOOR OPENER CABLE	3	-
10	76520M74K01-000	OPENER,FUEL LID	1	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
