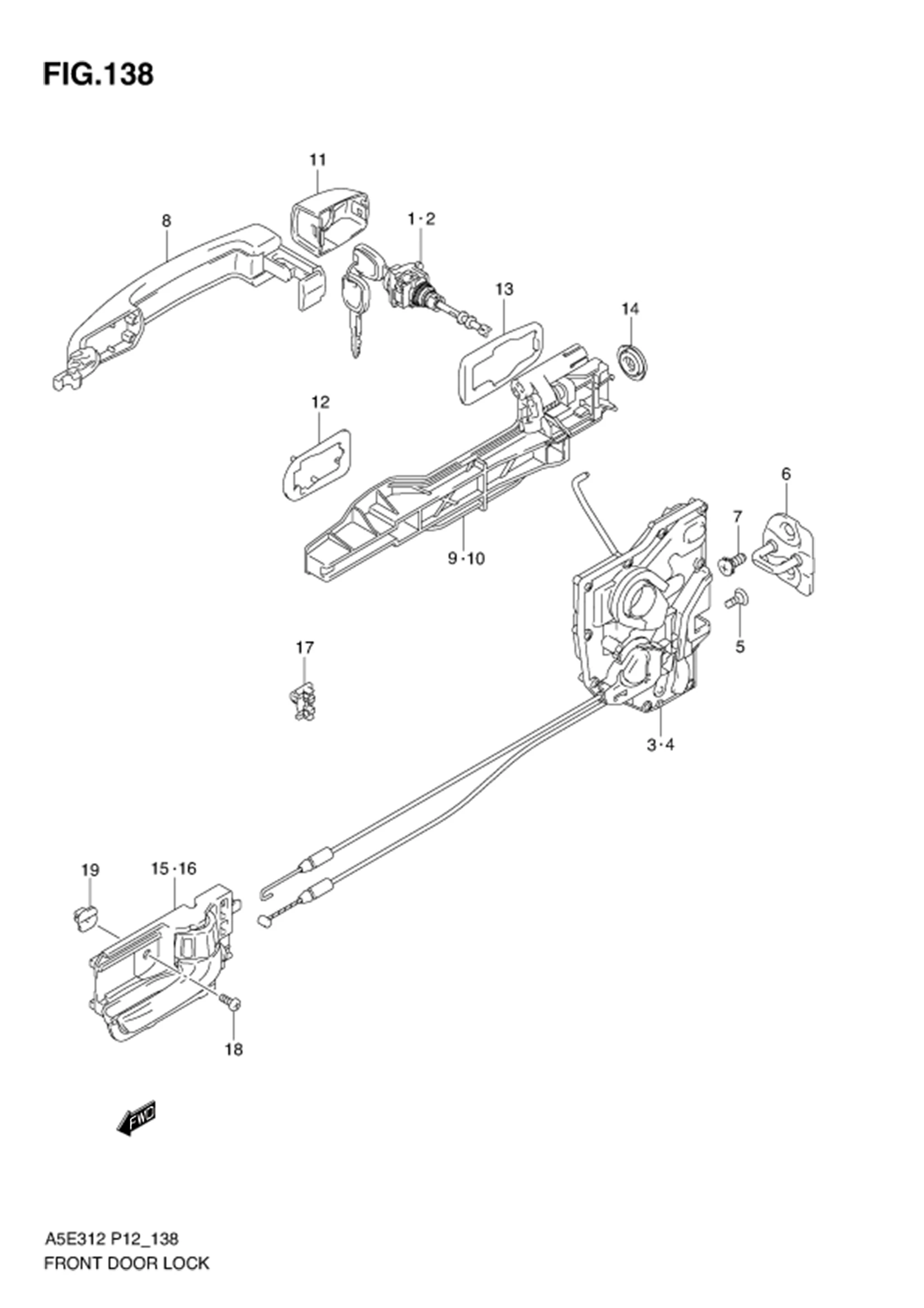

FIG.138 FRONT DOOR LOCK

FIG.138 FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82270M63830-000 CYLINDER,FRONT DOOR LOCK RH 1 Rp391.000
2 82280M63830-000 CYLINDER,FRONT DOOR LOCK LH 1 Rp391.000
3 82201M83K64-000
SUB: 82201M83K62-000		 LATCH ASSY,FRONT DOOR RH 1 Rp1.022.000
4 82202M83K62-000 LATCH ASSY,FRONT DOOR LH 1 Rp1.363.500
5 09137-06028-000 SCREW (6X18) 6 Rp18.500
6 DISCONTINUE
SUB: 82610M75J00-000		 STRIKER,DOOR LATCH 2 -
7 09137-08014-000
SUB: 09137-08004-000		 SCREW (8X18) 4 Rp23.000
8 82812M83K00-5PK HANDLE,SIDE DOOR OUT (BLACK) 2 Rp73.500 TYPE 1,TYPE 2
9 82811M83K00-000 FRAME,DOOR OUT RH 1 Rp136.000
10 82821M83K00-000 FRAME,DOOR OUT LH 1 Rp136.000
11 82813M83K00-5PK CAP,DOOR OUT (BLACK) 2 Rp17.000 TYPE 1,TYPE 2
12 82814M83K00-000 PAD,DOOR OUT 2 Rp10.000
13 82815M83K00-000 CUSHION,DOOR OUT 2 Rp16.000
14 09250M25L02-000
SUB: 09250M25L01-000		 PLUG (OD:33.5) 2 Rp5.500
15 83110M75J31-BWR
SUB: 83110M75J30-BWR		 HANDLE,DOOR INSIDE RH (GRAY) 1 Rp80.000
16 83130M75J31-BWR
SUB: 83130M75J30-BWR		 HANDLE,DOOR INSIDE LH (GRAY) 1 Rp80.000
17 83271M50E00-000 CLIP,INSIDE HANDLE CABLE 2 Rp6.500
18 09132-05058-000 SCREW (5X12) 2 Rp14.000
19 83119M75J00-000 NUT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
