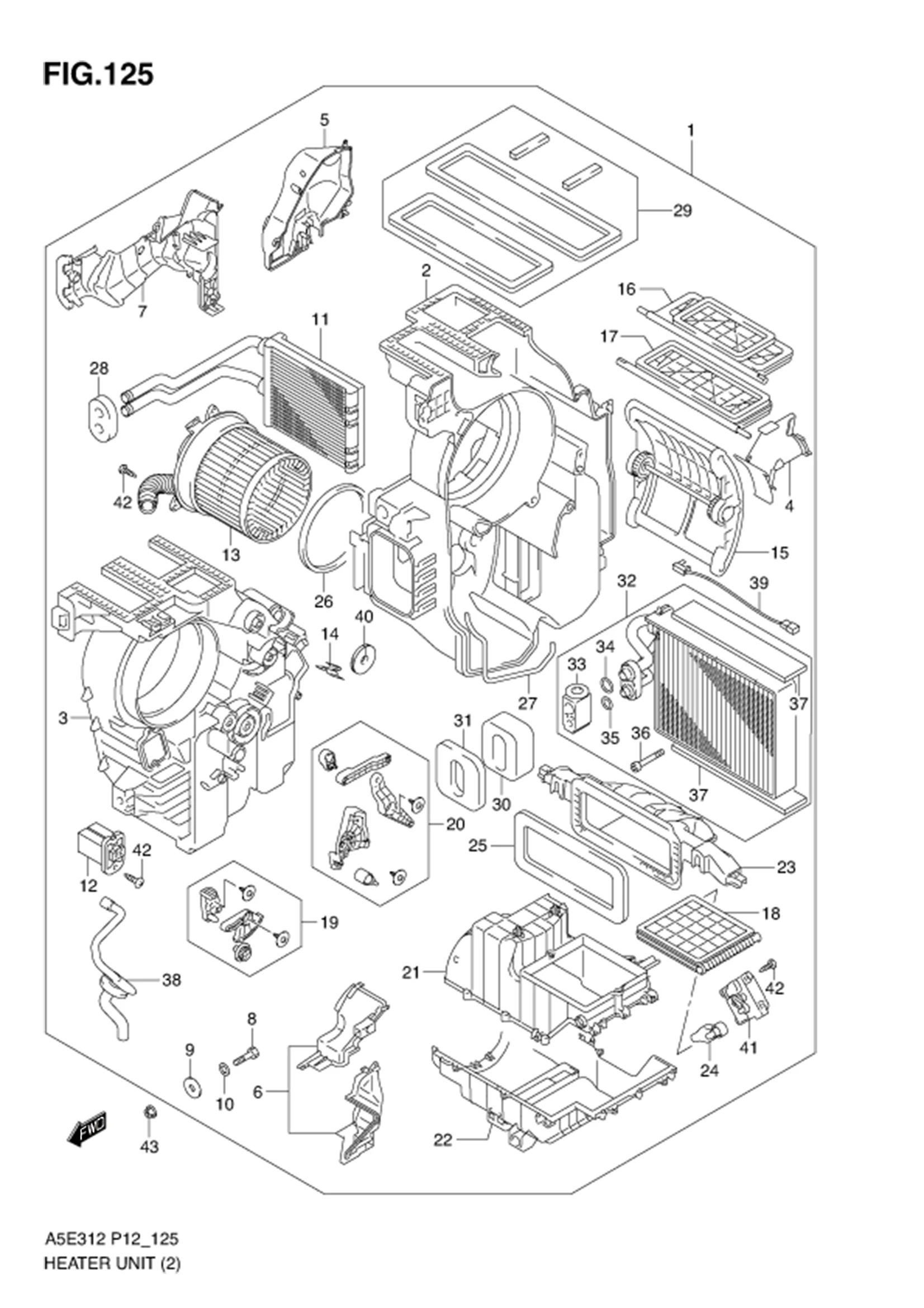

FIG.125 HEATER UNIT (FROM 2012-11)

No	No. Part	Description	Qty	Price Per Pcs
1	74100M83K42-000 SUB: 74100M83K00-000	HEATER UNIT	1	Rp8.591.500
2	74111M83K40-000	•CASE,HEATER RH	1	Rp245.000
3	74112M83K40-000	•CASE,HEATER LH	1	Rp232.500
4	74113M83K00-000	•GUIDE,AIR MIX	1	Rp15.000
5	74114M83K00-000	•DUCT,FOOT B	1	Rp30.500
6	74115M83K00-000	•DUCT,FOOT A	1	Rp43.500
7	74116M83K00-000	•COVER,HIGH PRESS PIPE	1	Rp48.000
8	74117M51K00-000 SUB: 74117M83K00-000	•BOLT,MOUNTING	4	Rp15.000
9	74118M51K00-000	•PACKING,STUD BOLT	4	Rp22.500
10	74119M51K00-000 SUB: 74119M83K00-000	•WASHER	4	Rp7.500
11	74120M83K00-000 SUB: 74120M83K10-000	•HEATER CORE ASSY	1	Rp1.061.500
12	74140M51K01-000	•RESISTER,HVAC	1	Rp242.500
13	74150M83K00-000 SUB: 74150M83K10-000	•BLOWER ASSY	1	Rp1.301.500
14	74151M51K00-000	•CLAMP	2	Rp15.000
15	74171M51K00-000	•DOOR ASSY,SLIDE	1	Rp396.500
16	74172M51K00-000 SUB: 74172M83K00-000	•DOOR ASSY,VENT/DEF	1	Rp90.000
17	74173M51K00-000 SUB: 74173M83K00-000	•DOOR ASSY,FOOT	1	Rp96.000
18	74174M51K00-000 SUB: 74174M83K00-000	•DOOR ASSY,INTAKE	1	Rp106.500
19	74190M83K00-000	•LEVER,MIX SET	1	Rp30.500
20	74180M83K00-000	•LEVER,MODE SET	1	Rp41.500
21	74212M83K00-000	•CASE,SHUTTER BOX UPPER	1	Rp89.500
22	74211M83K00-000	•CASE,SHUTTER BOX LOWER	1	Rp70.500
23	74213M83K00-000	•CASE,DUCT INLET	1	Rp84.500
24	74221M51K00-000 SUB: 74221M83K00-000	•LEVER,INTAKE	1	Rp10.000
25	74241M83K00-000 SUB: 74241M83K10-000	•PACKING,SHUTTER BOX	1	Rp27.000
26	74242M83K00-000 SUB: 74242M83K10-000	•PACKING,INTAKE	1	Rp13.500
27	74243M51K00-000	•PACKING,CASE	1	Rp30.500
28	74244M83K00-000 SUB: 74244M83K10-000	•PACKING,DASH PANEL	1	Rp13.500
29	74240M83K00-000	•PACKING,SET VENT/DEF	1	Rp28.500
30	74252M83K10-000	•GROMMET,EXPANSION VALVE	1	Rp58.000
31	74253M51K00-000 SUB: 74253M83K00-000	•PACKING,DASH THERMO EXPANSION VALVE	1	Rp34.500
32	95410M83K20-000	•EVAPORATOR ASSY	1	Rp4.487.500
33	95431M51K00-000 SUB: 95431M51K20-000	••VALVE ASSY,EXPANSION	1	Rp536.500
34	95419M51K00-000	••O RING,UPPER	1	Rp16.000
35	95418M51K00-000	••O RING,LOWER	1	Rp6.500
36	95417M51K00-000 SUB: 95417M83K00-000	••BOLT (5X35)	2	Rp15.000
37	95423M83K00-000	••PACKING,EVAPO INSULATOR TANK	2	Rp34.000
38	95481M83K00-000	•HOSE,DRAIN	1	Rp165.500
39	95541M51K00-000	•SENSOR ASSY,INTAKE	1	Rp135.500
40	95542M51K00-000 SUB: 95542M83K00-000	•GROMMET,THERMISTOR	1	Rp13.000
41	95652M51K00-000	•ACTUATOR,INTAKE	1	Rp570.000
42	95654M51K00-000	•SCREW,TAPPING	27	Rp61.000
43	08361M2506A-000	NUT	4	Rp7.000
