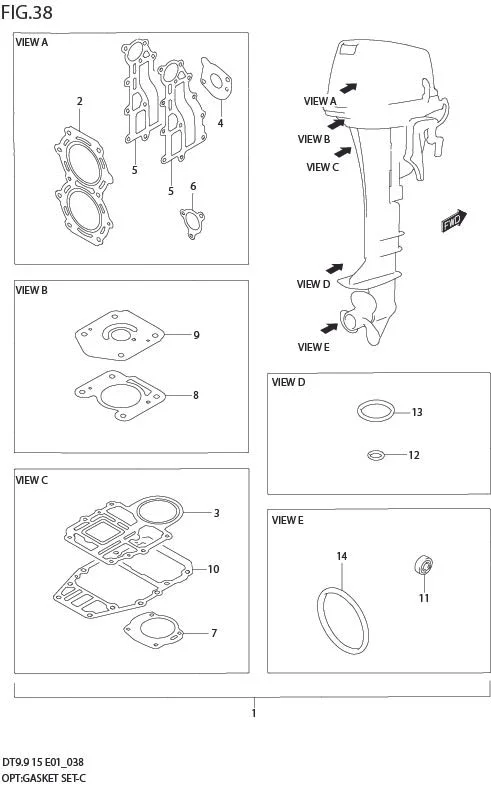

FIG 38 OPT : GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11410-93835-000 SUB: 11410-93834-000	GASKET SET	1	Rp1.037.500
2	11141-93960-000 SUB: 11141-93950-000	?GASKET, CYLINDER HEAD	1	Rp193.000
3	11433-90L00-000 SUB: 11433-93912-000	?GASKET, UPPER OIL SEAL HSG	1	Rp255.500
4	13125-91D00-000	?GASKET, CARBURETOR	1	Rp28.500
5	14151-93912-000	?GASKET, EXHAUST	2	Rp115.500
6	17685-91D00-000	?GASKET, THERMOSTAT COVER	1	Rp30.000
7	14213-93910-000	?GASKET, EXHAUST TUBE	1	Rp35.000
8	17452-93910-000	?GASKET, WATER INLET HSG	1	Rp34.000
9	17472-93911-000	?GASKET, CASE UNDER	1	Rp34.000
10	52113-93910-000	?GASKET, DRIVE SHAFT HSG	1	Rp153.500
11	09168-10022-000	?GASKET (10X17X1.5)	3	Rp10.500
12	09280-05005-000	?O RING (D:3.5,ID:4.9)	1	Rp13.500
13	59291-94J00-000 SUB: 09280-19006-000	?O RING (D:3.6,ID:18.6)	1	Rp31.000
14	09280-57002-000	?O RING (D:3.5,ID:56.6)	1	Rp18.000
15-21	99011-93979-040	MANUAL, OWNER'S	1	Rp150.500	LEAFLET TYPE MODEL:10
15-38	99011-93974-01H	MANUAL, OWNER'S	1	-	DUTCH MODEL:05
15-22	99011-93982-040	MANUAL, OWNER'S	1	Rp150.500	LEAFLET TYPE DT9.9:110001% DT15:110001%
15-23	99011-93946-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:01
15-24	99011-93947-040	MANUAL, OWNER'S	1	-	KEROSENE MODEL:02
15-25	99011-93948-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:03
15-26	99011-93949-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:04
15-27	99011-939A0-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:05
15-28	99011-939A1-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:06
15-29	99011-939A2-040	MANUAL, OWNER'S	1	Rp122.000	KEROSENE MODEL:07
15-30	99011-939A3-040	MANUAL, OWNER'S	1	Rp150.500	KEROSENE MODEL:08
15-31	99011-939A4-040	MANUAL, OWNER'S	1	Rp150.500	KEROSENE MODEL:09
15-32	99011-939A5-040	MANUAL, OWNER'S	1	Rp150.500	KEROSENE MODEL:10
15-33	99011-939A6-040	MANUAL, OWNER'S	1	Rp150.500	KEROSENE DT9.9K:110001%
15-34	99011-93970-01H	MANUAL, OWNER'S	1	Rp122.000	DUTCH MODEL:01
15-35	99011-93971-01H	MANUAL, OWNER'S	1	-	DUTCH MODEL:02
15-36	99011-93972-01H	MANUAL, OWNER'S	1	-	DUTCH MODEL:03
15-37	99011-93973-01H	MANUAL, OWNER'S	1	-	DUTCH MODEL:04
15-38	99011-93974-01H	MANUAL, OWNER'S	1	-	DUTCH MODEL:05
15-10	99011-93979-057	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:10
15-1	99011-93970-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:01
15-2	99011-93971-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:02
15-3	99011-93972-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:03
15-4	99011-93973-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:04
15-5	99011-93974-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:05
15-6	99011-93975-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:06
15-7	99011-93976-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:07
15-8	99011-93977-057	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:08
15-9	99011-93978-057	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE MODEL:09
15-20	99011-93978-040	MANUAL, OWNER'S	1	Rp150.500	LEAFLET TYPE MODEL:09
15-11	99011-93982-057	MANUAL, OWNER'S	1	Rp150.500	BOOKLET TYPE
15-12	99011-93970-040	MANUAL, OWNER'S	1	Rp122.000	LEAFLET TYPE MODEL:01
15-13	99011-93971-040	MANUAL, OWNER'S	1	-	LEAFLET TYPE MODEL:02
15-14	99011-93972-040	MANUAL, OWNER'S	1	Rp150.500	LEAFLET TYPE MODEL:03
15-15	99011-93973-040	MANUAL, OWNER'S	1	Rp122.000	LEAFLET TYPE MODEL:04
15-16	99011-93974-040	MANUAL, OWNER'S	1	Rp122.000	LEAFLET TYPE MODEL:05
15-17	99011-93975-040	MANUAL, OWNER'S	1	Rp122.000	LEAFLET TYPE MODEL:06
15-18	99011-93976-040	MANUAL, OWNER'S	1	Rp122.000	LEAFLET TYPE MODEL:07
15-19	99011-93977-040	MANUAL, OWNER'S	1	Rp150.500	LEAFLET TYPE MODEL:08
