  4. Engine
  5. FIG 23 LOWER COVER

DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASEFIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBEFIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMPFIG 10 STARTERFIG 11 THROTTLE CONTROLFIG 12 CLUTCHFIG 13 TRANSMISSIONFIG 14 STARTING MOTORFIG 15 MAGNETOFIG 16 IGNITION COILFIG 17 HARNESSFIG 18 ELECTRICALFIG 19 CLAMP BRACKETFIG 20 SWIVEL BRACKETFIG 21 DRIVE SHAFT HOUSINGFIG 22 GEAR CASEFIG 23 LOWER COVERFIG 24 ENGINE COVERFIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLEFIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTORFIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTSFIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINKFIG 38 OPT : GASKET SET

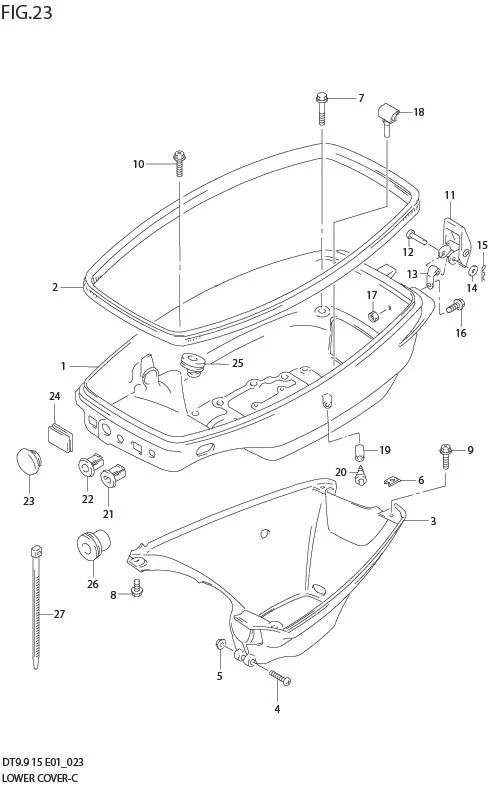

FIG 23 LOWER COVER

FIG 23 LOWER COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 61111-93953-0EP COVER, ENGINE LOWER (BLACK) 1 Rp2.263.500 MODEL:02%
1-1 61111-93953-0ED
SUB: 61111-93952-0ED		 COVER, ENGINE LOWER (GRAY) 1 Rp2.107.000
2 61112-93930-000 RUBBER, LOWER COVER 1 Rp382.500
3-1 61131-93903-0ED COVER, ENGINE HOLDER (GRAY) 1 Rp729.000
3-2 61131-93903-0EP COVER, ENGINE HOLDER (BLACK) 1 Rp3.069.500 MODEL:02%
4 09125-05124-000 SCREW (5X25) 1 Rp20.000
5 09140-05005-000 NUT 1 Rp20.000
6 09148-06017-000
SUB: 09148B06017N000		 NUT 2 Rp15.500
7 01550-06357-000 BOLT 2 Rp18.500
8 DISCONTINUE
SUB: 29103-93J00-000		 BOLT (6X12) 2 -
9 09136-06145-000 BOLT (6X20) 2 Rp11.500
10 02162-06257-000 SCREW 2 Rp9.500
11 61610-90L00-000
SUB: 61610-93901-000		 FASTENER 1 Rp198.000
12 61616-93EL0-000
SUB: 61616-93E00-000		 PIN, LEVER 1 Rp59.000
13 61642-90L00-000
SUB: 61642-93902-000		 HOLDER, FASTENER LEVER 1 Rp69.500
14 09161-04012-000 WASHER 1 Rp15.500
15 09385-04003-000 PIN, SNAP 1 Rp18.000
16 01550-06167-000 BOLT 1 Rp16.500
17 08310-00067-000 NUT 1 Rp13.000
18 DISCONTINUE
SUB: 61138-94410-000		 COVER, WATER 1 -
19 DISCONTINUE
SUB: 09354-53103-600		 HOSE 1 - L:600!15
20 09409-06314-5PK CAP (BLACK) 1 Rp3.500
21 DISCONTINUE
SUB: 13632-93900-000		 GROMMET 1 - DT9.9/15
22 13632-93950-000 GROMMET 1 Rp24.000 DT9.9K/15K
23 DISCONTINUE
SUB: 09250-21003-000		 PLUG 1 - MANUAL STARTER START SW HOLE
24 39669-94400-000 PLUG, LOWER COVER 1 Rp37.500 MANUAL STARTER
25 DISCONTINUE
SUB: 23131-93900-000		 BOOT, CLUTCH ROD 1 -
26 36612-93900-000 GROMMET, REMOCON HARNESS 1 Rp48.000 OPT
27 09407-19401-000
SUB: 09407-25402-000		 CLAMP 1 Rp31.500 OPT
