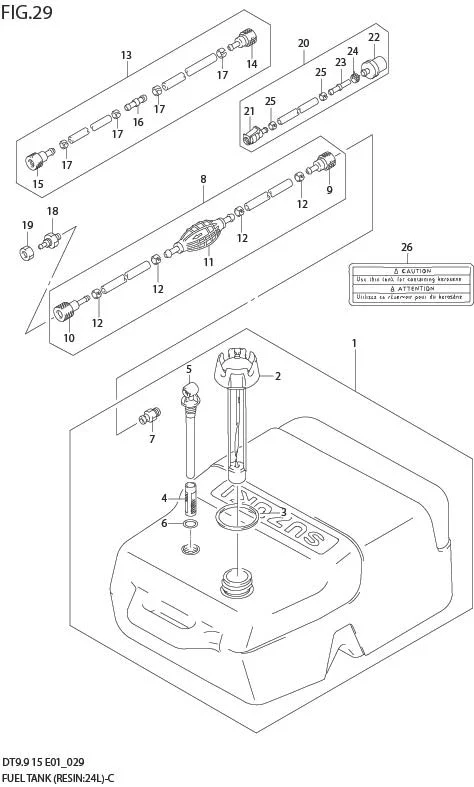

FIG 29 FUEL TANK (RESIN:25L)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65000-94L10-000 SUB: 65000-95D01-000	TANK ASSY, FUEL (25L)	1	Rp1.476.000
2	DISCONTINUE SUB: 65520-95D00-000	?CAP ASSY, FUEL TANK	1	-
3	65561-95D00-000	?GASKET, TANK CAP	1	Rp18.000
4	65831-95D00-000	?FILTER, OUTLET	1	Rp90.000
5	DISCONTINUE SUB: 65890-95D00-000	?OUTLET ASSY	1	-
6	DISCONTINUE SUB: 65892-95D00-000	?O RING, FUEL OUTLET	1	-
7	65740-95D01-000	?PLUG, FUEL CONNECTOR	1	Rp375.500
8	65700-87D85-000 SUB: 65700-87D80-000	HOSE, FUEL	1	Rp2.020.000	?65700-87D19
9	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000
10	65750-98506-000 SUB: 65750-98505-000	?SOCKET, FUEL HOSE	1	Rp238.500
11	65770-87DL1-000 SUB: 65770-95541-000	?PUMP, SQUEEZE	1	Rp296.500
12	DISCONTINUE SUB: 65781-98500-000	?CLIP	1	-
13	65700-96362-000	HOSE, FUEL	1	Rp734.500	FOR KEROSENE,E13 !65700-87D80
14	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE (IN)	1	Rp374.000
15	65750-98506-000 SUB: 65750-98505-000	?SOCKET, FUEL HOSE (OUT)	1	Rp238.500
16	DISCONTINUE SUB: 65779-93900-000	?UNION, FUEL HOSE	1	-
17	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
18-1	65720-985L1-000 SUB: 65720-98520-000	PLUG, FUEL CONNECTOR	1	Rp367.500
18-2	65720-94403-000	PLUG, FUEL CONNECTOR (PLASTIC)	1	Rp194.000	E36,KEROSENE
19	09140-10032-000	NUT	1	Rp15.000
20	65700-94433-000	HOSE, FUEL (KELOSENE)	1	Rp723.500	E36,L:3100
21	65750-94404-000	?SOCKET	1	Rp166.000	E36
22	DISCONTINUE SUB: 65830-95500-000	?FILTER	1	-	E36
23-1	65842-94400-000	?TUBE	1	Rp32.500	E36
23-2	65842-94401-000	?TUBE	1	Rp106.000	E36 MODEL:08%
24	09401-11423-000	?CLIP	1	Rp19.500	E36
25	DISCONTINUE SUB: 65781-98500-000	?CLIP	2	-	E36
26	65318-93910-000	MARK, KEROSENE CAUTION	1	Rp28.000
