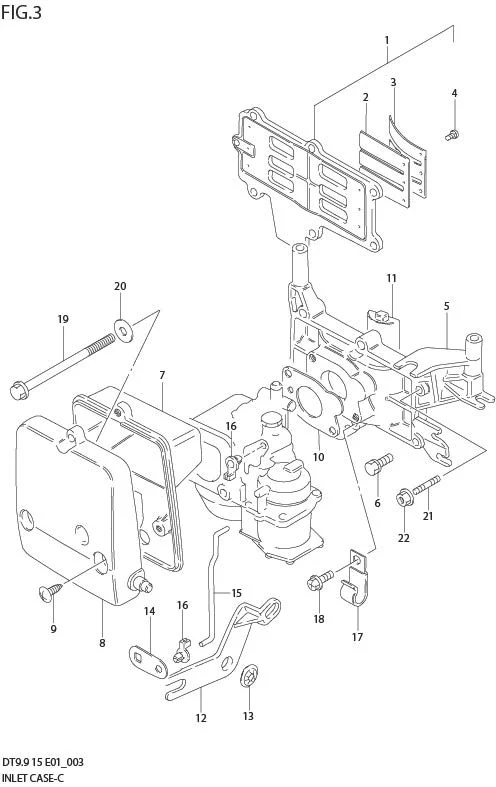

FIG 3 INLET CASE

FIG 3 INLET CASE
No No. Part Description Qty Price Per Pcs Remarks
1-2 13150-93910-000 REED VALVE ASSY 1 Rp635.000 DT9.9
1-3 13150-90L00-000
SUB: 13150-93900-000		 REED VALVE ASSY 1 Rp968.000 DT15/15K
1-1 DISCONTINUE
SUB: 13150-93920-000		 REED VALVE ASSY 1 - DT9.9K
2 13153-90L00-000
SUB: 13153-65010-000		 ?REED VALVE 2 Rp98.000
3-1 13152-93920-000 ?STOPPER, REED VALVE 2 Rp21.000 DT9.9K
3-2 13152-90L10-000
SUB: 13152-93910-000		 ?STOPPER, REED VALVE 2 Rp48.500 DT9.9
3-3 13152-90L00-000
SUB: 13152-93900-000		 ?STOPPER, REED VALVE 2 Rp26.000 DT15/15K
4 02112-3306A-000
SUB: 02112-33063-000		 ?SCREW 6 Rp11.500
5-1 12481-93902-0ED CASE, INLET (GRAY) 1 Rp797.500
5-2 DISCONTINUE
SUB: 12481-93902-0EP		 CASE, INLET (BLACK) 1 - MODEL:02%
6 01550-06357-000 BOLT 4 Rp18.500
7 13811-93950-000 CASE, SILENCER 1 Rp99.000
8 13812-93900-000 COVER, SILENCER 1 Rp93.000
9 03241-0516A-000 SCREW 3 Rp17.000
10 13125-91D00-000 GASKET, CARBURETOR 1 Rp28.500
11 12485-93900-000 PIECE, INLET CASE 1 Rp33.500
12 13633-93900-000 LEVER, CHOKE 1 Rp35.500 DT9.9/15
13 09148-06008-000 NUT 1 Rp9.000 DT9.9/15
14 DISCONTINUE
SUB: 13633-93950-000		 LEVER, CHOKE 1 - DT9.9K/15K
15 DISCONTINUE
SUB: 13634-93952-000		 ROD, CHOKE LEVER 1 - DT9.9K/15K
16 13635-93950-000 CONNECTOR, CHOKE 2 Rp16.000 DT9.9K/15K
17 09403-09316-000 CLAMP 1 Rp9.000 DT9.9K/15K
18 02162-05127-000 BOLT 1 Rp12.500 DT9.9K/15K
19 01550-06907-000 BOLT 2 Rp28.000
20 09160-06066-000 WASHER 2 Rp13.500
21 DISCONTINUE
SUB: 01421-06307-000		 BOLT, STUD 2 -
22 08316-10067-000 NUT 2 Rp15.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
