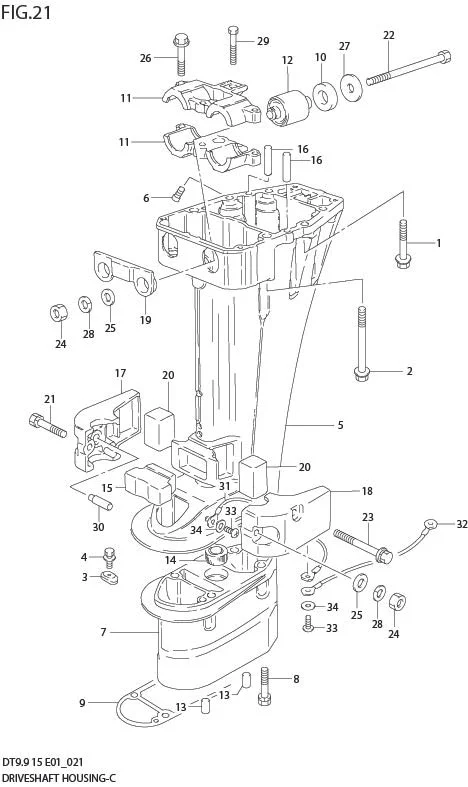

FIG 21 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09118-08168-000 SUB: 29118-93J00-000	BOLT (8X50)	4	Rp50.500	?09118-08106
2	09118-08172-000 SUB: 09118-08098-000	BOLT (8X85)	2	Rp53.000
3	55321-90L00-000 SUB: 41811-98500-000	ZINC, PROTECTION	2	Rp92.000	TYPE:S/L
4	09116-06094-000	BOLT (6X15)	2	Rp23.500	TYPE:S/L
5-1	DISCONTINUE SUB: 52111-93951-0ED	HOUSING, DRIVE SHAFT	1	-	TYPE:S
5-2	DISCONTINUE SUB: 52111-93952-0EP	HOUSING, DRIVE SHAFT	1	-	TYPE:S MODEL:02%
5-3	DISCONTINUE SUB: 52111-93943-0ED	HOUSING, DRIVE SHAFT	1	-	TYPE:L/X
5-4	52111-93943-0EP	HOUSING, DRIVE SHAFT	1	Rp2.237.500	TYPE:L/X MODEL:02%05
5-5	52111-93944-0EP	HOUSING, DRIVE SHAFT	1	Rp2.237.500	TYPE:L/X DT9.9:510681% DT9.9K:511328% DT15:512723% DT15K:510031%
6	DISCONTINUE SUB: 52117-94400-000	TUBE, WATER INSP	1	-
7-1	52131-93903-0ED SUB: 52131-93902-0ED	CASE, EXTENSION	1	Rp1.065.000	TYPE:X
7-2	52131-93903-0EP	CASE, EXTENSION	1	Rp1.660.000	TYPE:X MODEL:02%
8	09117-08047-000	BOLT (8X30)	4	Rp57.500	TYPE:X
9	55113-93E00-000	GASKET, GEAR CASE	1	Rp141.000	DT9.9:%781784, DT9.9K:%781406, DT15:%788694, DT15K:%780070
10	54121-92D00-000	CUSHION, UPPER MOUNT	2	Rp40.000
11	54137-90L00-000 SUB: 54137-93903-000	COVER, UPPER MOUNT	2	Rp301.000
12	54130-93901-000	MOUNT, UPPER	2	Rp311.000
13	DISCONTINUE SUB: 09202-06023-000	KNOCK PIN	2	-	TYPE:X
14	DISCONTINUE SUB: 09320-13022-000	BUSH	1	-	TYPE:X
15	DISCONTINUE SUB: 54151-93900-000	MOUNT, LOWER THRUST	1	-
16	DISCONTINUE SUB: 09202-06019-000	KNOCK PIN	2	-
17-1	DISCONTINUE SUB: 54211-93910-0ED	COVER, LOWER MOUNT STBD	1	-
17-2	54211-90L10-0EP SUB: 54211-93911-0EP	COVER, LOWER MOUNT STBD	1	Rp432.500	MODEL:02%
18-1	DISCONTINUE SUB: 54221-93910-0ED	COVER, LOWER MOUNT PORT	1	-
18-2	54221-90L10-0EP SUB: 54221-93911-0EP	COVER, LOWER MOUNT PORT	1	Rp451.500	MODEL:02%
19	54125-93901-000	MOUNT, UPPER THRUST REVERSE	1	Rp75.000
20	54167-93900-000	MOUNT, LOWER SIDE	2	Rp89.500
21-1	09116-08128-000 SUB: 09100-08220-000	BOLT (8X40)	1	Rp124.500
21-2	09116-08128-000	BOLT (8X40)	1	Rp124.500	MODEL:03%
22	09100-08209-000	BOLT (8X90)	2	Rp65.500
23	09118-08170-000 SUB: 09118-08137-000	BOLT (8X70)	2	Rp45.000
24	09140-08023-XC0	NUT	3	Rp22.500	?09140-08016
25	09160-08082-000	WASHER (8.5X16X1.2)	3	Rp13.000
26	29103-93J20-000	BOLT (8X45)	2	Rp37.000	?09103-08111
27	DISCONTINUE SUB: 09160-08084-000	STOPPER (8X30X2.5)	2	-
28	29162-93J10-000	LOCK WASHER	3	Rp16.000	?09162-08007
29	29117-93J00-000	BOLT (6X45)	1	Rp27.000	?09117-06035
30	54213-93901-000	PIN	2	Rp86.000
31	36894-95201-000	LEAD, MOUNT TO HOUSING (L:165)	1	Rp114.000
32	36894-87D00-000	LEAD, SWIVEL TO MOUNT (L:165)	1	Rp105.000
33	09125-05050-000 SUB: 29125-93J10-000	SCREW, LEAD	2	Rp15.000	?09125-05050
34	DISCONTINUE SUB: 09161-05114-000	WASHER, LEAD	2	-	%MODEL:01
