DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

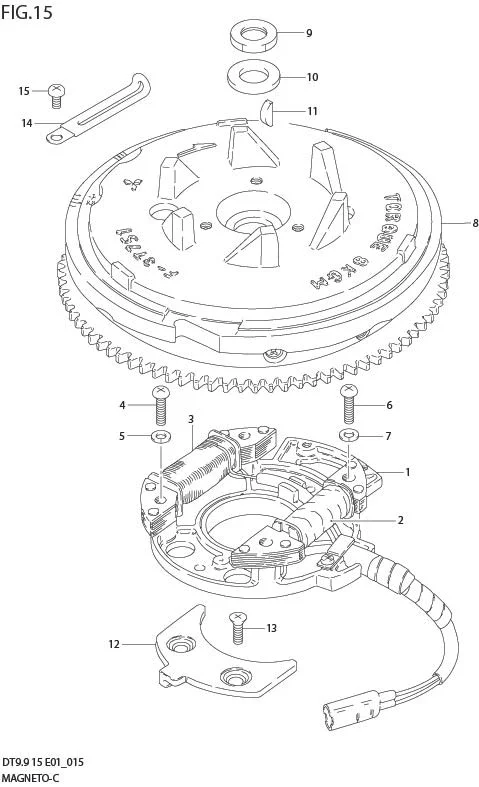

FIG 15 MAGNETO

FIG 15 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32101-90L30-000 SUB: 32101-93930-000	STATOR ASSY	1	Rp5.199.500
2	32140-93900-000	COIL, PRIMARY	1	Rp704.000
3	32200-93910-000	COIL SET, LIGHTING	1	Rp674.000
4	02112-06257-000	?SCREW	2	Rp13.500
5	08321-01067-000	?LOCK WASHER	2	Rp13.500
6	02112-06257-000	SCREW	2	Rp13.500
7	08321-01067-000	LOCK WASHER	2	Rp13.500
8	32102-93921-000	FLYWHEEL	1	Rp7.611.000
9	09140-14008-000	NUT	1	Rp20.500
10	DISCONTINUE SUB: 09160-14052-000	WASHER (14X27X4)	1	-
11	09420-04008-000	KEY	1	Rp23.000
12	DISCONTINUE SUB: 32390-93910-000	RETAINER, MAGNETO STATOR	2	-
13-1	02122-06167-000	SCREW	4	Rp10.500
13-2	09126-06022-000	SCREW	4	Rp21.000	MODEL:08%
14	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
15	DISCONTINUE SUB: 02112-06127-000	SCREW	1	-	MANUAL STARTER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
