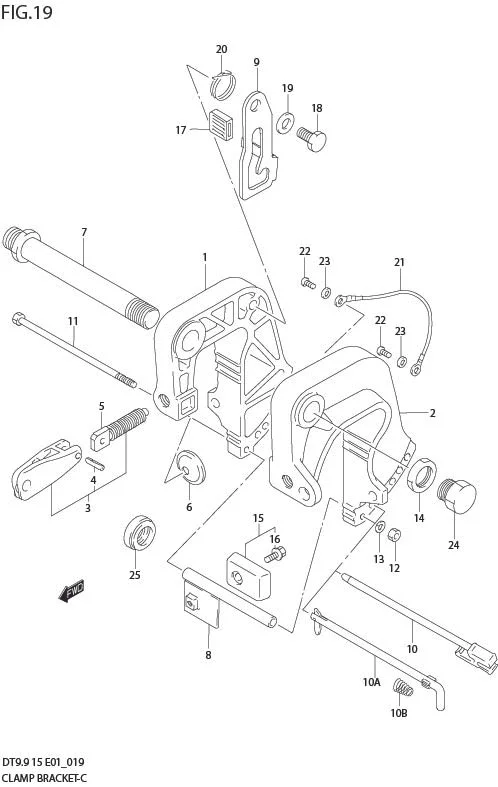

FIG 19 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-89E62-0EP SUB: 41111-89E60-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp1.536.500	MODEL:02
1-1	41111-89E62-0ED SUB: 41111-89E60-0ED	BRACKET, CLAMP STBD (GRAY)	1	Rp1.515.000
1-4	41111-89E62-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp1.536.500	DT9.9:510681%
1-3	41111-89E62-0EP SUB: 41111-89E61-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp1.536.500	DT9.9:372395%
2-1	DISCONTINUE SUB: 41121-89E50-0ED	BRACKET, CLAMP PORT (GRAY)	1	-
2-2	41121-89E53-0EP SUB: 41121-89E50-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp1.411.000	MODEL:02
2-3	41121-89E53-0EP SUB: 41121-89E51-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp1.411.000	DT9.9:372395%
2-4	41121-89E53-0EP SUB: 41121-89E52-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp1.411.000	MODEL:05
2-5	41121-89E53-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp1.411.000	DT9.9:510681%
3	41210-89E11-000 SUB: 41210-89E00-000	SCREW ASSY, CLAMP	2	Rp307.500	OPT
4	09205M06016-000 SUB: 09205-06007-000	?PIN, SPRING	2	Rp4.500
5-1	41211-93900-000	SCREW, CLAMP	2	Rp169.000	OPT
5-2	41211-93920-000	SCREW, CLAMP	2	Rp142.500	OPT
6	41213-94J01-000 SUB: 41213-98100-000	PLATE, CLAMP	2	Rp38.000
7	41130-90L00-000 SUB: 41130-89E20-000	SHAFT, CLAMP BRACKET	1	Rp1.155.500
8	41310-93901-000	ROD, CLAMP BRACKET LOWER	1	Rp177.000
9	41200-91L00-000 SUB: 41200-95D00-000	ARM, TILT LOCK	1	Rp382.500
10B	09441-17001-000	SPRING, TILT LOCK PIN	1	Rp14.500	DT9.9:372395%
10A	45420-93E02-000	PIN, TILT LOCK	1	Rp535.000	DT9.9:372395%
10	45420-92DL0-000 SUB: 45420-92D02-000	PIN, TILT LOCK	1	Rp66.500
11	09100-06177-000 SUB: 09100-06125-000	BOLT (6X140)	1	Rp38.500
12	29141-93J00-000	NUT	1	Rp18.500	?09140-06020
13	29162-93J00-000	WASHER, LOCK	1	Rp11.500	?09162-06006
14	09159-22006-000	NUT	1	Rp186.500
15	55320-95311-000	ZINC SET, PROTECTION	1	Rp119.500
16	09116-06094-000	?BOLT (6X15)	1	Rp19.000
17	41225-94400-000	RUBBER, TILT LOCK ARM	1	Rp30.000
18	09111-10067-000 SUB: 09111-10032-000	BOLT	2	Rp52.500
19	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2.0)	1	Rp12.000	?09160-10082
20	09448-29015-000	SPRING	1	Rp37.500
21	36894-95201-000	LEAD (CLAMP TO SWIVEL)	1	Rp110.500
22	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	2	Rp14.000	?09125-05050
23	DISCONTINUE SUB: 09161-05114-000	WASHER	2	-	%MODEL:01
24-1	41141-94301-000	ATTACHMENT, STEERING CABLE	1	Rp538.500	OPT,L:40
24-2	41141-89E00-000	ATTACHMENT, STEERING CABLE	1	Rp983.500	OPT,L:81
25	DISCONTINUE SUB: 41161-94400-000	SEAL, STEERING CABLE	1	-	OPT
