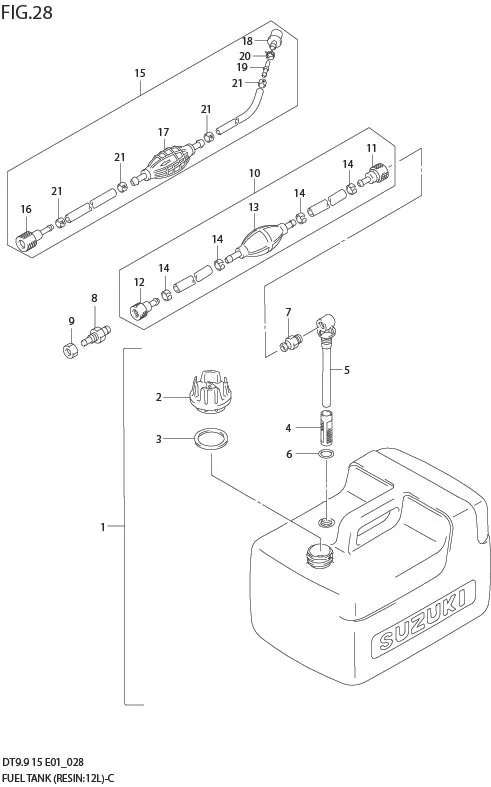

FIG 28 FUEL TANK (RESIN:12L)

FIG 28 FUEL TANK (RESIN:12L)
No No. Part Description Qty Price Per Pcs Remarks
1 65000-99100-000 TANK ASSY, FUEL (12L) 1 Rp1.475.500
2 65520-99100-000 ?CAP ASSY, FUEL TANK 1 Rp381.500
3 65561-95D00-000 ?GASKET, TANK CAP 1 Rp18.000
4 65831-95D00-000 ?FILTER, OUTLET 1 Rp90.000
5 DISCONTINUE
SUB: 65890-99100-000		 ?OUTLET 1 -
6 DISCONTINUE
SUB: 65892-95D00-000		 ?O RING 1 -
7 DISCONTINUE
SUB: 65740-99100-000		 ?PLUG, FUEL CONNECTOR 1 -
8 65720-95512-000
SUB: 65720-95511-000		 PLUG, FUEL (GASOLINE) 1 Rp441.500 DT9.9K/15K
9 DISCONTINUE
SUB: 09140-12038-000		 NUT 1 - DT9.9K/15K
10 65700-95D08-000
SUB: 65700-95D02-000		 HOSE, FUEL (GASOLINE) 1 Rp1.162.000 E13
11 65750-98506-000
SUB: 65750-98505-000		 ?SOCKET, FUEL HOSE (IN) 1 Rp238.500
12 65750-95501-000
SUB: 65750-95500-000		 ?SOCKET, FUEL HOSE (OUT) 1 Rp374.000
13 65770-99J03-000
SUB: 65770-93904-000		 ?PUMP, SQUEEZE 1 Rp276.500
14 DISCONTINUE
SUB: 65781-98500-000		 ?CLIP 4 -
15 65700-94419-000
SUB: 65700-94414-000		 HOSE, FUEL (GASOLINE) 1 Rp737.500 E36
16 65750-95501-000
SUB: 65750-95500-000		 ?SOCKET 1 Rp374.000 E36
17 DISCONTINUE
SUB: 65770-95505-000		 ?PUMP, SQUEEZE 1 - E36
18 DISCONTINUE
SUB: 65830-95500-000		 ?FILTER 1 - E36
19-1 65842-94400-000 ?TUBE 1 Rp32.500 E36
19-2 65842-94401-000 ?TUBE 1 Rp106.000 E36 MODEL:08%
20 09401-11423-000 ?CLIP 1 Rp19.500 E36
21 DISCONTINUE
SUB: 65781-98500-000		 ?CLIP 4 - E36

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
