DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASEFIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBEFIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMPFIG 10 STARTERFIG 11 THROTTLE CONTROLFIG 12 CLUTCHFIG 13 TRANSMISSIONFIG 14 STARTING MOTORFIG 15 MAGNETOFIG 16 IGNITION COILFIG 17 HARNESSFIG 18 ELECTRICALFIG 19 CLAMP BRACKETFIG 20 SWIVEL BRACKETFIG 21 DRIVE SHAFT HOUSINGFIG 22 GEAR CASEFIG 23 LOWER COVERFIG 24 ENGINE COVERFIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLEFIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTORFIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTSFIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINKFIG 38 OPT : GASKET SET

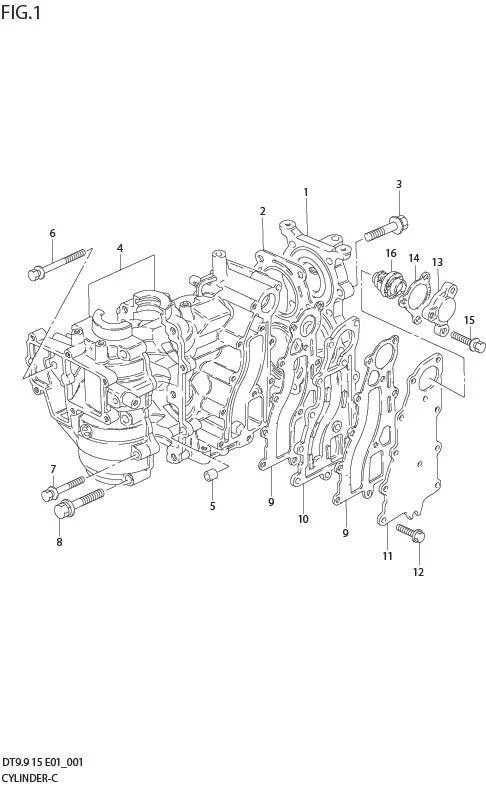

FIG 1 CYLINDER

FIG 1 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 11110-93910-0EP CYLINDER HEAD 1 Rp2.342.000 DT9.9/15 MODEL:02%
1-3 DISCONTINUE
SUB: 11110-93960-0ED		 CYLINDER HEAD 1 - DT9.9K/15K
1-4 11110-93960-0EP CYLINDER HEAD 1 Rp1.462.000 DT9.9K/15K MODEL:02%
1-1 DISCONTINUE
SUB: 11110-93910-0ED		 CYLINDER HEAD 1 - DT9.9/15
2 11141-93960-000
SUB: 11141-93950-000		 GASKET, CYLINDER HEAD 1 Rp193.000
3 01580-08407-000 BOLT 10 Rp24.000
4-1 11300-90L00-000
SUB: 11301-93910-0ED		 CYLINDER ASSY 1 Rp2.488.000
4-2 11301-93910-0EP CYLINDER ASSY 1 Rp7.033.000 MODEL:02%
5 04211M09109-000
SUB: 04211-09109-000		 ?KNOCK PIN 2 Rp5.500
6 01560-06657-000 ?BOLT 2 Rp21.500
7 01560-06457-000 ?BOLT 2 Rp22.500
8 01560-08457-000 ?BOLT 6 Rp21.500
9 14151-93912-000 GASKET, EXHAUST COVER 2 Rp115.500
10 DISCONTINUE
SUB: 14131-93902-000		 PLATE, EXHAUST COVER 1 -
11-1 14141-93952-0ED COVER, EXHAUST 1 Rp1.095.500
11-2 14141-93952-0EP COVER, EXHAUST 1 Rp1.095.500 MODEL:02%
12 01550-06257-000
SUB: 01550B06257N000		 BOLT 9 Rp3.500
13-1 17681-93952-0ED COVER, THERMOSTAT 1 Rp189.500
13-2 DISCONTINUE
SUB: 17681-93952-0EP		 COVER, THERMOSTAT 1 - MODEL:02%
14 17685-91D00-000 GASKET, THERMOSTAT COVER 1 Rp30.000
15 01560-06357-000 BOLT 3 Rp19.000
16-1 17670-93964-000
SUB: 17670-93962-000		 THERMOSTAT (50áC) 1 Rp508.000 DT9.9/15
16-2 17670-94404-000
SUB: 17670-94402-000		 THERMOSTAT (60áC) 1 Rp520.000 DT9.9K/15K

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
