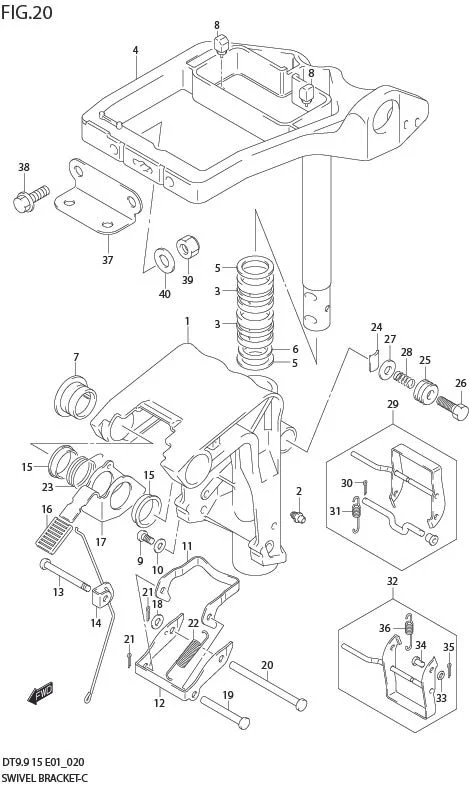

FIG 20 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	43111-93933-0EP	BRACKET, SWIVEL (BLACK)	1	Rp3.310.500	MODEL:02%
1-1	DISCONTINUE SUB: 43111-93931-0ED	BRACKET, SWIVEL (GRAY)	1	-
2	22511-99011-000	NIPPLE	3	Rp39.500
3	43711-99J00-000 SUB: 43711-93901-000	BUSH, STEERING	2	Rp95.000
4-1	43750-91D00-0ED SUB: 43750-93908-0ED	BRACKET, STEERING (GRAY)	1	Rp1.830.000
4-2	43750-91D00-0EP	BRACKET, STEERING (BLACK)	1	Rp3.921.000	MODEL:02%
5	09160-27013-000 SUB: 09160-27009-000	WASHER (27.5X47X2.0)	2	Rp28.500
6	09280-27004-000	O RING (D:3.1,ID:26.2)	1	Rp12.500
7	43211-87JL0-000 SUB: 43211-94401-000	BUSH, SWIVEL SHAFT	2	Rp213.000
8	43765-93900-000	CUSHION, COVER UNDER	2	Rp55.000
9	09125-06063-000	SCREW (6X10)	1	Rp15.000
10	09161-06120-000	GASKET	1	Rp10.500	%MODEL:00
11	45231-90L00-000 SUB: 45231-93903-000	ARM, REVERSE LOCK	1	Rp278.500
12	45241-93902-000	LINK, REVERSE LOCK ARM	1	Rp56.000
13	41225-94502-000	PIN, RELEASE ARM	1	Rp44.000
14	DISCONTINUE SUB: 45250-89E01-000	LINK, RELEASE	1	-
15	59315-94J00-000 SUB: 09306-22006-000	BUSH	2	Rp21.500
16	DISCONTINUE SUB: 45255-93001-000	RUBBER, RELEASE LEVER	1	-
17	DISCONTINUE SUB: 45261-94400-000	LEVER, RELEASE	1	-
18	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
19	DISCONTINUE SUB: 09200-05014-000	PIN	1	-
20	DISCONTINUE SUB: 09200-06061-000	PIN	1	-
21	09204-01002-000	PIN, COTTER	2	Rp13.000
22	45212-94J01-000 SUB: 45212-94J00-000	SPRING	2	Rp87.500
23	DISCONTINUE SUB: 09448-29018-000	SPRING, RELEASE LINK	1	-
24	43411-939L0-000 SUB: 43411-93900-000	ADJUSTER, STEERING	1	Rp22.000
25	43412-93901-000 SUB: 43412-93900-000	COVER, STEERING ADJUST	1	Rp30.000
26	09100-08232-000	BOLT (8X30)	1	Rp29.000
27	09160-08091-000	WASHER (8.5X16X1.2)	1	Rp11.000
28	29440-93J00-000	SPRING	1	Rp22.500	?09440-11022
29	45700-93E01-000 SUB: 45700-93912-000	DRIVE ASSY, SHALLOW	1	Rp589.000	!45700-93E00
30	09204-01002-000	?PIN	1	Rp13.000
31	09443-08031-000	?SPRING	1	Rp50.000
32	45700-93E01-000	DRIVE ASSY, SHALLOW	1	Rp589.000	DT9.9:151973% DT9.9K:151406% DT15:152925% DT15K:151121%
33	09160-06082-000	?WASHER (6.5X13X1.0)	2	Rp10.500
34	29201-93J00-000	?SHAFT	2	Rp26.500	?09200-06068
35	09204-01006-000	?PIN	2	Rp14.000
36	09443-08031-000	?SPRING	1	Rp50.000
37	DISCONTINUE SUB: 67110-99710-000	ATTACHMENT SET, STRG ROPE END	1	-	OPT
38	29116-93J10-000	?BOLT (8X35)	2	Rp29.500
39	DISCONTINUE SUB: 09159-08059-000	?NUT	2	-
40	09160-08082-000	?WASHER	2	Rp12.000
