DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

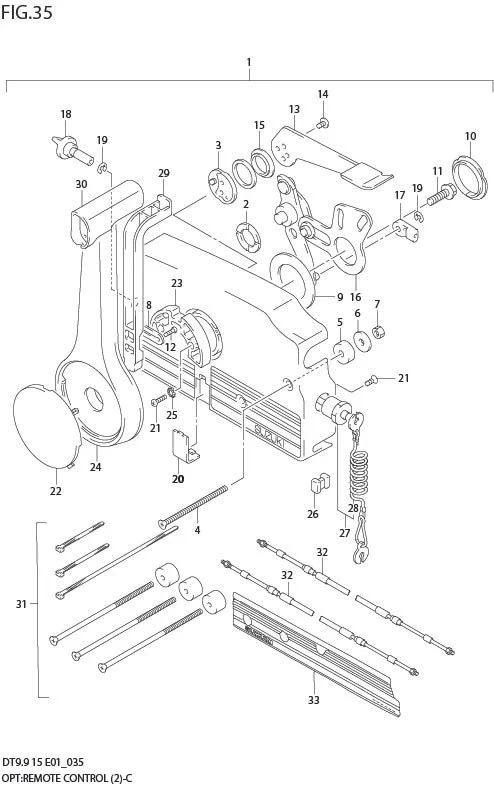

FIG 35 OPT : REMOTE CONTROL (2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-939B4-000 SUB: 67200-93991-0EP	REMOTE CONTROL ASSY (BLACK)	1	Rp3.089.500	MODEL:02,03
1-1	67200-939B4-000 SUB: 67200-93991-0ED	REMOTE CONTROL ASSY (GRAY)	1	Rp3.089.500
2	67232-95600-000	?BUSH	1	Rp44.000
3	67245-95600-000	?DRUM, FREE THROTTLE	1	Rp194.000
4	67296-95600-000	?SCREW	3	Rp47.000
5	67294-95600-000	?SPACER	3	Rp35.000
6	09160-06104-000	?WASHER	3	Rp18.000
7	09140-06020-000	?NUT	3	Rp13.500
8	67258-87D00-000	?BRACKET, NEUTRAL ARM	2	Rp30.000
9	67253-95600-000	?WASHER	1	Rp37.500
10	67252-95600-000	?BUSH	2	Rp37.500
11	09100-08232-000	?BOLT	1	Rp29.000
12	67296-94300-000	?SCREW	2	Rp10.500
13	67241-95680-000	?LEVER, FREE THROTTLE (GRAY)	1	Rp151.000
14	DISCONTINUE SUB: 09126-05003-000	?SCREW	2	-
15	67243-95600-000	?BUSH	1	Rp30.500
16	DISCONTINUE SUB: 67220-95620-000	?PLATE ASSY	1	-
17	67275-95600-000	?END, CABLE	2	Rp70.500
18	DISCONTINUE SUB: 67223-95600-000	?KNOB, BRAKE ADJ	1	-
19	67292-94300-000	?E RING	3	Rp11.000
20	67267-95610-000	?COVER, WIRE (BLACK)	1	Rp44.500
21	67296-95610-000	?SCREW	7	Rp23.500
22	67257-95610-000	?CAP, LEVER (BLACK)	1	Rp55.500
23	67256-95600-000	?HOLDER, NEUT LOCK	1	Rp80.500
24	67251-95680-000	?LEVER, HANDLE (GRAY)	1	Rp427.000
25	67297-95600-000	?WASHER	2	Rp23.500
26	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
27	37830-95D04-000 SUB: 37830-95D00-000	?SWITCH ASSY, EMERGENCY	1	Rp491.500
28	37823-92E02-000 SUB: 37823-92E00-000	??CAP & ROPE	1	Rp221.500
29	67255-95600-000	?ARM, NEUTRAL LOCK	1	Rp83.500
30	67261-95610-000	?GRIP	1	Rp144.500
31	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, REMO-CON KIT	1	Rp351.000
32-1	DISCONTINUE SUB: 67320-93J00-000	CABLE ASSY, REMOCON 8F (2.4M)	2	-
32-9	67320-93J80-000	CABLE ASSY, REMOCON 24F (7.3M)	2	Rp922.000
32-8	DISCONTINUE SUB: 67320-93J70-000	CABLE ASSY, REMOCON 22F (6.7M)	2	-
32-7	67320-93J60-000	CABLE ASSY, REMOCON 20F (6.1M)	2	Rp820.000
32-6	67320-93J50-000	CABLE ASSY, REMOCON 18F (5.5M)	2	Rp767.500
32-5	67320-93J40-000	CABLE ASSY, REMOCON 16F (4.9M)	2	Rp715.000
32-4	67320-93J30-000	CABLE ASSY, REMOCON 14F (4.3M)	2	Rp662.500
32-3	67320-93J20-000	CABLE ASSY, REMOCON 12F (3.7M)	2	Rp613.500
32-2	67320-93J10-000	CABLE ASSY, REMOCON 10F (3.1M)	2	Rp564.500
33	67282-95610-000	DECAL, REMOCON BOX PORT	1	Rp44.000	OPT,BLACK
