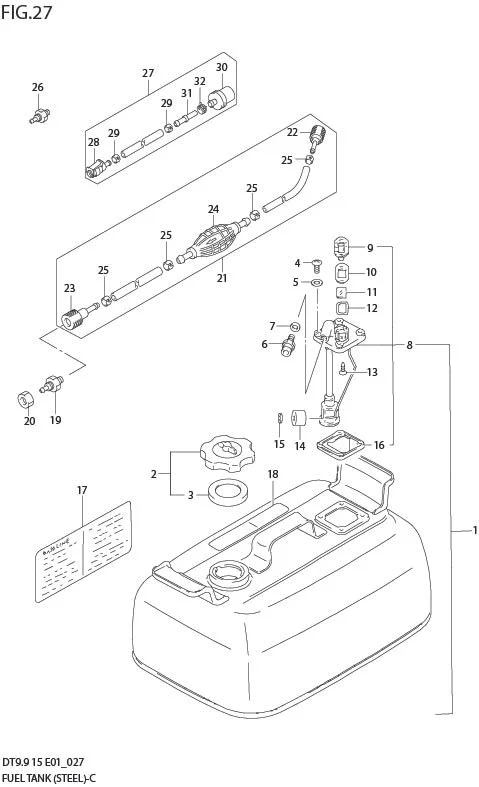

FIG 27 FUEL TANK (STEEL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65800-92824-000	TANK SET, FUEL (24L)	1	-	6.3 U.S.GAL,5.2 IMP.GAL
2	DISCONTINUE SUB: 65510-92D00-000	?CAP ASSY, SEPARATE TANK	1	-
3	65561-92D00-000	??GASKET, TANK CAP	1	Rp44.000
4	02142-0616A-000 SUB: 02142B06167N000	?SCREW	4	Rp3.000
5	09168-06026-000	?WASHER	4	Rp20.000
6	DISCONTINUE SUB: 65740-95500-000	?CONNECTOR, FUEL	1	-
7	09168-12015-XC0 SUB: 09168-12015-000	?GASKET, CONNECTOR	1	Rp30.000
8	DISCONTINUE SUB: 65850-92D01-000	?GAUGE ASSY, FUEL	1	-
9	65855-92D10-000	??COVER, GAUGE	1	Rp21.000
10	65854-92D20-000	??GASKET	1	Rp17.000
11	65853-92D00-000	??LENS	1	Rp16.500
12	65854-92D30-000	??GASKET, LENS	1	Rp17.000
13	DISCONTINUE SUB: 03222-04083-000	??SCREW	2	-
14	65864-92D00-000	??FLOAT	1	Rp35.500
15	DISCONTINUE SUB: 65866-92D00-000	??PUSH, NUT	1	-
16	65871-92D00-000	??GASKET, FUEL	1	Rp29.500
17	65316-93331-000	?MARK, FUEL CAUTION	1	Rp44.000
18	65317-95260-000	?MARK, FUEL CAPACITY	1	Rp31.500
19	65720-985L1-000 SUB: 65720-98520-000	CONNECTOR, FUEL	1	Rp367.500	OD:13
20	09140-10032-000	NUT	1	Rp15.000
21	65700-87D85-000 SUB: 65700-87D80-000	HOSE, FUEL	1	Rp2.020.000	?65700-87D19
22	65750-95501-000 SUB: 65750-95500-000	?CONNECTOR, FUEL (IN)	1	Rp374.000
23	65750-98506-000 SUB: 65750-98505-000	?CONNECTOR, FUEL (OUT)	1	Rp238.500
24	65770-87DL1-000 SUB: 65770-95541-000	?PUMP, SQUEEZE	1	Rp296.500
25	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
26	65720-94403-000	CONNECTOR, FUEL HOSE (PLASTIC)	1	Rp194.000	FOR KEROSENE,E36
27	65700-94433-000	HOSE, FUEL	1	Rp723.500	FOR KEROSENE,E36
28	65750-94404-000	?SOCKET, FUEL HOSE	1	Rp166.000	FOR KEROSENE,E36
29	DISCONTINUE SUB: 65781-98500-000	?CLIP	2	-	FOR KEROSENE,E36
30	DISCONTINUE SUB: 65830-95500-000	?FILTER	1	-	FOR KEROSENE,E36
31-1	65842-94400-000	?TUBE	1	Rp32.500	FOR KEROSENE,E36
31-2	65842-94401-000	?TUBE	1	Rp106.000	FOR KEROSENE,E36
32	09401-10409-000 SUB: 09401-11407-000	?CLIP	1	Rp7.500	FOR KEROSENE,E36
