  5. FIG 26 HANDLE

DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASEFIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBEFIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMPFIG 10 STARTERFIG 11 THROTTLE CONTROLFIG 12 CLUTCHFIG 13 TRANSMISSIONFIG 14 STARTING MOTORFIG 15 MAGNETOFIG 16 IGNITION COILFIG 17 HARNESSFIG 18 ELECTRICALFIG 19 CLAMP BRACKETFIG 20 SWIVEL BRACKETFIG 21 DRIVE SHAFT HOUSINGFIG 22 GEAR CASEFIG 23 LOWER COVERFIG 24 ENGINE COVERFIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLEFIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTORFIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTSFIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINKFIG 38 OPT : GASKET SET

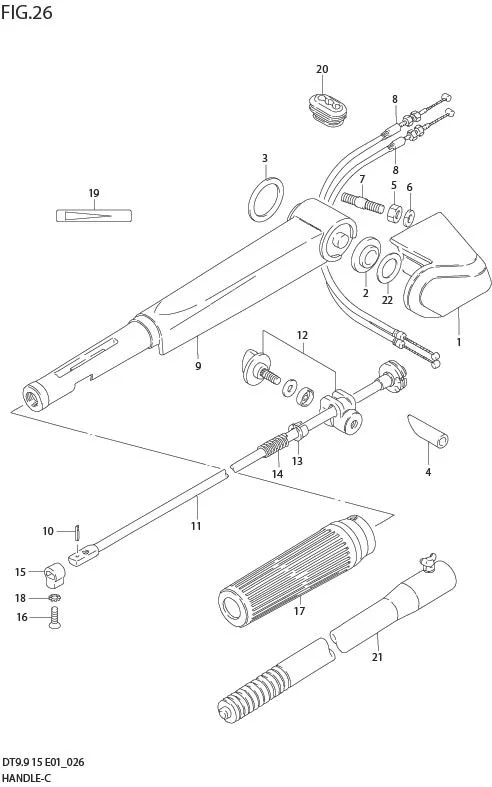

FIG 26 HANDLE

FIG 26 HANDLE
No No. Part Description Qty Price Per Pcs Remarks
1-2 63121-93901-0EP COVER, TILLER HANDLE (BLACK) 1 Rp1.101.000 MODEL:02%
1-1 DISCONTINUE
SUB: 63121-93900-0ED		 COVER, TILLER HANDLE (GRAY) 1 -
2 63114-95L00-000
SUB: 63114-94300-000		 SPACER, HANDLE COVER 1 Rp80.000
3 63115-96310-000 SPACER 1 Rp57.000
4 DISCONTINUE
SUB: 63117-96301-000		 COVER, STOP SWITCH WIRE 1 - DT9.9K/15K
5 09140-08023-XC0 NUT 2 Rp22.500 ?09140-08016
6 29162-93J10-000 LOCK WASHER 2 Rp16.000 ?09162-08007
7 09108-08077-000 STUD BOLT 2 Rp39.000
8 63610-91L00-000
SUB: 63610-96321-000		 CABLE ASSY, THROTTLE 2 Rp135.000
9-1 63111-96332-0ED
SUB: 63111-96331-0ED		 HANDLE, TILLER (GRAY) 1 Rp672.000
9-2 63111-96332-0EP HANDLE, TILLER (BLACK) 1 Rp1.222.000 MODEL:02%
10 63227-93200-000 PIN, HANDLE ROD 1 Rp21.000
11-2 63220-94304-000 ROD, HANDLE 1 Rp419.000 DT9.9K/15K
11-1 63220-96302-000 ROD, HANDLE 1 Rp254.500 DT9.9/15
12 63240-96300-000 ADJUSTER SET, HANDLE GRIP 1 Rp139.500
13 63225-93200-000 BUSH, HANDLE ROD 1 Rp37.000
14 09440-12027-000 SPRING 1 Rp13.000
15 63223-92D00-000 STOPPER, HANDLE ROD 1 Rp37.500
16 09126-06015-000 SCREW 1 Rp19.000
17-1 63210-93E20-000 GRIP, HANDLE 1 Rp391.500 DT9.9K/15K
17-2 63210-93E30-000 GRIP, HANDLE 1 Rp293.000 DT9.9/15
18 09163-06001-000 LOCK WASHER 1 Rp11.000
19 63215-93110-000 MARK, HANDLE 1 Rp24.500
20 DISCONTINUE
SUB: 63625-93900-000		 GROMMET, THROTTLE CABLE 1 -
21 DISCONTINUE
SUB: 63300-93E00-000		 BAR ASSY, EXTENSION 1 - OPT
22-1 63118-94300-000 SHIM (0.3) 1 Rp33.500
22-2 DISCONTINUE
SUB: 63118-94310-000		 SHIM (0.5) 1 - OPT
