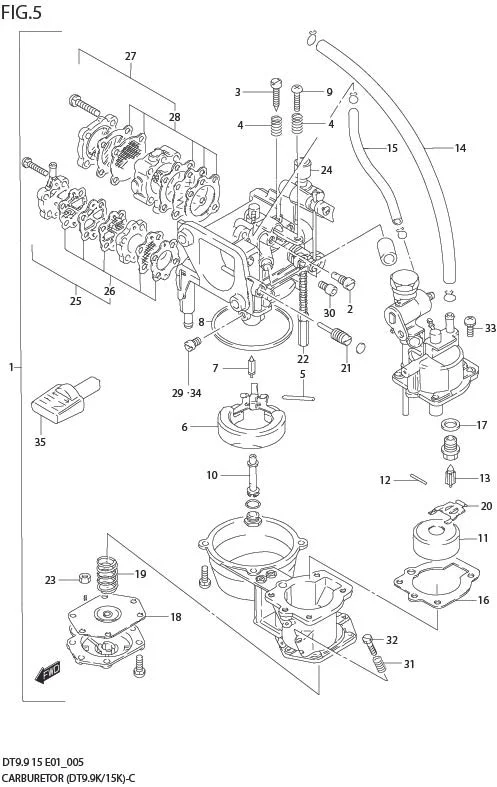

FIG 5 CARBURETOR (DT9.9K/15K)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	13200-939B1-000	CARBURETOR ASSY	1	Rp5.191.000	DT9.9K E36
1-1	DISCONTINUE SUB: 13200-939H1-000	CARBURETOR ASSY	1	-	DT9.9K E13
1-3	13200-939C1-000	CARBURETOR ASSY	1	Rp5.191.000	DT15K E36
2-1	DISCONTINUE SUB: 09492-55009-000	?JET, PILOT (#55)	1	-	DT9.9K E13
2-2	DISCONTINUE SUB: 09492-40010-000	?JET, PILOT (#40)	1	-	DT9.9K E36
2-3	09492-50008-000	?JET, PILOT (#50)	1	Rp61.000	DT15K E36
3	13661-93900-000	?SCREW, PILOT	1	Rp62.500
4	DISCONTINUE SUB: 13268-96111-000	?SPRING, THROTTLE	2	-
5	DISCONTINUE SUB: 13254-98100-000	?PIN, FLOAT	1	-
6	13250-98110-000	?FLOAT	1	Rp152.000
7	13371-98100-000	?NEEDLE	1	Rp177.500
8	13251-98100-000	?GASKET, FLOAT CHAMBER	1	Rp36.500
9	DISCONTINUE SUB: 13267-93900-000	?SCREW, THROTTLE STOP	1	-
10	DISCONTINUE SUB: 13235-93950-000	?NOZZLE	1	-
11	DISCONTINUE SUB: 13270-94350-000	?FLOAT	1	-
12	DISCONTINUE SUB: 13254-98410-000	?PIN	1	-
13	DISCONTINUE SUB: 13370-94350-000	?VALVE ASSY, NEEDLE	1	-
14	DISCONTINUE SUB: 09355-45855-600	?HOSE	1	-
15	DISCONTINUE SUB: 13652-93950-000	?HOSE	1	-
16	DISCONTINUE SUB: 13265-93950-000	?GASKET	1	-
17	13392-58600-000	?PACKING	1	Rp13.000
18	13450-93950-000	?MEMBRANE ASSY	1	Rp219.500
19	DISCONTINUE SUB: 13441-94350-000	?SPRING	1	-
20	DISCONTINUE SUB: 13282-94350-000	?ARM	1	-
21	DISCONTINUE SUB: 13443-94350-000	?VALVE ASSY	1	-
22	13599-95211-000	?NUT	1	Rp123.500
23	13599-95210-000	?NUT	1	Rp38.500
24	DISCONTINUE SUB: 13521-93910-000	?RING	1	-
25	15100-93951-000	?PUMP ASSY, FUEL	1	Rp693.500	FOR GASOLINE
26	15170-93951-000	??DIAPHRAGM SET	1	Rp219.000	FOR GASOLINE
27	15100-93912-000 SUB: 15100-93911-000	?PUMP ASSY, FUEL	1	Rp674.500	FOR KEROSENE
28	15170-93911-000	??DIAPHRAGM SET	1	Rp201.000	FOR KEROSENE
29-1	09491-20025-000	?JET, MAIN (#102.5)	1	Rp101.500	DT9.9K E13
29-2	DISCONTINUE SUB: 09491-75008-000	?JET, MAIN (#75)	1	-	DT9.9K E36
29-3	09491-20019-000	?JET, MAIN (#100)	1	Rp77.500	DT15K E36
30-1	DISCONTINUE SUB: 09493-32003-000	?JET, AIR (#1.6)	1	-	DT9.9K E13
30-2	DISCONTINUE SUB: 09493-30004-000	?JET, AIR (#1.5)	1	-	DT9.9K E36
30-3	DISCONTINUE SUB: 09493-32003-000	?JET, AIR (#1.6)	1	-	DT15K E36
31	DISCONTINUE SUB: 13268-96111-000	?SPRING	2	-
32	DISCONTINUE SUB: 13616-93900-000	?ADJUSTER	1	-
33	DISCONTINUE SUB: 13249-93900-000	?SCREW	8	-
34-1	09491-21019-000	JET, MAIN (#107.5)	1	Rp96.500	OPT DT9.9
34-2	09491-97004-000	JET, MAIN (#97.5)	1	Rp155.000	OPT DT9.9
34-3	DISCONTINUE SUB: 09491-80009-000	JET, MAIN (#80)	1	-	OPT DT9.9
34-4	09491-70012-000	JET, MAIN (#70)	1	Rp89.500	OPT DT9.9
34-5	09491-65005-000	JET, MAIN (#65)	1	Rp44.000	OPT DT9.9
34-6	09491-25014-000	JET, MAIN (#125)	1	Rp98.500	OPT DT15K
34-7	09491-23012-000 SUB: 09491B23012N000	JET, MAIN (#115)	1	Rp18.000	OPT DT15K
34-8	09491-21023-000	JET, MAIN (#105)	1	Rp64.000	OPT DT15K
34-9	09491-95008-000	JET, MAIN (#95)	1	Rp90.000	OPT DT15K
34-10	DISCONTINUE SUB: 09491-90011-000	JET, MAIN (#90)	1	-	OPT DT15K
35	DISCONTINUE SUB: 13631-93960-000	KNOB, CHOKE LEVER	1	-
