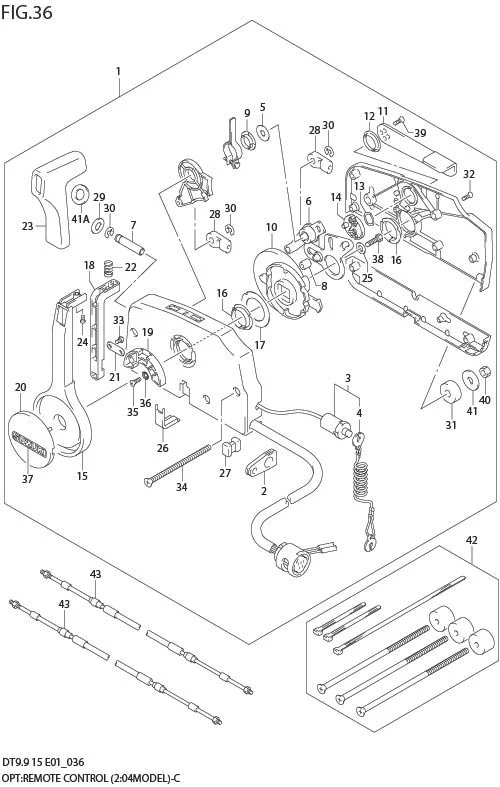

FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-939B4-000 SUB: 67200-939B2-000	REMOTE CONTROL ASSY	1	Rp3.089.500
2	36628-92E00-000	?GROMMET, WIRE HARNESS	1	Rp42.000
3	37830-95D04-000 SUB: 37830-95D02-000	?SWITCH ASSY, EMERGENCY & STOP	1	Rp491.500
4	37823-92E02-000 SUB: 37823-92E01-000	??PLATE, LOCK	1	Rp221.500
5	67212-95600-000	?WASHER	1	Rp25.500
6	DISCONTINUE SUB: 67220-95620-000	?PLATE ASSY	1	-
7	67223-99E10-000	?KNOB, BRAKE ADJUST	1	Rp59.000
8	67229-95600-000	?ROLLER	1	Rp54.500
9	67232-95600-000	?BUSH	1	Rp44.000
10	DISCONTINUE SUB: 67238-87D00-000	?GEAR, DRIVE	1	-
11	67241-99E10-000	?LEVER, FREE THROTTLE	1	Rp177.000
12	67243-95600-000	?BUSH	1	Rp30.500
13	67244-95600-000	?WAVE WASHER	1	Rp27.500
14	67245-95600-000	?DRUM, FREE THROTTLE	1	Rp194.000
15	67251-99E10-000	?LEVER, HANDLE	1	Rp617.000
16	67252-95600-000	?BUSH	1	Rp37.500
17	67253-95600-000	?WASHER	1	Rp37.500
18	67255-99E00-000	?ARM, LOCK	1	Rp143.000
19	67256-95600-000	?HOLDER, NEUTRAL LOCK	1	Rp80.500
20	67257-99E00-000	?CAP, LEVER	1	Rp77.000
21	67258-99E00-000	?BRACKET	1	Rp31.000
22	67259-87D00-000	?SPRING, NEUTRAL ARM	1	Rp45.500
23	67261-99E00-000	?GRIP	1	Rp354.000
24	67296-94310-000	?SCREW	1	Rp14.500	?67262-95600
25	67264-95600-000	?WASHER	1	Rp22.000
26	67267-95610-000	?COVER, WIRE	1	Rp44.500
27	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
28	67275-95600-000	?END, CABLE	2	Rp70.500
29	67288-92E00-000	?WASHER, BRAKE ADJ KNOB	1	Rp24.500	?67288-99E00
30	67292-94300-000	?E RING	3	Rp11.000
31	67294-95600-000	?SPACER	3	Rp35.000
32	67296-90J00-000	?SCREW, REAR COVER	5	Rp17.000
33	67296-94300-000	?SCREW	2	Rp10.500
34	67296-95600-000	?SCREW	3	Rp47.000
35	67296-95610-000	?SCREW	2	Rp23.500
36	67297-95600-000	?WASHER	2	Rp23.500
37	68165-16B01-13L SUB: 68165-16B00-13L	?EMBLEM, SUZUKI	1	Rp47.500
38	09100-08232-000	?BOLT (8X30)	1	Rp29.000
39	DISCONTINUE SUB: 09126-05003-000	?SCREW (5X12)	2	-
40	09140-06020-000	?NUT	3	Rp13.500
41	09160-06104-000	?WASHER (6.5X24X2.0)	3	Rp18.000
41A	37859-90J00-000	?SPACER	1	Rp26.500
42	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, REMO-CON KIT	1	Rp351.000
43-1	DISCONTINUE SUB: 67320-93J00-000	CABLE ASSY, REMOCON 8F (2.4M)	2	-
43-2	67320-93J10-000	CABLE ASSY, REMOCON 10F (3.1M)	2	Rp564.500
43-3	67320-93J20-000	CABLE ASSY, REMOCON 12F (3.7M)	2	Rp613.500
43-4	67320-93J30-000	CABLE ASSY, REMOCON 14F (4.3M)	2	Rp662.500
43-5	67320-93J40-000	CABLE ASSY, REMOCON 16F (4.9M)	2	Rp715.000
43-6	67320-93J50-000	CABLE ASSY, REMOCON 18F (5.5M)	2	Rp767.500
43-7	67320-93J60-000	CABLE ASSY, REMOCON 20F (6.1M)	2	Rp820.000
43-8	DISCONTINUE SUB: 67320-93J70-000	CABLE ASSY, REMOCON 22F (6.7M)	2	-
43-9	67320-93J80-000	CABLE ASSY, REMOCON 24F (7.3M)	2	Rp922.000
