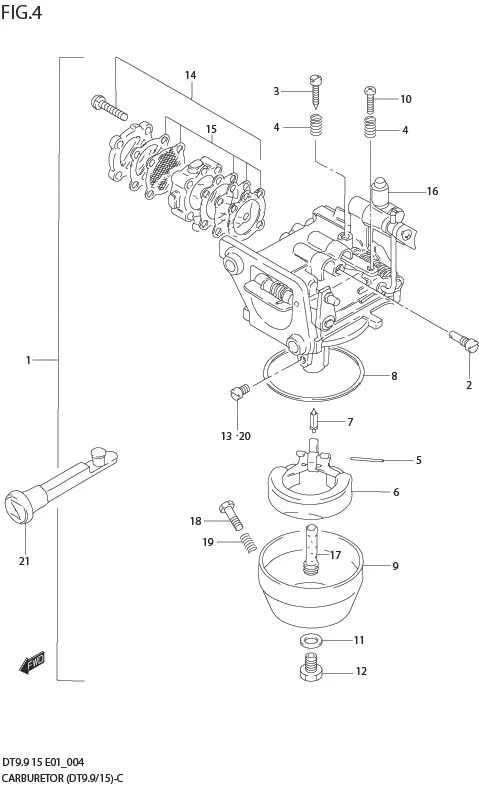

FIG 4 CARBURETOR (DT9.9/15)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	13200-91D22-000 SUB: 13200-91D21-000	CARBURETOR ASSY	1	Rp2.163.000	DT15
1-1	13200-939D1-000	CARBURETOR ASSY	1	Rp1.885.000	DT9.9
2-1	09492-50008-000	?JET, PILOT (#50)	1	Rp59.500	DT9.9
2-2	09492-57003-000	?JET, PILOT (#57.5)	1	Rp72.000	DT15
3	13661-93900-000	?SCREW, PILOT	1	Rp61.000
4	DISCONTINUE SUB: 13268-96111-000	?SPRING, THROTTLE	2	-
5	DISCONTINUE SUB: 13254-98100-000	?PIN, FLOAT	1	-
6	13250-98110-000	?FLOAT	1	Rp132.000
7	13371-98100-000	?NEEDLE	1	Rp177.500
8	13251-98100-000	?GASKET, FLOAT CHAMBER	1	Rp34.500
9	DISCONTINUE SUB: 13245-98110-000	?CHAMBER, FLOAT	1	-
10	DISCONTINUE SUB: 13267-93900-000	?SCREW, THROTTLE STOP	1	-
11	DISCONTINUE SUB: 13343-98100-000	?GASKET	1	-
12	13613-98100-000	?BOLT	1	Rp34.000
13-2	09491-25014-000	?JET, MAIN (#125)	1	Rp94.500	DT15
13-1	09491-22013-000	?JET, MAIN (#110)	1	Rp25.000	DT9.9
14	15100-93912-000 SUB: 15100-93911-000	?PUMP ASSY, SET	1	Rp674.500
15	15170-93911-000	??DIAPHRAGM SET	1	Rp201.000
16	DISCONTINUE SUB: 13521-93910-000	?RING	1	-
17-1	13235-93940-000	?NOZZLE, MAIN	1	Rp244.500	DT9.9
17-2	13235-91D00-000	?NOZZLE, MAIN	1	Rp184.000	DT15
18	DISCONTINUE SUB: 13616-93900-000	?ADJUSTER	1	-
19	DISCONTINUE SUB: 13268-96111-000	?SPRING	1	-
20-1	09491-23012-000 SUB: 09491B23012N000	JET, MAIN (#115)	1	Rp18.000	OPT DT9.9
20-2	09491-20019-000	JET, MAIN (#100)	1	Rp77.500	OPT DT9.9
20-3	09491-95008-000	JET, MAIN (#95)	1	Rp90.000	OPT DT9.9
20-4	09491-26016-000	JET, MAIN (#130)	1	Rp113.000	OPT DT15
20-5	DISCONTINUE SUB: 09491-24026-000	JET, MAIN (#120)	1	-	OPT DT15
20-6	09491-23012-000 SUB: 09491B23012N000	JET, MAIN (#115)	1	Rp18.000	OPT DT15
20-7	09491-22011-000	JET, MAIN (#112.5)	1	Rp53.000	OPT DT15
21	13631-93910-000	KNOB, CHOKE LEVER	1	Rp51.000
