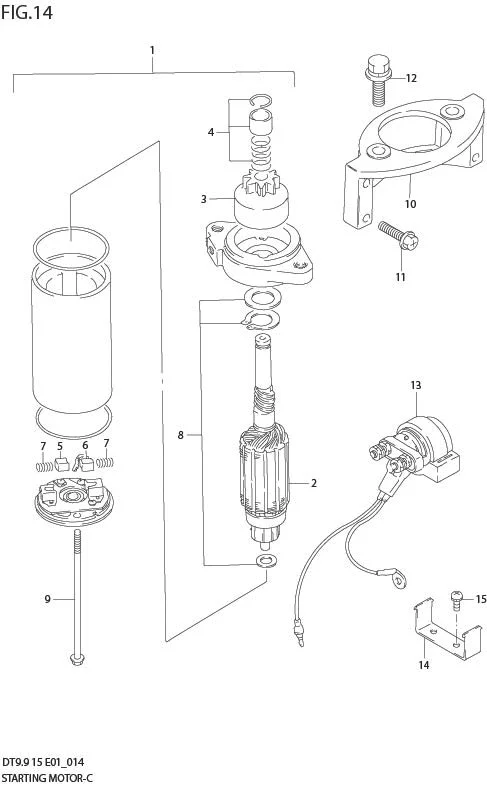

FIG 14 STARTING MOTOR

FIG 14 STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-89E01-000	MOTOR, STARTING	1	Rp7.172.500
2	31310-92D10-000	?ARMATURE, STARTER	1	Rp3.431.000
3	31320-89E00-000	?PINION ASSY	1	Rp1.957.500
4	31312-92D10-000	?STOPPER SET, PINION	1	Rp138.000
5	31131-89E00-000	?BRUSH (+)	1	Rp83.000
6	31132-89E00-000	?BRUSH (-)	1	Rp83.000
7	31135-92D10-000	?SPRING	2	Rp63.500
8	31360-92D10-000	?WASHER KIT	1	Rp65.000
9	31281-92D10-000	?BOLT, STARTER HOUSING	2	Rp101.500
10-1	31911-93902-0ED	BRACKET, STARTER (GRAY)	1	Rp242.500
10-2	31911-93902-0EP	BRACKET, STARTER (BLACK)	1	Rp238.000	MODEL:02%
11	02162-06257-000	BOLT	4	Rp9.500
12	01580-08257-000	BOLT	2	Rp20.000
13	31800-94401-000	RELAY ASSY, STARTING MOTOR	1	Rp1.008.500
14	31805-95501-000	BRACKET, STARTING MOTOR RELAY	1	Rp33.000
15	02112-35127-000 SUB: 02112B35127N000	SCREW	2	Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
