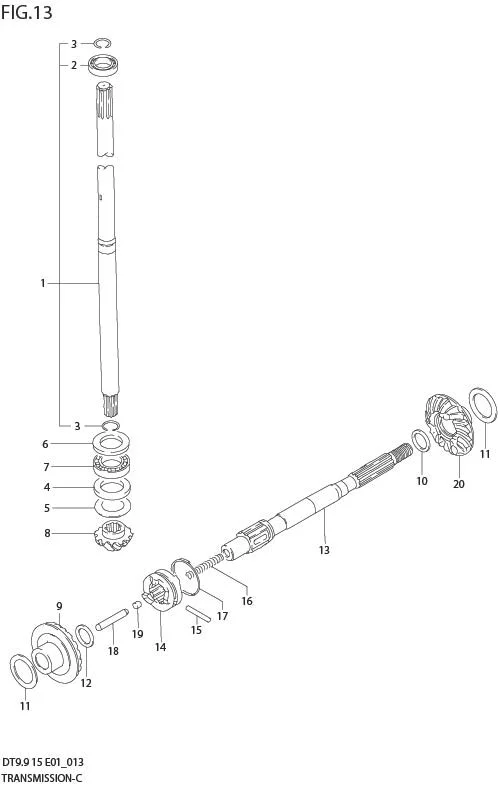

FIG 13 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1-2	57100-90L00-000 SUB: 57100-93902-000	SHAFT ASSY, DRIVE (L)	1	Rp1.834.500
1-1	57100-90L10-000 SUB: 57100-93912-000	SHAFT ASSY, DRIVE (S)	1	Rp1.047.500
1-3	57100-90L20-000 SUB: 57100-93922-000	SHAFT ASSY, DRIVE (X)	1	Rp1.341.500
2	08110-60020-000 SUB: 08110B60020N000	?BEARING	1	Rp43.000
3	09380-15001-000	?CIRCLIP	2	Rp13.000
4	09160-20027-000	WASHER (20X35X2.75)	1	Rp51.500
5-7	09160-20044-000	SHIM (T:1.3)	1	Rp23.000
5-6	DISCONTINUE SUB: 09160-20043-000	SHIM (T:1.2)	1	-
5-5	09160-20042-000	SHIM (T:1.1)	1	Rp22.500
5-4	09181-20251-000	SHIM (T:1.0)	1	Rp20.000
5-3	09181-20248-000	SHIM (T:0.9)	1	Rp18.000
5-2	09181-20246-000	SHIM (T:0.8)	1	Rp18.000
5-1	09181-20244-000	SHIM (T:0.7)	1	Rp21.500
6	09160-21009-000	WASHER (21X35X2.75)	1	Rp57.000
7	09263-20024-000	BEARING (20X35X4.5)	1	Rp328.000
8	57311-90L00-000 SUB: 57311-93910-000	PINION	1	Rp423.500
9	57510-90L00-000 SUB: 57510-93910-000	GEAR, FORWARD	1	Rp1.024.000
10-9	DISCONTINUE SUB: 09160-17028-000	WASHER (T:1.9)	1	-
10-8	09160-17042-000	WASHER (T:1.8)	1	Rp18.000
10-7	DISCONTINUE SUB: 09160-17027-000	WASHER (T:1.7)	1	-
10-6	09160-17041-000	WASHER (T:1.6)	1	Rp18.000
10-5	DISCONTINUE SUB: 09160-17026-000	WASHER (T:1.5)	1	-
10-3	DISCONTINUE SUB: 09160-17025-000	WASHER (T:1.3)	1	-
10-2	DISCONTINUE SUB: 09160-17039-000	WASHER (T:1.2)	1	-
10-1	09160-17024-000	WASHER (T:1.1)	1	Rp17.000
10-4	DISCONTINUE SUB: 09160-17040-000	WASHER (T:1.4)	1	-
11-7	DISCONTINUE SUB: 09181-25181-000	SHIM (T:1.3)	2	-
11-6	DISCONTINUE SUB: 09160-25042-000	SHIM (T:1.2)	2	-
11-5	DISCONTINUE SUB: 09160-25041-000	SHIM (T:1.1)	2	-
11-4	09160-25040-000	SHIM (T:1.0)	2	Rp19.500
11-3	09181-25164-000	SHIM (T:0.9)	2	Rp19.500
11-2	09181-25162-000	SHIM (T:0.8)	2	Rp17.000
11-1	09181-25160-000	SHIM (T:0.7)	2	Rp19.500
12	09181-15156-000	WASHER (T:1.5)	1	Rp18.500
13	57610-90L00-000 SUB: 57610-93901-000	SHAFT, PROPELLER	1	Rp1.232.000
14	57621-90L11-000 SUB: 57621-93902-000	SIFTER, CLUTCH DOG	1	Rp416.500
15	09202-04025-000 SUB: 09202-04015-000	PIN	1	Rp73.500
16	09440-05027-000	SPRING	1	Rp28.000
17	09440-32008-000	SPRING	1	Rp27.000
18	57631-93901-000	ROD, PUSH	1	Rp67.500
19	57632-97L00-000 SUB: 57632-98500-000	PIN	1	Rp46.000
20	57521-90L00-000 SUB: 57521-93910-000	GEAR, REVERSE	1	Rp932.000
