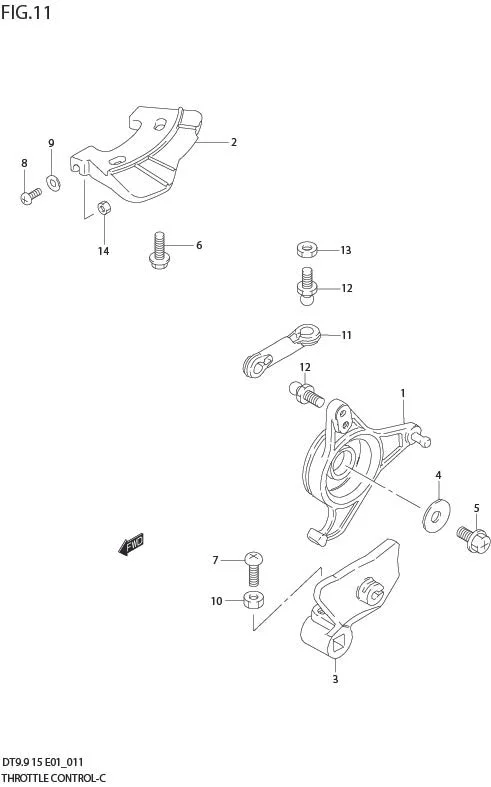

FIG 11 THROTTLE CONTROL

FIG 11 THROTTLE CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 19121-93901-000	LEVER, THROTTLE	1	-
2-1	DISCONTINUE SUB: 19141-93921-000	CAM, THROTTLE	1	-	DT9.9/15
2-2	DISCONTINUE SUB: 19141-93960-000	CAM, THROTTLE	1	-	DT9.9K/15K
3	DISCONTINUE SUB: 19811-93900-000	LIMITER, THROTTLE	1	-
4	09160-06066-000	WASHER (6.5X20X1.6)	1	Rp13.500
5	02162-06127-000	BOLT	1	Rp12.500
6	02162-05167-000	BOLT	2	Rp12.500
7	DISCONTINUE SUB: 02112-05167-000	SCREW	1	-
8	DISCONTINUE SUB: 02112-05207-000	SCREW	1	-	DT9.9
9	DISCONTINUE SUB: 08322-01057-000	WASHER	1	-	DT9.9
10	08310-00057-000	NUT	1	Rp13.500	DT9.9
11-1	19132-94501-000	CONNECTOR	1	Rp25.000	DT9.9/15
11-2	19132-95500-000	CONNECTOR	1	Rp26.500	DT9.9K/15K
12	09119-05010-000	BALL PIVOT	2	Rp40.500
13	08310-00057-000	NUT	1	Rp13.500
14	08310-00057-000	NUT	1	Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
