DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

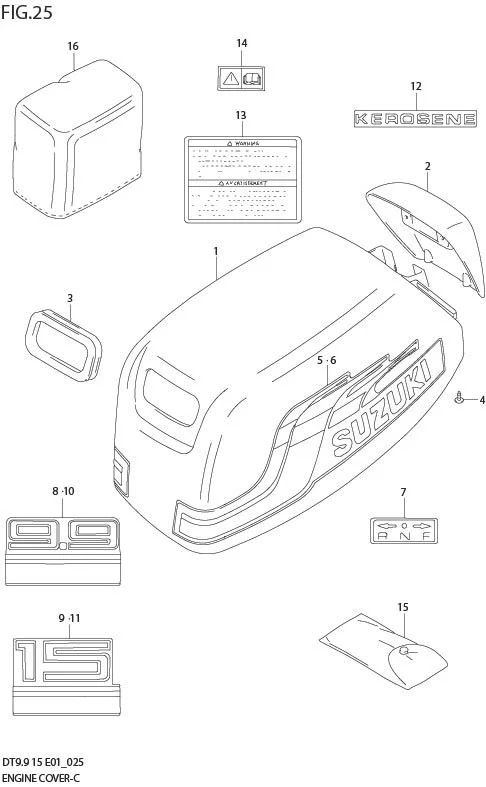

FIG 25 ENGINE COVER (MODEL:02%10)

FIG 25 ENGINE COVER (MODEL:02%10)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-93Y13-0EP SUB: 61400-93Y12-0EP	COVER SET, ENGINE (BLACK)	1	Rp6.201.500
2	DISCONTINUE SUB: 61431-93910-019	?HANDLE, TILT UP (BLACK)	1	-
3	61622-93E03-000 SUB: 61622-93E02-000	?SEAL, RECOIL STARTER	1	Rp121.500
4	03542-06169-000	?SCREW	4	Rp16.000
5	DISCONTINUE SUB: 61443-91D31-000	?STRIPE, ENGINE COVER STBD	1	-
6	DISCONTINUE SUB: 61453-91D31-000	?STRIPE, ENGINE COVER PORT	1	-
7	21131-96010-000	?MARK, CLUTCH SHIFT	1	Rp12.000	?21131-96003
8	61435-91D61-000	MARK, EMBLEM REAR	1	Rp144.000	DT9.9
9	61435-91D71-000	MARK, EMBLEM REAR	1	Rp144.000	DT15
10	61435-91D81-000	MARK, EMBLEM FRONT	1	Rp144.000	DT9.9
11	DISCONTINUE SUB: 61435-91D91-000	MARK, EMBLEM FRONT	1	-	DT15
12	61449-93921-000	MARK, KEROSENE	1	Rp81.500	DT9.9K/15K
13	DISCONTINUE SUB: 61581-98620-000	MARK, ENGINE COVER	1	-
14	DISCONTINUE SUB: 69712-93E10-000	LABEL, S.I.G.P	1	-
15	DISCONTINUE SUB: 09800-01008-000	TOOL ASSY	1	-
16	68110-96110-000	COVER, WEATHER	1	Rp364.500	OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
