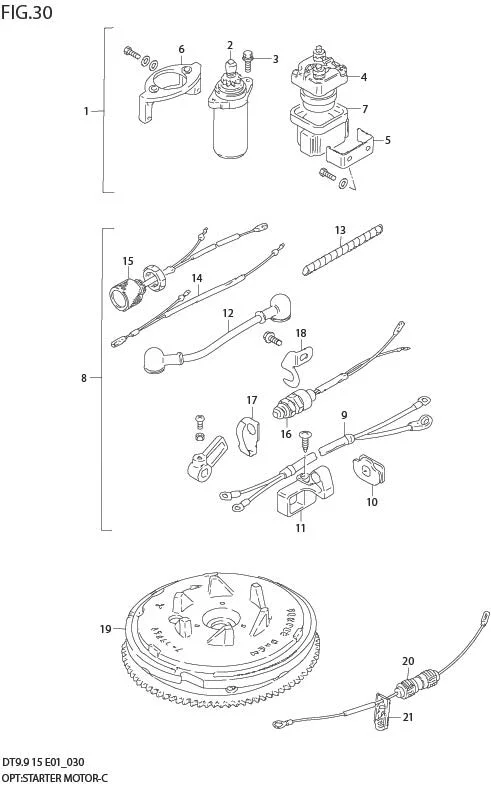

FIG 30 OPT : STARTER MOTOR

FIG 30 OPT : STARTER MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 31101-93920-0EP MOTOR SET, STARTER (BLACK) 1 Rp5.296.000 MODEL:02%
1-1 31101-93920-0ED MOTOR SET, STARTER (GRAY) 1 Rp5.097.000
2 31100-89E01-000 ?MOTOR, STARTER 1 Rp7.172.500
3 01580-08257-000 ?BOLT 2 Rp20.000
4 31800-94401-000 ?RELAY, STARTER 1 Rp1.008.500
5-1 DISCONTINUE
SUB: 38412-94500-000		 ?BRACKET, STARTER MOTOR RELAY 1 -
5-2 31805-95501-000 ?BRACKET, STARTER MOTOR RELAY 1 Rp33.000
6-1 31911-93902-0ED ?BRACKET, STARTER (GRAY) 1 Rp242.500
6-2 31911-93902-0EP ?BRACKET, STARTER (BLACK) 1 Rp238.000 MODEL:02%
7 DISCONTINUE
SUB: 38422-94520-000		 ?DAMPER, STARTER RELAY 1 -
8 33800-93903-000 SWITCH, STARTER/CABLE SET 1 Rp925.000
9 33810-92D00-000 ?CABLE, STARTER 1 Rp653.000
10 33811-96300-000 ?GROMMET 1 Rp18.500
11 33816-96300-000 ?CLAMP 1 Rp40.500
12 33820-93900-000 ?CABLE, PLUG TERM TO RELAY 1 Rp114.500
13 33833-91J00-000 ?TUBE, 250 1 Rp47.500 L:250!100 ?33833-95510
14 DISCONTINUE
SUB: 36610-93901-000		 ?WIRING HARNESS, ME 1 -
15 37160-93922-000 ?SWITCH, STARTER 1 Rp316.500
16 37721-96354-000 ?SWITCH, NEUTRAL 1 Rp283.500 ?37721-93902
17 DISCONTINUE
SUB: 37725-94302-000		 ?ACTUATOR, NEUTRAL SW 1 -
18 37726-94402-000 ?BRACKET, NEUTRAL SW 1 Rp37.500
19 32102-93921-000 FLYWHEEL, MAGNETO 1 Rp7.611.000
20 36740-93901-000 CASE ASSY, FUSE 1 Rp126.500
21 09481-20001-000 ?FUSE (20A) 1 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
