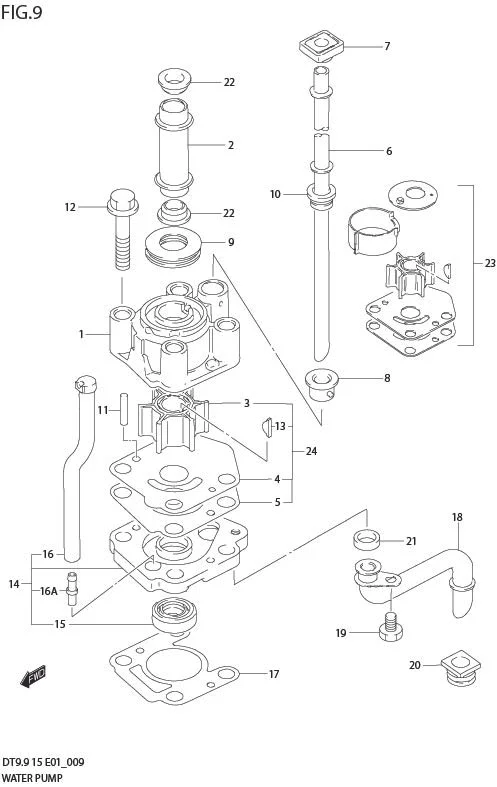

FIG 9 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	17410-939L0-000 SUB: 17410-93910-000	CASE, WATER PUMP	1	Rp703.500	E40
1-1	17411-93901-000	CASE, WATER PUMP	1	Rp707.000
2	17431-93921-000	TUBE, WATER PUMP SEAL (X)	1	Rp117.000
3	17461-939M0-000 SUB: 17461-93903-000	IMPELLER, WATER PUMP	1	Rp217.500
4-1	17471-93902-000	PANEL, PUMP CASE, UNDER	1	Rp45.000
4-2	17471-93912-000	PANEL, PUMP CASE, UNDER	1	Rp134.500	E40
5	17472-93911-000	GASKET, CASE UNDER	1	Rp34.000
6-1	17561-90L10-000 SUB: 17561-93912-000	TUBE, WATER (S)	1	Rp115.500
6-2	17561-90L00-000 SUB: 17561-93902-000	TUBE, WATER (L)	1	Rp161.000
6-3	DISCONTINUE SUB: 17561-93922-000	TUBE, WATER (X)	1	-
7	DISCONTINUE SUB: 17563-93900-000	RUBBER, WATER TUBE, UPPER	1	-
8	17564-93901-000 SUB: 17564-93900-000	BUSH, WATER PUMP CASE	1	Rp28.500
9	17417-93911-000 SUB: 17417-93910-000	GROMMET, PUMP CASE	1	Rp28.000
10	17563-94J00-000 SUB: 17562-93900-000	GROMMET	1	Rp12.500
11	09202-04014-000	PIN	2	Rp12.500
12	09116-08159-000 SUB: 09116-08117-000	BOLT (8X55)	4	Rp27.000
13	09420-03009-000 SUB: 09420-03005-000	KEY	1	Rp47.500	?17462-93990
14	17450-93960-000 SUB: 17450-93941-000	HOUSING, WATER INLET	1	Rp500.000
15	09289-12003-000	?OIL SEAL	1	Rp61.000
16	17453-93901-000	?DRAIN, WATER INLET	1	Rp35.000
16A	17454-94J00-000	?UNION, WATER INLET DRAIN	1	Rp21.000
17	17452-93910-000	GASKET, WATER INLET HSG	1	Rp34.000
18	17520-94J01-000 SUB: 17520-93902-000	TUBE, WATER INLET	1	Rp142.000
19	09100-06106-000	BOLT (6X9)	1	Rp13.000
20	59317-94J00-000 SUB: 09308-10010-000	GROMMET	1	Rp56.000
21	09308-10019-000 SUB: 09308-10011-000	GROMMET	1	Rp37.500
22	17432-93900-000	GROMMET (X)	2	Rp35.500	E13
23	17400-93913-000 SUB: 17400-93911-000	REPAIR KIT, WATER PUMP	1	Rp740.500	E40
24	17400-93951-000	REPAIR KIT, WATER PUMP	1	Rp227.000	OPT
