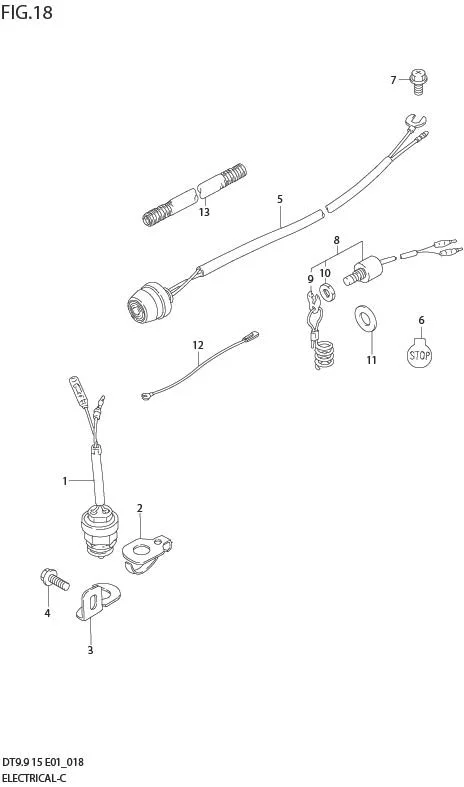

FIG 18 ELECTRICAL

FIG 18 ELECTRICAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37721-96354-000	SWITCH ASSY, NEUTRAL	1	Rp283.500	ELECTRIC STARTER
2	DISCONTINUE SUB: 37725-94302-000	ACTUATOR, NEUTRAL SWITCH	1	-	ELECTRIC STARTER
3	37726-94402-000	BRACKET, NEUTRAL SWITCH	1	Rp37.500	ELECTRIC STARTER
4	02162-06167-000	BOLT	1	Rp7.500	ELECTRIC STARTER
5	37800-93955-000 SUB: 37800-93954-000	SWITCH ASSY, STOP	1	Rp249.000	FOR KEROSENE
6	37835-95D00-000	LABEL, STOP	1	Rp13.000
7	02162-06127-000	BOLT, STOP SWITCH GROUND	1	Rp12.500
8	37830-89E04-000 SUB: 37830-89E02-000	SWITCH ASSY, EMERGENCY/STOP	1	Rp701.000
9	37823-92E02-000 SUB: 37823-92E01-000	?PLATE	1	Rp221.500
10	37826-92E00-000	?NUT	1	Rp65.500
11	09160-12067-000	WASHER	1	Rp19.000
12	DISCONTINUE SUB: 37801-98300-000	LEAD, EMERGENCY/STOP SWITCH	1	-
13	33446-98E20-000	TUBE, SWITCH WIRE	1	Rp31.000	L:500!100

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
