DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

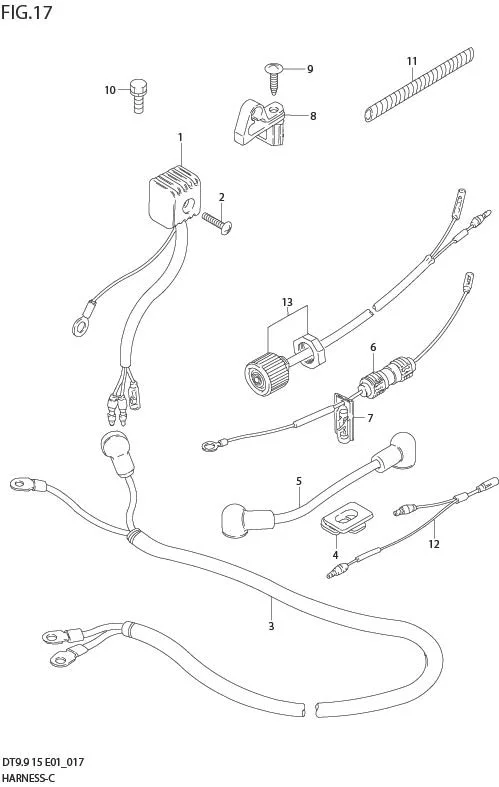

FIG 17 HARNESS

FIG 17 HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32800-95D02-000 SUB: 32800-95D01-000	RECTIFIER ASSY	1	Rp1.005.500
2	02142-05257-000	SCREW	1	Rp9.000
3	33810-92D00-000	CABLE ASSY, STARTER	1	Rp653.000
4	33811-96300-000	GROMMET, STARTER CABLE	1	Rp18.500
5	33820-93900-000	CABLE ASSY, PLUS TERM TO RELAY	1	Rp114.500
6	36740-93901-000	CASE ASSY, FUSE	1	Rp126.500
7	09481-20001-000	?FUSE (20A)	1	Rp16.500
8	33816-96300-000	CLAMP, CABLE	1	Rp40.500
9	DISCONTINUE SUB: 03241-0625A-000	SCREW	1	-
10	DISCONTINUE SUB: 01570-06167-000	BOLT	1	-	STARTER CABLE GND
11	33833-91J00-000	TUBE, TRIM RELAY CABLE	1	Rp47.500	L:250!100
12	DISCONTINUE SUB: 36610-93901-000	WIRE HARNESS	1	-
13	37160-93922-000	SWITCH ASSY, START	1	Rp316.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
