DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

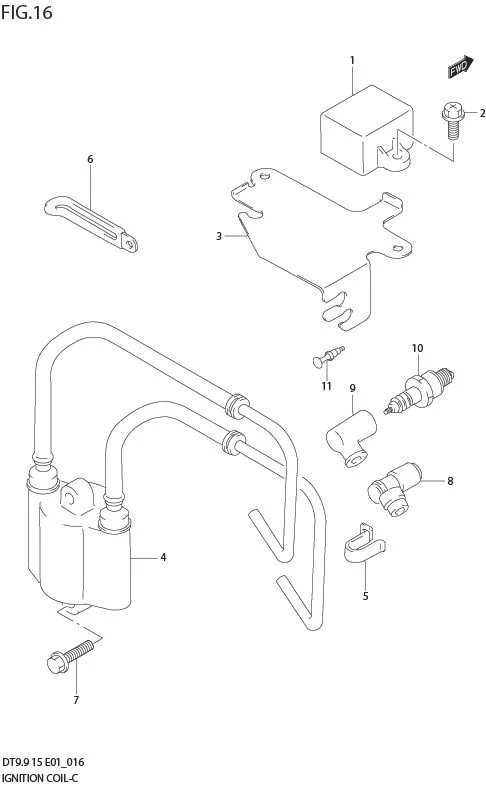

FIG 16 IGNITION COIL

FIG 16 IGNITION COIL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32900-93912-000 SUB: 32900-93911-000	CDI UNIT	1	Rp2.832.000
2	02162-06167-000	BOLT	2	Rp7.500
3	DISCONTINUE SUB: 32915-93900-000	BRACKET, CDI UNIT	1	-
4	33410-93902-000 SUB: 33410-93901-000	COIL, IGNITION	1	Rp1.359.000
5	09403-11307-000	CLAMP, HIGH TENSION CORD	1	Rp9.000
6	DISCONTINUE SUB: 29404-93J10-000	CLAMP, IGNITION COIL LEAD	1	-	?09404-06432
7	02162-06257-000	BOLT, IGNITION	2	Rp9.500
8	33510-98601-000	CAP, SPARK PLUG	2	Rp256.000
9	33510-95520-000	CAP, SPARK PLUG	2	Rp150.500	E13,E36
10-1	09482-00533-000	SPARK PLUG, BR7HS	2	Rp77.000	DT9.9/15
10-2	09482-00269-000 SUB: 09482-00532-000	SPARK PLUG, B7HS	2	Rp26.000	DT9.9/15:E40,E13
10-3	09482-00534-000	SPARK PLUG, B6HS	2	Rp37.500	DT9.9K/15K:E13,E36
11	36615-96300-000	TERMINAL, RESIN	1	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
