  5. FIG 2 CRANKSHAFT

DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASEFIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBEFIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMPFIG 10 STARTERFIG 11 THROTTLE CONTROLFIG 12 CLUTCHFIG 13 TRANSMISSIONFIG 14 STARTING MOTORFIG 15 MAGNETOFIG 16 IGNITION COILFIG 17 HARNESSFIG 18 ELECTRICALFIG 19 CLAMP BRACKETFIG 20 SWIVEL BRACKETFIG 21 DRIVE SHAFT HOUSINGFIG 22 GEAR CASEFIG 23 LOWER COVERFIG 24 ENGINE COVERFIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLEFIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTORFIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTSFIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINKFIG 38 OPT : GASKET SET

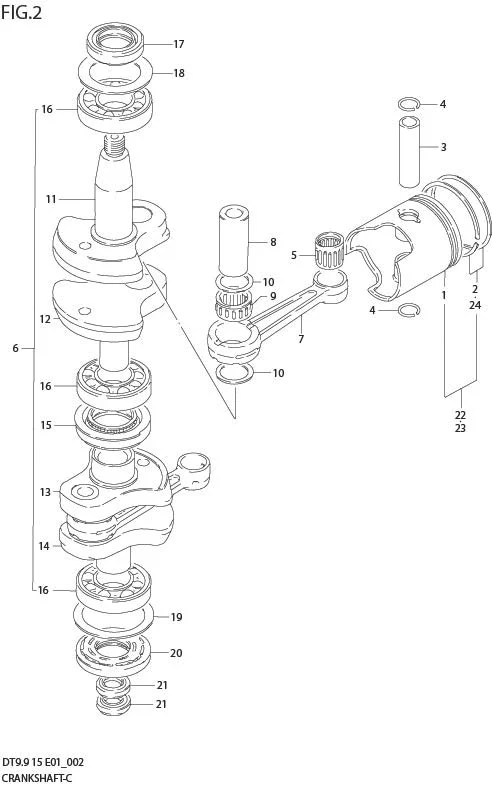

FIG 2 CRANKSHAFT

FIG 2 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12110-93120-000 PISTON 2 Rp505.000
2 12140-90L00-000
SUB: 12140-93140-000		 RING SET, PISTON 2 Rp444.000
3 12151-93100-000 PIN, PISTON 2 Rp75.000
4 09381-14001-000
SUB: 09381B14001N000		 SNAP RING 4 Rp2.500
5 09263-14022-000 BEARING (14X18X19.8) 2 Rp78.500
6 DISCONTINUE
SUB: 12200-93904-000		 CRANKSHAFT ASSY 1 -
7 12161-93902-000 ?ROD, CONNECTING 2 Rp407.500
8 12211-93900-000 ?PIN, CRANK 2 Rp165.500
9 09263-20051-000 ?BEARING 2 Rp215.500
10 09160-20052-000 ?THRUST WASHER 4 Rp27.500
11 12221-90L10-000
SUB: 12221-93902-000		 ?CRANKSHAFT, UPPER 1 Rp1.324.000
12 12231-90L10-000
SUB: 12231-93901-000		 ?WHEEL, MIDDLE UPPER 1 Rp922.500
13 12232-93901-000 ?WHEEL, MIDDLE UNDER 1 Rp1.675.500
14 12240-90L10-000
SUB: 12240-93900-000		 ?CRANKSHAFT, UNDER 1 Rp1.683.000
15 09289-30L01-000
SUB: 09289-30008-000		 ?OIL SEAL 1 Rp367.000
16 09262-25078-000 ?BEARING (25X52X15) 3 Rp269.000
17 09283-25035-000 OIL SEAL (25X40X7) 1 Rp38.000
18 09160-36003-000 THRUST WASHER 1 Rp16.000
19 09160-46004-000 THRUST WASHER 1 Rp48.500
20 09283-25075-000 OIL SEAL (24X52X7) 1 Rp79.000
21 09282-12L04-000
SUB: 09282-12010-000		 OIL SEAL (12.8X25X7) 2 Rp54.000
22 12100-93140-025 PISTON/RING SET (OS:0.25) 2 Rp883.000 OPT
23 12100-93140-050 PISTON/RING SET (OS:0.50) 2 Rp797.500 OPT
24 12140-93113-050 ?RING SET, PISTON (OS:0.50) 2 Rp423.500 OPT
