DT9.9-15-E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT9.9/15)FIG 5 CARBURETOR (DT9.9K/15K)FIG 6 EXHAUST TUBE FIG 7 FUEL PUMP (DT9.9/15)FIG 8 FUEL PUMP (DT9.9K/15K)FIG 9 WATER PUMP FIG 10 STARTER FIG 11 THROTTLE CONTROL FIG 12 CLUTCH FIG 13 TRANSMISSION FIG 14 STARTING MOTOR FIG 15 MAGNETO FIG 16 IGNITION COIL FIG 17 HARNESS FIG 18 ELECTRICAL FIG 19 CLAMP BRACKET FIG 20 SWIVEL BRACKET FIG 21 DRIVE SHAFT HOUSING FIG 22 GEAR CASE FIG 23 LOWER COVER FIG 24 ENGINE COVER FIG 25 ENGINE COVER (MODEL:02%10)FIG 25A ENGINE COVER (*)FIG 26 HANDLE FIG 27 FUEL TANK (STEEL)FIG 28 FUEL TANK (RESIN:12L)FIG 29 FUEL TANK (RESIN:25L)FIG 30 OPT : STARTER MOTOR FIG 31 OPT : ELECTRICAL (1)FIG 32 OPT : ELECTRICAL (2)FIG 33 OPT : REMOTE CONTROL PARTS FIG 34 OPT : REMOTE CONTROL (1)FIG 35 OPT : REMOTE CONTROL (2)FIG 36 OPT : REMOTE CONTROL (2)(MODEL:04%)FIG 37 OPT : DRAG LINK FIG 38 OPT : GASKET SET

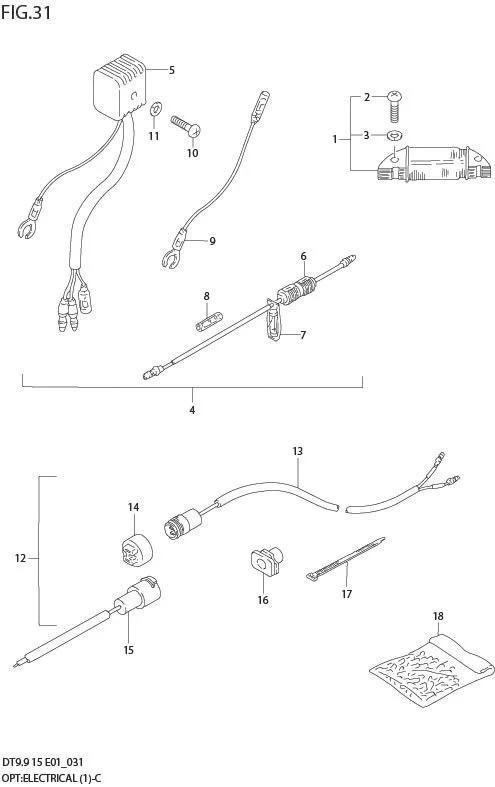

FIG 31 OPT : ELECTRICAL (1)

FIG 31 OPT : ELECTRICAL (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32200-93910-000	COIL SET, LIGHTING	1	Rp674.000
2	02112-06257-000	?SCREW	2	Rp13.500
3	08321-01067-000	?LOCK WASHER	2	Rp13.500
4	32801-96304-000	RECTIFIER SET	1	Rp611.500
5	32800-95D02-000 SUB: 32800-95D01-000	?RECTIFIER	1	Rp1.005.500
6	DISCONTINUE SUB: 36740-95253-000	?CASE, FUSE	1	-
7	09481-20001-000	??FUSE (20A)	1	Rp16.500
8	37132-93700-000	?CONNECTOR, LEAD	1	Rp17.000
9	DISCONTINUE SUB: 37801-98300-000	?LEAD, RECEPTACLE GROUND	1	-
10	02142-05257-000	?SCREW	1	Rp9.000
11	08321-0105B-000 SUB: 08321-01057-000	?WASHER	1	Rp13.500
12	39600-93910-000	RECEPTACLE SET	1	Rp563.500
13	39601-95D01-000 SUB: 39601-95D00-000	?RECEPTACLE ASSY, LIGHTING	1	Rp380.500
14	36634-93910-000	??CAP	1	Rp27.500
15	39602-93900-000	?PLUG ASSY, LIGHTING	1	Rp391.500
16	39603-94400-000	?GROMMET, RECEPTACLE	1	Rp54.500
17-1	36990-25G00-000 SUB: 09407-14403-000	?CLAMP (L:125)	1	Rp13.000
17-2	09407-19401-000 SUB: 09407-25402-000	?CLAMP (L:248)	1	Rp31.500
18	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
